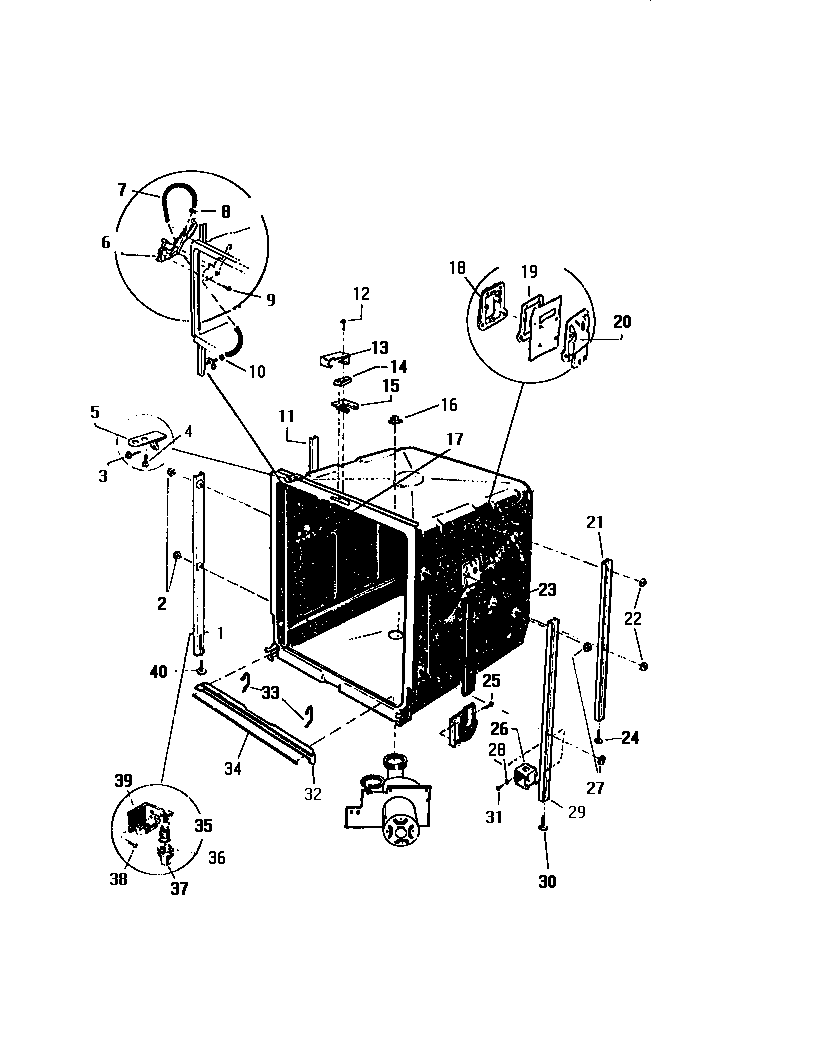

SU777EXR2 05 – OUTER TUB

Products

Position	Product
1	WCI 2647D67H
3	WCI C505617
4	WCI C418701
5	WCI 689B594H01
6	INLET (WITH GASKET)
7	WCI 689B519H04
9	216858001 Frigidaire Refrigerator Screw
10	CLAMP-BLOWER WHEEL
12	WCI S3502
13	WCI S125101
14	WCI S125001
15	WCI S272502
16	WCI 194C559H16
17	SCREW
18	WCI 2647D99H03
19	WCI 194C623H02
20	WCI 2647D89H01
21	LEG
23	WCI S105202
26	WCI 194C608H02
27	WCI C507845
28	WCI Q500411
29	WCI 2646D67H05
31	WCI C505964
32	WCI S401801
33	WCI S601
35	WCI Q19801
36	WCI S122201
37	WCI S122301
38	SCREW (2)
39	FILL VALVE (WITH SOLENOID)
40	SCREW, LEVELING (FRONT & REAR)
