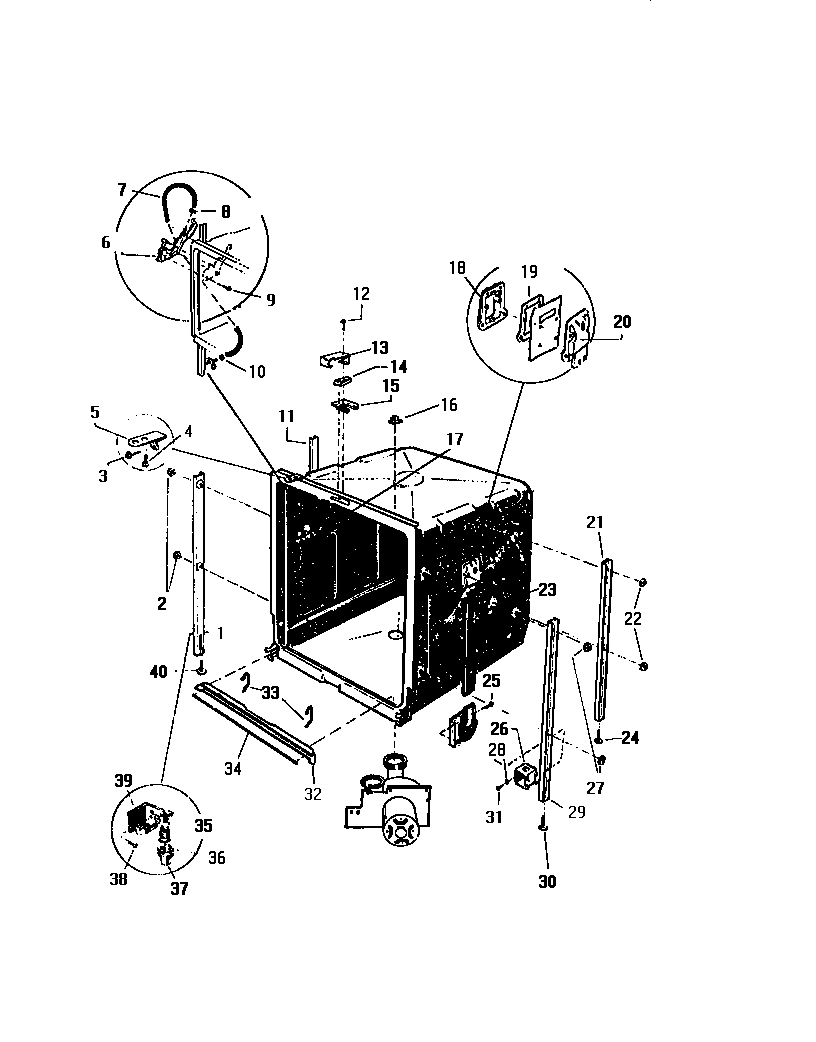

| 1 | WCI 2647D67H |
| 3 | WCI C505617 |
| 4 | WCI C418701 |
| 5 | WCI 689B594H01 |
| 6 | INLET (WITH GASKET) |
| 7 | WCI 689B519H04 |
| 9 | 216858001 Frigidaire Refrigerator Screw |
| 10 | CLAMP-BLOWER WHEEL |
| 12 | WCI S3502 |
| 13 | WCI S125101 |
| 14 | WCI S125001 |
| 15 | WCI S272502 |
| 16 | WCI 194C559H16 |
| 17 | SCREW |
| 18 | WCI 2647D99H03 |
| 19 | WCI 194C623H02 |
| 20 | WCI 2647D89H01 |
| 21 | LEG |
| 23 | WCI S105202 |
| 26 | WCI 194C608H02 |
| 27 | WCI C507845 |
| 28 | WCI Q500411 |
| 29 | WCI 2646D67H05 |
| 31 | WCI C505964 |
| 32 | WCI S401801 |
| 33 | WCI S601 |
| 35 | WCI Q19801 |
| 36 | WCI S122201 |
| 37 | WCI S122301 |
| 38 | SCREW (2) |
| 39 | FILL VALVE (WITH SOLENOID) |
| 40 | SCREW, LEVELING (FRONT & REAR) |
