SU777EXR3 06 – INNER TUB COMPONENTS – Aparts

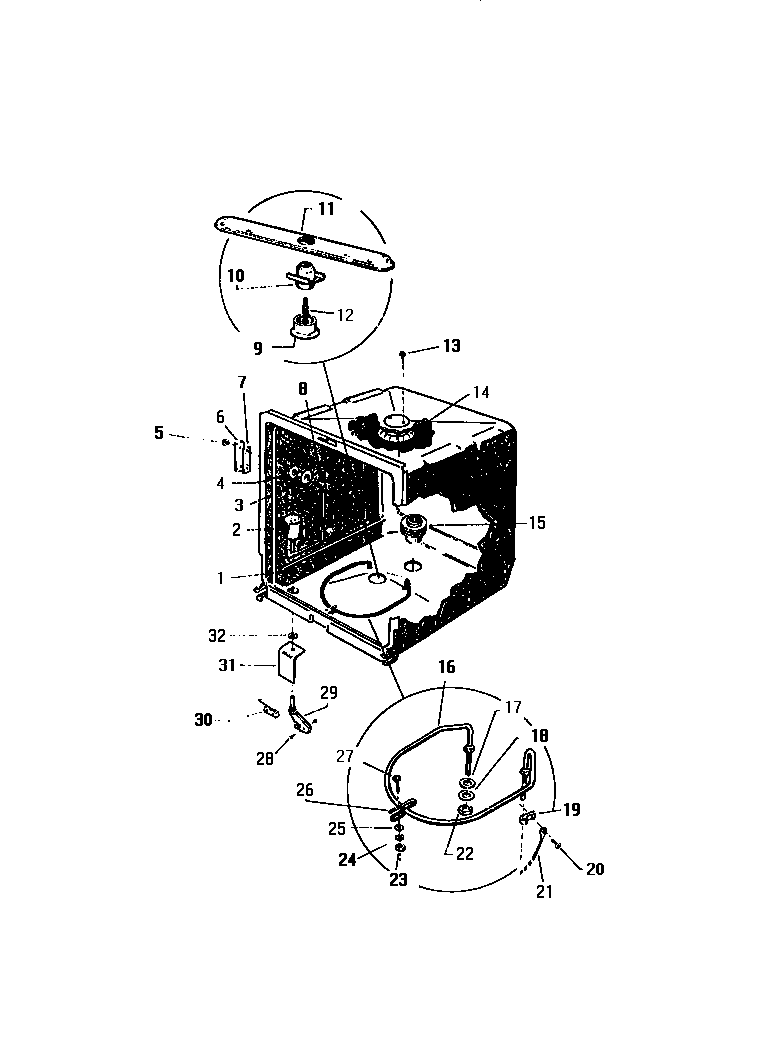

SU777EXR3 06 – INNER TUB COMPONENTS

Products

Position	Product
1	WCI S117901
2	WCI S415202
3	WCI S116201
4	WCI S4203
6	WCI S119301
7	WCI S5001
8	WCI S4101
9	SUPPORT LESS SPRING
10	WCI S414702
11	WCI S414601
12	WCI S255703
13	WCI C505620
14	DEFLECTOR (SC750D ONLY)
15	WCI S268601
16	HEATER (WITH GASKETS)
17	GASKET, INSIDE TUB (2)
18	WCI C411208
19	WCI C507337
20	SCREW
21	WCI 2645D77A15
22	NUT (2 REQ.)
23	WCI C501879
24	WCI C411605
25	WCI C505384
26	WCI 848A040HO1
27	WCI C503184
28	SCREW (WITH NUT)
29	WCI 2645D68H03
30	WCI 2646D25H03
31	WCI S105001
32	WCI 848A024H01
