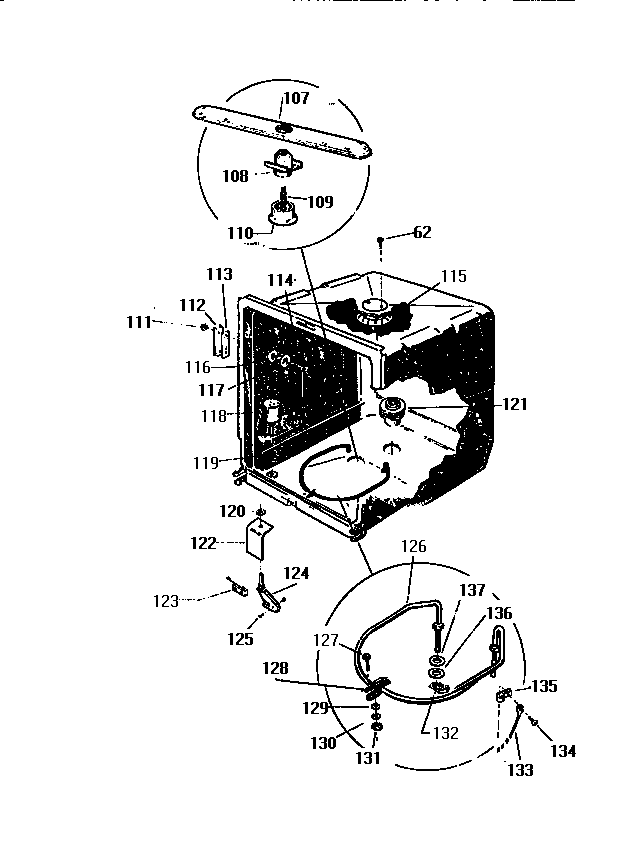

SU900DXR5 06 – INNER TUB COMPONENTS
Products
| Position | Product |
|---|---|
| 107 | WCI S414601 |
| 108 | WCI S414702 |
| 109 | WCI S255703 |
| 110 | SUPPORT LESS SPRING |
| 112 | WCI S119301 |
| 113 | WCI S5001 |
| 114 | WCI S4101 |
| 115 | DEFLECTOR (SC750D ONLY) |
| 116 | WCI S4203 |
| 117 | WCI S116201 |
| 118 | WCI S415202 |
| 119 | WCI S117901 |
| 120 | WCI 848A024H01 |
| 121 | WCI S268601 |
| 122 | WCI S105001 |
| 123 | WCI 2646D25H03 |
| 124 | WCI 2646D68H03 |
| 125 | SCREW (WITH NUT) |
| 126 | HEATER (WITH GASKETS) |
| 127 | WCI C503184 |
| 128 | WCI 848A040H01 |
| 129 | WCI C505384 |
| 130 | WCI C411605 |
| 131 | WCI C501879 |
| 132 | NUT (2 REQ.) |
| 133 | WCI 2645D77A15 |
| 134 | SCREW |
| 135 | WCI C507337 |
| 136 | WCI C411208 |
| 137 | GASKET, INSIDE TUB (2) |
