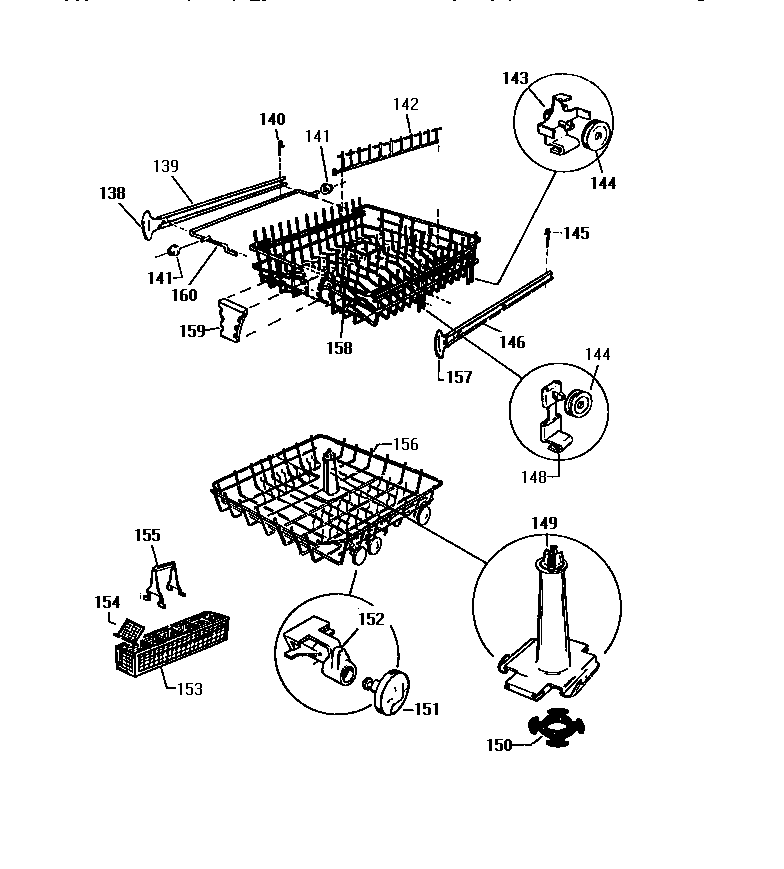

SU900DXR5 07 – RACKS & WASH TOWER

SU900DXR5 07 – RACKS & WASH TOWER

Written by

in

SU900DXR5 07 – RACKS & WASH TOWER

Products

PositionProduct
138WCI S1129945
139SLIDE, LEFT SIDE (WITH ENDCAP)
141WCI 194C681H01
142WCI S266301
143WCI S266501
144WCI S1129946
145WCI S118201
146SLIDE, RIGHT SIDE (WITH ENDCAP)
148WCI S266101
149TOWER ASSEMBLY (WITH GASKET)
150WCI 194C658H02
151WHEEL (8)
152SUPPORT (8)
153WCI S403503
154WCI 2645D39H05
155WCI 194C580H02
156RACK BOTTOM, LESS WHEELS
157WCI S1129944
158WCI S702404
159WCI 2647D86H04
160WIRE ADJUST. (2)
