SUD6000HQ0 05 – DISHRACK

SUD6000HQ0 05 – DISHRACK

Written by

in

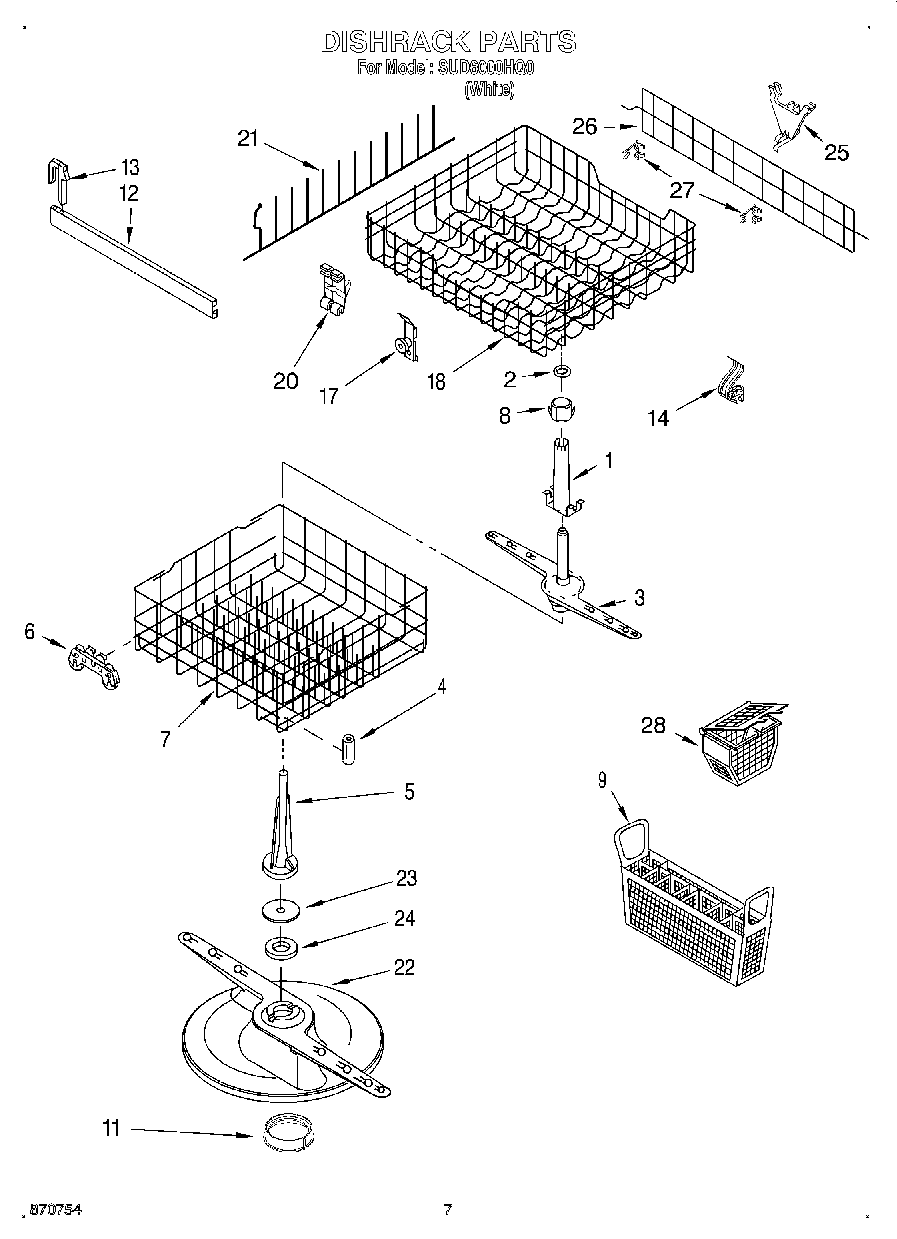

SUD6000HQ0 05 – DISHRACK

Products

PositionProduct
1Support, Arm
2Clip
3Spray Arm, Upper (Also Order Items 1 & 8)
4WP3385142 Whirlpool Dishwasher Bumper
5Tower, Pressure
6WP3376961 Whirlpool Dishwasher Wheel
7W10311986 Whirlpool Dishwasher Lower Rack
8Support, Lock Spray Arm
9Basket, Silverware
11WP3376846 Whirlpool Seal
12WP3385089 Whirlpool Track
13WP3379941 Whirlpool Dishwasher Stop
14Clip, No Flip (4)
17WPW10204131 Whirlpool Dishwasher Dishrack Adjuster
18W11169039 Whirlpool Dishwasher Dish Rack
20WP3368629 Whirlpool Dishwasher Retainer
21W10728160 Whirlpool Tine Assembly
22WP8268874 Whirlpool Dishwasher Spray Arm
23Cap, Nozzle
24WP719576 Whirlpool Dishwasher Bearing
25Pivot, Folddown
26WP8268828 Whirlpool Dishwasher Shelf
278268826 Whirlpool Dishwasher Cup Holder
28WP8562003 Whirlpool Dishwasher Basket
