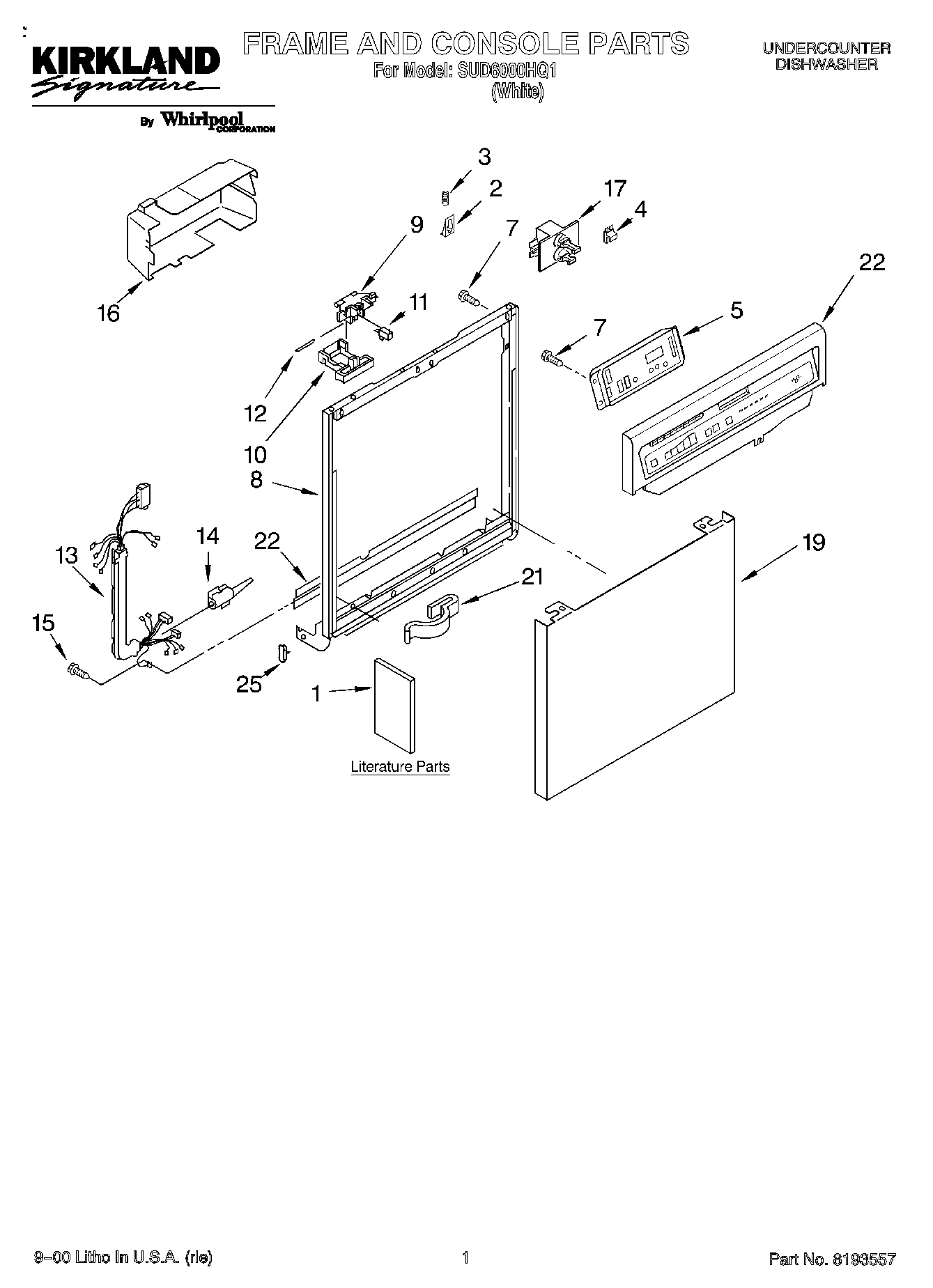

SUD6000HQ1 01 – FRAME & CONSOLE, LITERATURE

SUD6000HQ1 01 – FRAME & CONSOLE, LITERATURE

Written by

in

SUD6000HQ1 01 – FRAME & CONSOLE, LITERATURE

Products

PositionProduct
1Literature Parts (Instructions, Installation)
1Literature Parts (Tech Sheet) (English)
1Literature Parts (Guide, Use & Care)
1Literature Parts (Tech Sheet) (French)
1Instructions, Installation (Supplement) (Locating Your Water Supply)
1Do-It Yourself Manual
1Literature Parts (Guide, Energy)
2675782 Whirlpool Dishwasher Catch
4675813 Whirlpool Thermal Fuse Kit
5Control, Electronic
7WP304231 Whirlpool Dishwasher Screw
8WP9743028 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch White
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16Cover, Timer
17Motor, Dual
19Panel Front (White Model)
218528351 Whirlpool Clip
22Console (Includes Item 2) (White)
25WP3373234 Whirlpool Dishwasher Bearing
