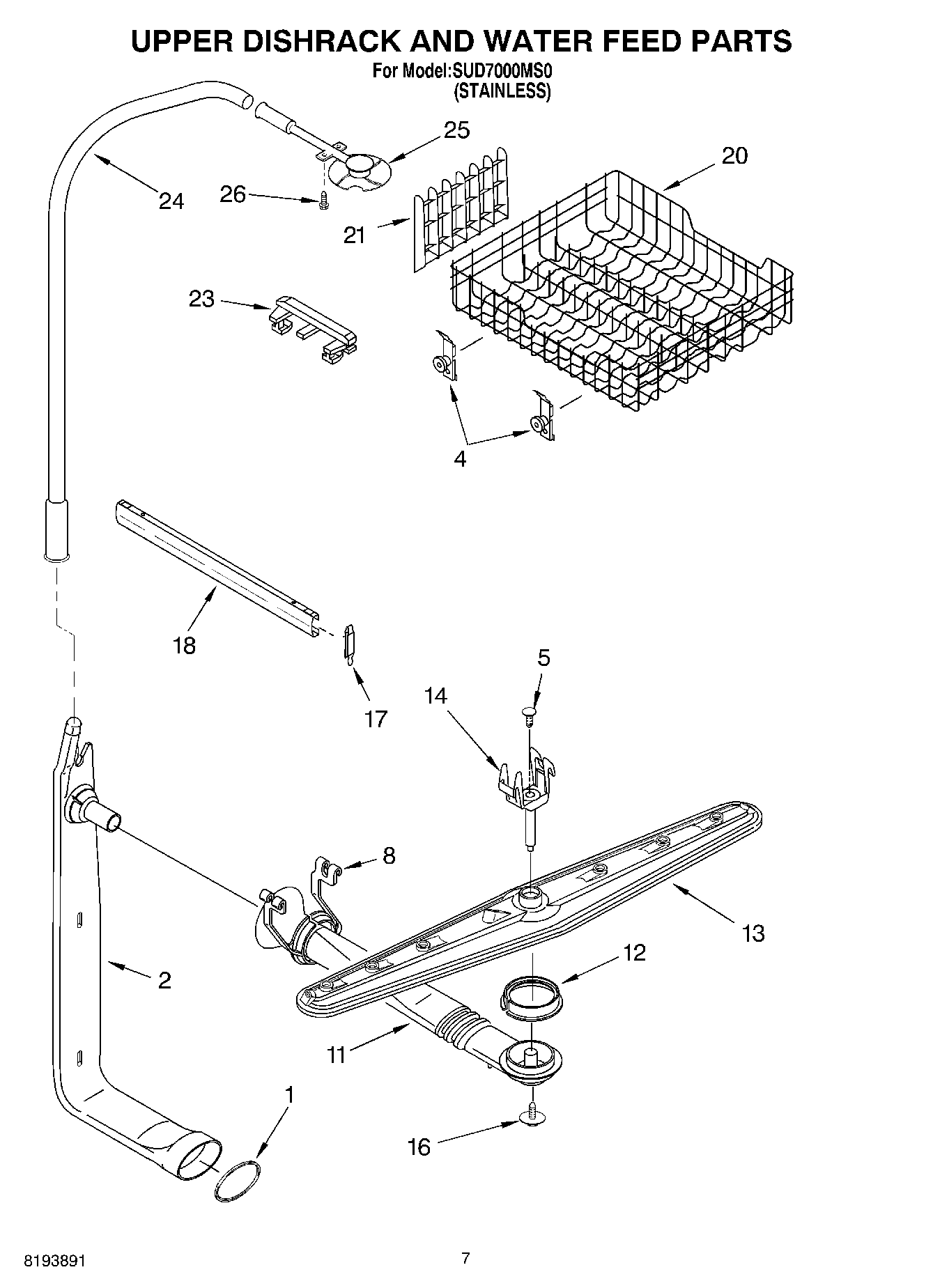

SUD7000MS0 05 – UPPER DISHRACK AND WATER FEED PARTS

SUD7000MS0 05 – UPPER DISHRACK AND WATER FEED PARTS

Written by

in

SUD7000MS0 05 – UPPER DISHRACK AND WATER FEED PARTS

Products

PositionProduct
1Seal, Tube
2661651 Whirlpool Dishwasher Tube
4WPW10204131 Whirlpool Dishwasher Dishrack Adjuster
5WP3400919 Whirlpool Dishwasher Screw Cover
8WP3385160 Whirlpool Dishwasher Holder
11WPW10258149 Whirlpool Dishwasher Manifold
12WP3376846 Whirlpool Seal
13WP8519604 Whirlpool Dishwasher Spray Arm
14WP3385159 Whirlpool Dishwasher Mount
16WPW10349488 Whirlpool Screw
17WP8565925 Whirlpool Slide Rail Stop
18WP3385089 Whirlpool Track
20W11169039 Whirlpool Dishwasher Dish Rack
21WP8268828 Whirlpool Dishwasher Shelf
238268826 Whirlpool Dishwasher Cup Holder
24Tube (3rd Level)
25WP3379369 Whirlpool Dishwasher Wash Assembly
26WP489443 Whirlpool Refrigerator Screw
