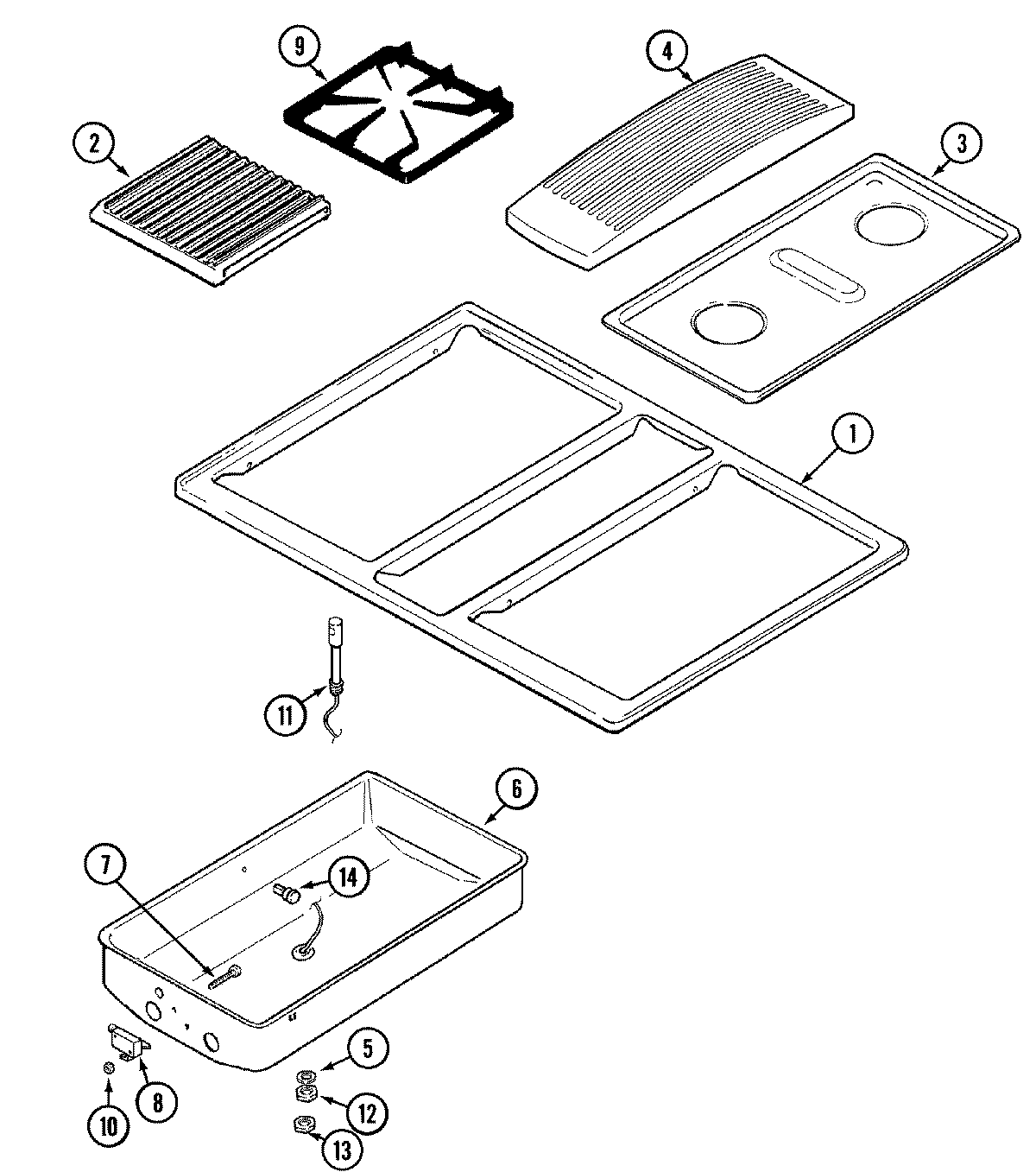

SVD48600BC 08 – TOP ASSEMBLY

Products

Position	Product
1	MAY 71002061
2	MAY Y04100054
2	MAY 71003267
3	3401X055-09 Whirlpool Pan
4	MAY 71002063
5	MAY 704568
6	MAY Y04100517
6	MAY Y04100272
8	MAY 702380
8	MAY 715617
8	7403P620-60 Whirlpool Switch
9	MAY 71001757
9	WP71003089 Whirlpool Grate Assembly
10	MAY Y704534
10	MAY Y704522
11	WP71002179 Whirlpool Surface Igniter
12	WPY703856 Whirlpool Nut
13	MAY Y704553
14	71001764 Whirlpool Locator PIN
