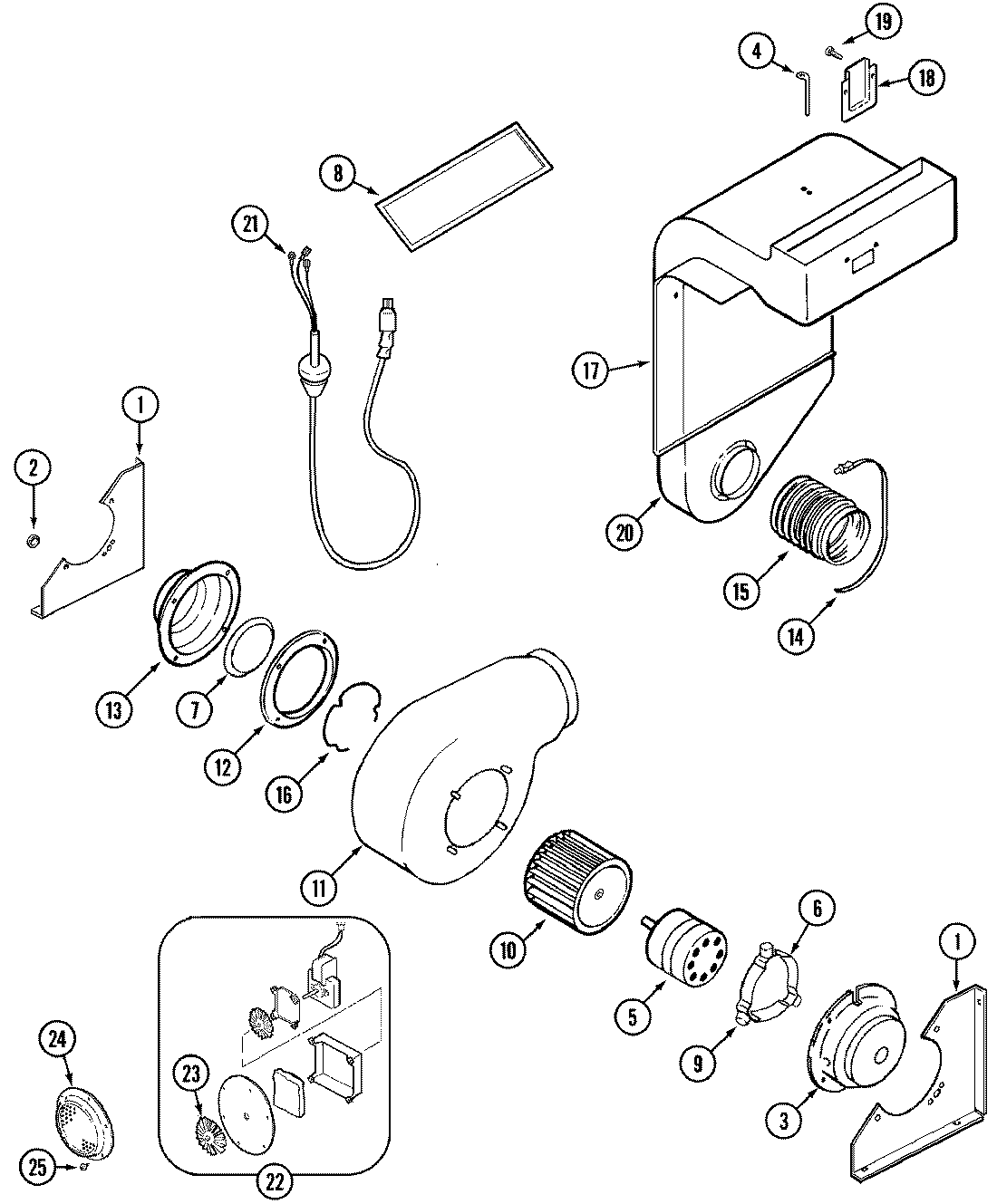

SVD48600PT 01 – BLOWER & CONVECT ASSY. (PT,PU MODELS)

SVD48600PT 01 – BLOWER & CONVECT ASSY. (PT,PU MODELS)

Written by

in

SVD48600PT 01 – BLOWER & CONVECT ASSY. (PT,PU MODELS)

Products

PositionProduct
1WP3801F631-51 Whirlpool Mounting Bracket
2WPY707702 Whirlpool Locknut
3MAY 71002107
4MAY 71002113
5WPW10201322 Whirlpool Blower Motor
5MAY Y715957
6MAY Y707393
7MAY Y704761
8WP71002111 Whirlpool Grease Filter
9MAY 707161
9MAY Y707402
9MAY Y708926
10WPY707985 Whirlpool Wheel Assembly
11MAY 712008
12MAY Y704758
13MAY Y702296
14MAY Y702331
15MAY Y702326
168038P003-60 Whirlpool Retainer
17MAY 71002109
17MAY Y700556
18MAY Y702475
19MAY Y707347
20MAY 71002110
21MAY 71002112
22MAY 71001858
23MAY 71001855
24MAY 71001854
25MAY 702592
25MAY 71001394
