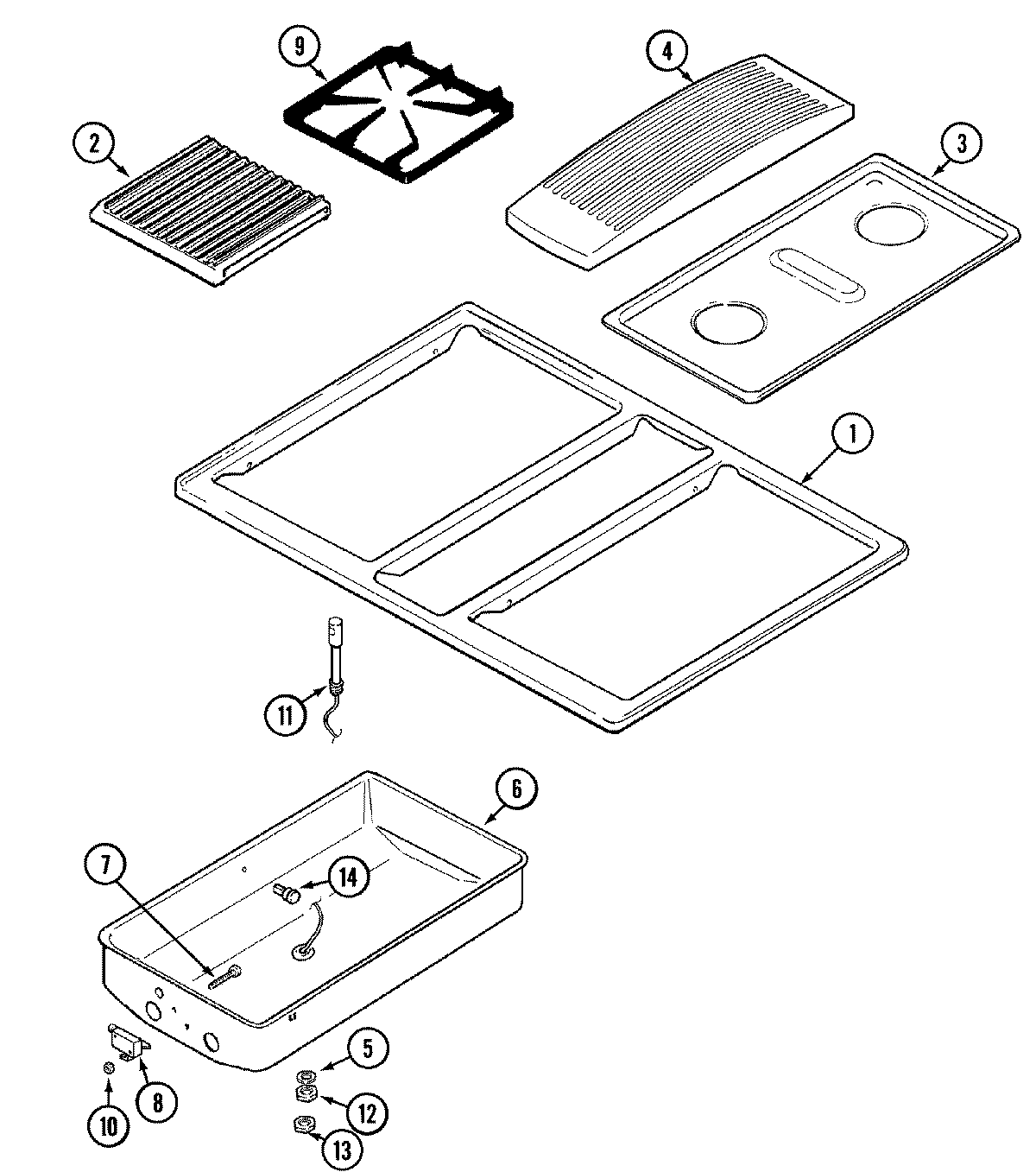

SVD48600W 08 – TOP ASSEMBLY

Products

Position	Product
1	MAY 71002062
2	MAY 71003267
2	MAY Y04100054
3	3401X055-81 Whirlpool Pan Assembly
4	MAY 71002064
5	MAY 704568
6	MAY Y04100272
6	MAY Y04100517
8	MAY 702380
8	7403P620-60 Whirlpool Switch
8	MAY 715617
9	MAY 71002973
9	MAY 71002313
10	MAY Y704522
10	MAY Y704534
11	WP71002179 Whirlpool Surface Igniter
12	WPY703856 Whirlpool Nut
13	MAY Y704553
14	71001764 Whirlpool Locator PIN
