SVD8310SG 11 – TOP ASSEMBLY – Aparts

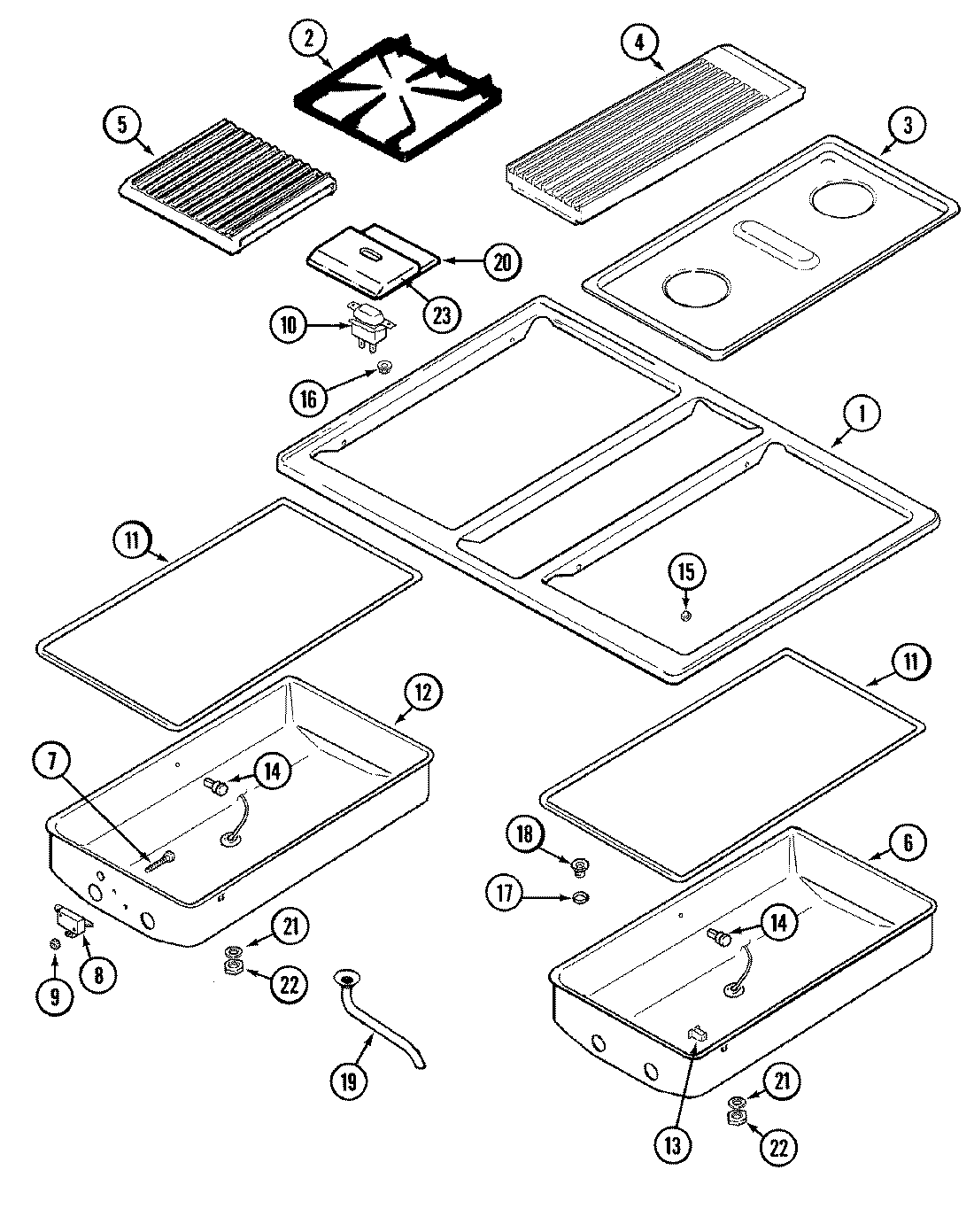

SVD8310SG 11 – TOP ASSEMBLY

Products

Position	Product
1	WP90767 Whirlpool Screw
1	MAY 712600
2	MAY 71001757
3	3401X055-09 Whirlpool Pan
4	MAY Y04100630
5	MAY Y04100054
6	MAY 704925
7	MAY 702380
8	MAY Y704534
8	7403P620-60 Whirlpool Switch
9	MAY 715617
9	MAY Y704522
10	MAY Y704221
11	MAY Y704979
12	MAY Y704924
13	MAY Y700503
14	MAY Y704553
14	71001764 Whirlpool Locator PIN
15	MAY Y04100035
16	MAY Y705023
17	MAY 702747
18	MAY 702748
19	MAY 704941
19	MAY Y702463
20	MAY Y04100754
21	MAY 704568
22	WPY703856 Whirlpool Nut
23	MAY 71001916
