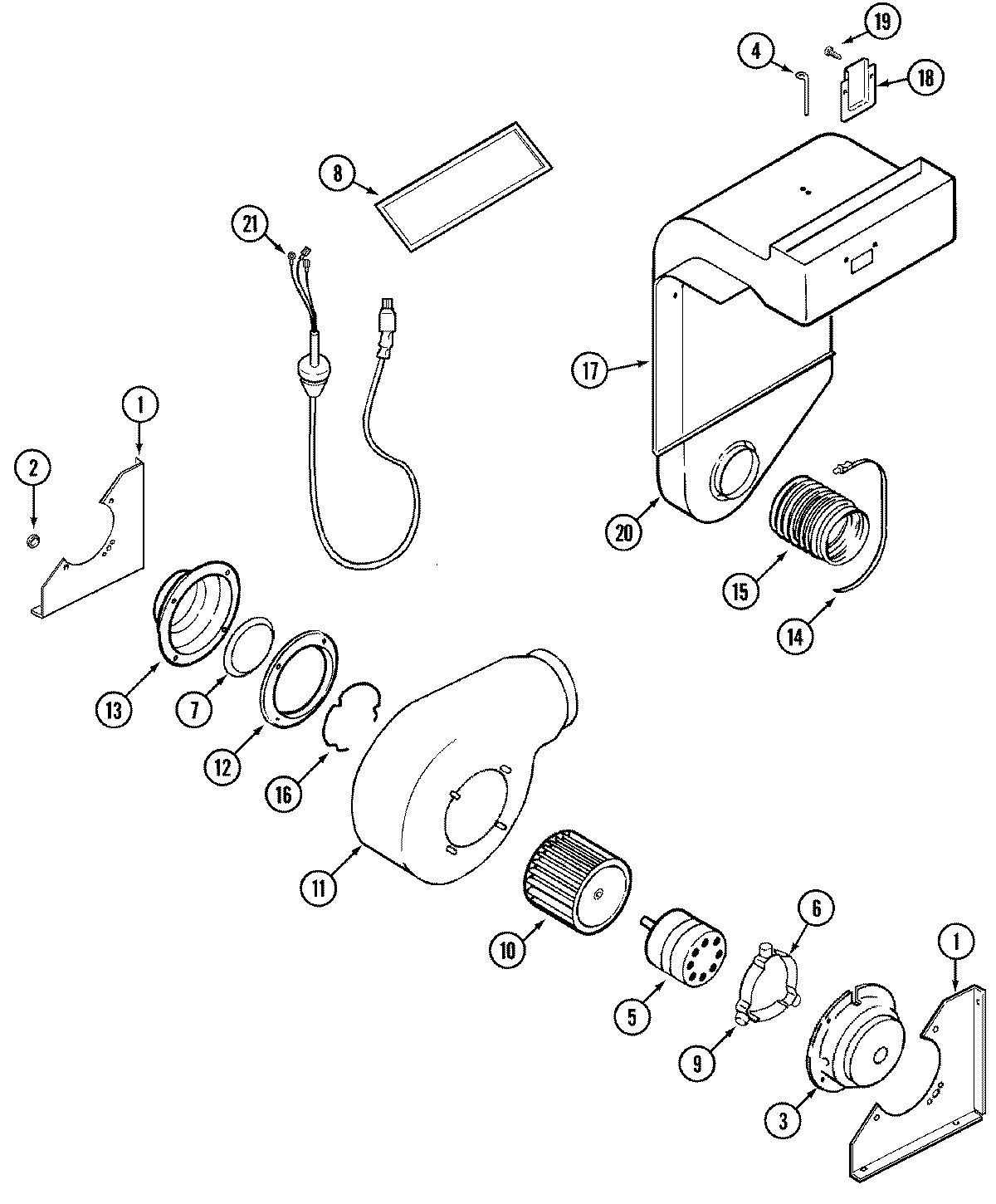

SVE47100WC 02 – BLOWER ASSEMBLY (PLENUM)

Products

Position	Product
1	WP3801F631-51 Whirlpool Mounting Bracket
2	WPY707702 Whirlpool Locknut
3	MAY 71002107
4	MAY 71002113
5	MAY Y715957
5	WPW10201322 Whirlpool Blower Motor
6	MAY Y707393
7	MAY Y704761
8	WP71002111 Whirlpool Grease Filter
9	MAY Y707402
9	MAY 707161
9	MAY Y708926
10	WPY707985 Whirlpool Wheel Assembly
11	MAY 712008
12	MAY Y704758
13	MAY Y702296
14	MAY Y702331
15	MAY Y702326
16	8038P003-60 Whirlpool Retainer
17	MAY 71002109
17	MAY Y700556
18	MAY Y702475
19	MAY Y707347
20	MAY 71002110
21	MAY 71002207
