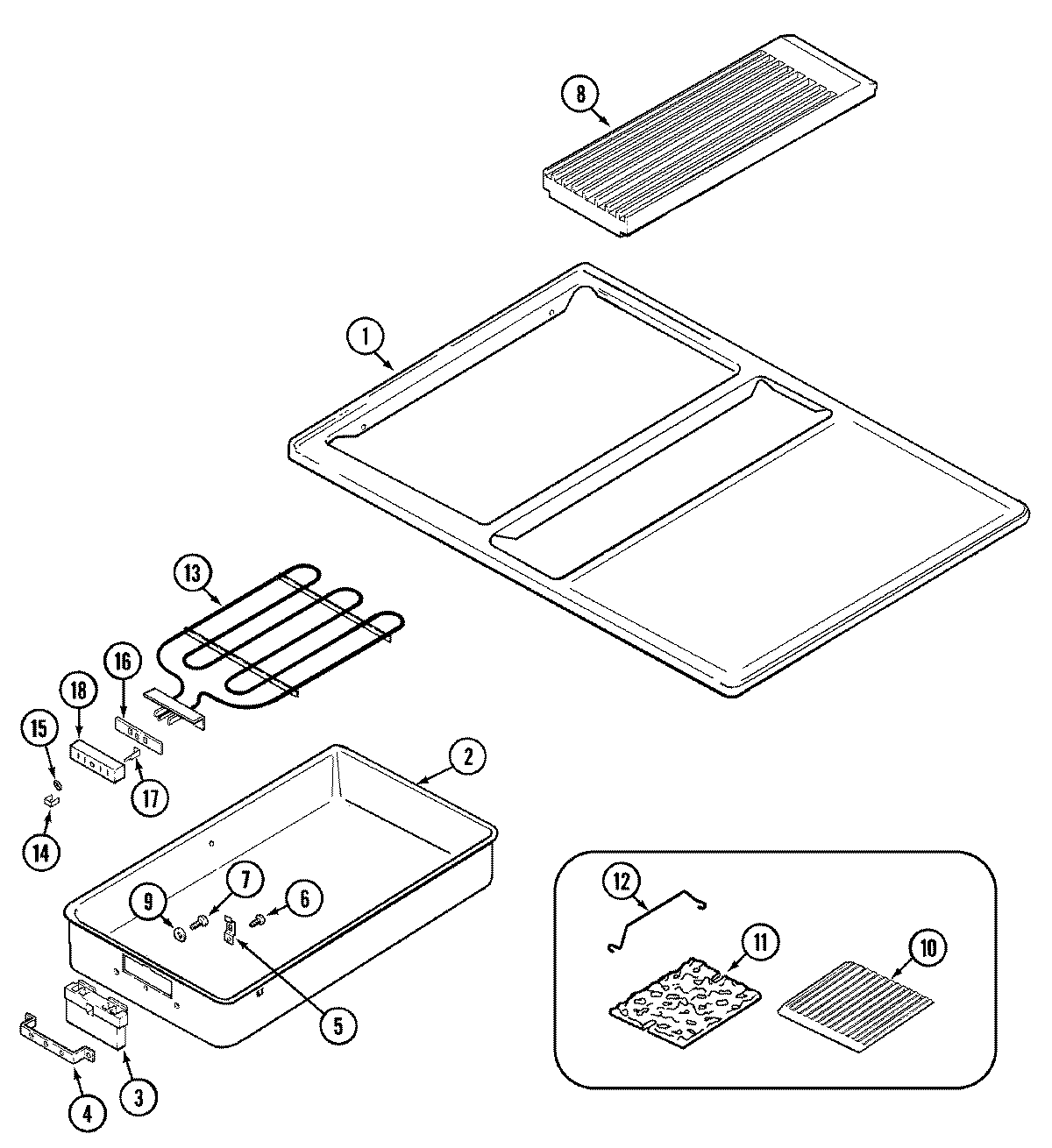

SVE47100WC 06 – TOP ASSEMBLY

Products

Position	Product
1	MAY 71002062
2	71002205 Whirlpool Element Support
2	MAY Y702825
2	MAY 701955
2	MAY Y701956
3	WP5708M007-60 Whirlpool Wire Harness
3	MAY 71002604
3	MAY 71002605
3	WPY702434 Whirlpool Receptacle
3	MAY 71002326
4	MAY Y702698
5	MAY Y702699
6	WP489128 Whirlpool Refrigerator Screw
7	WP12990527 Whirlpool Microwave Screw
8	MAY 71002064
9	MAY Y707664
10	MAY 71002599
11	MAY 708929
12	700819 Whirlpool Oven Element Support
13	MAY Y04100024
14	MAY Y700450
15	Y708862 Whirlpool Speed Nut
16	MAY Y700449
17	Y708572 Whirlpool Spade Contact
18	WPY708730 Whirlpool Terminal Block
