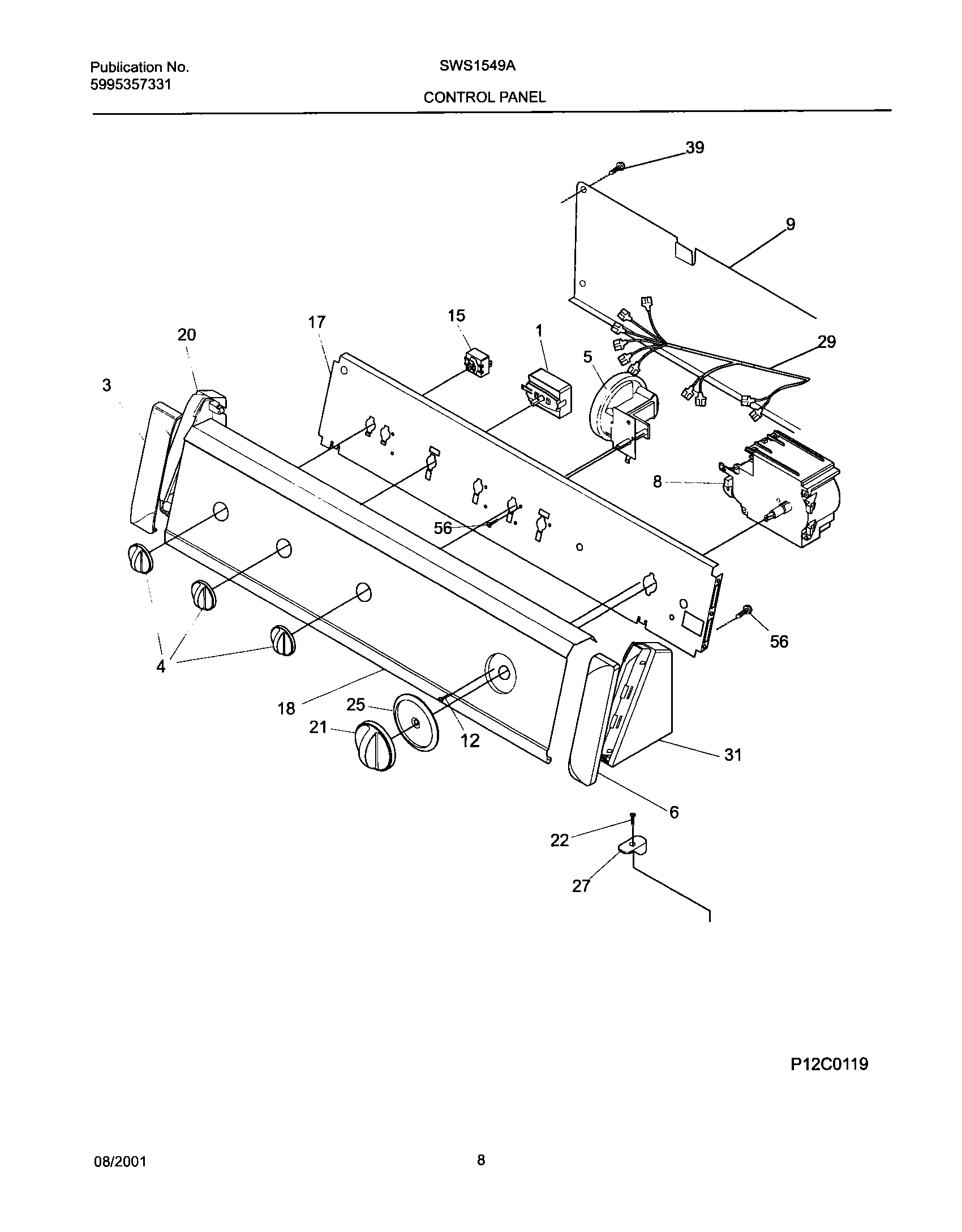

SWS1549AS0 09 – CONTROL PANEL

Products

Position	Product
1	WCI 131120400
3	COVER-CAP-LH-WHITE
4	131858004 Frigidaire Control Knob, White
5	134680100 Frigidaire Pressure Switch
6	COVER-CAP-RH-WHITE
8	WCI 131856400
9	WCI 131141730
12	131168200 Frigidaire Dryer Screw
15	WCI 131081200
17	WCI 131580006
18	Panel,trimplate ,console front
20	END CAP-L.H.-WHITE
21	WCI 131592001
22	WCI 131266300
25	Dial,timer pointer ,clear/dk gray
27	CLIP-CONSOLE MTG
29	WCI 131794300
31	END CAP-R.H.-WHITE
39	131205100 Frigidaire Screw
56	131243800 Frigidaire Screw
