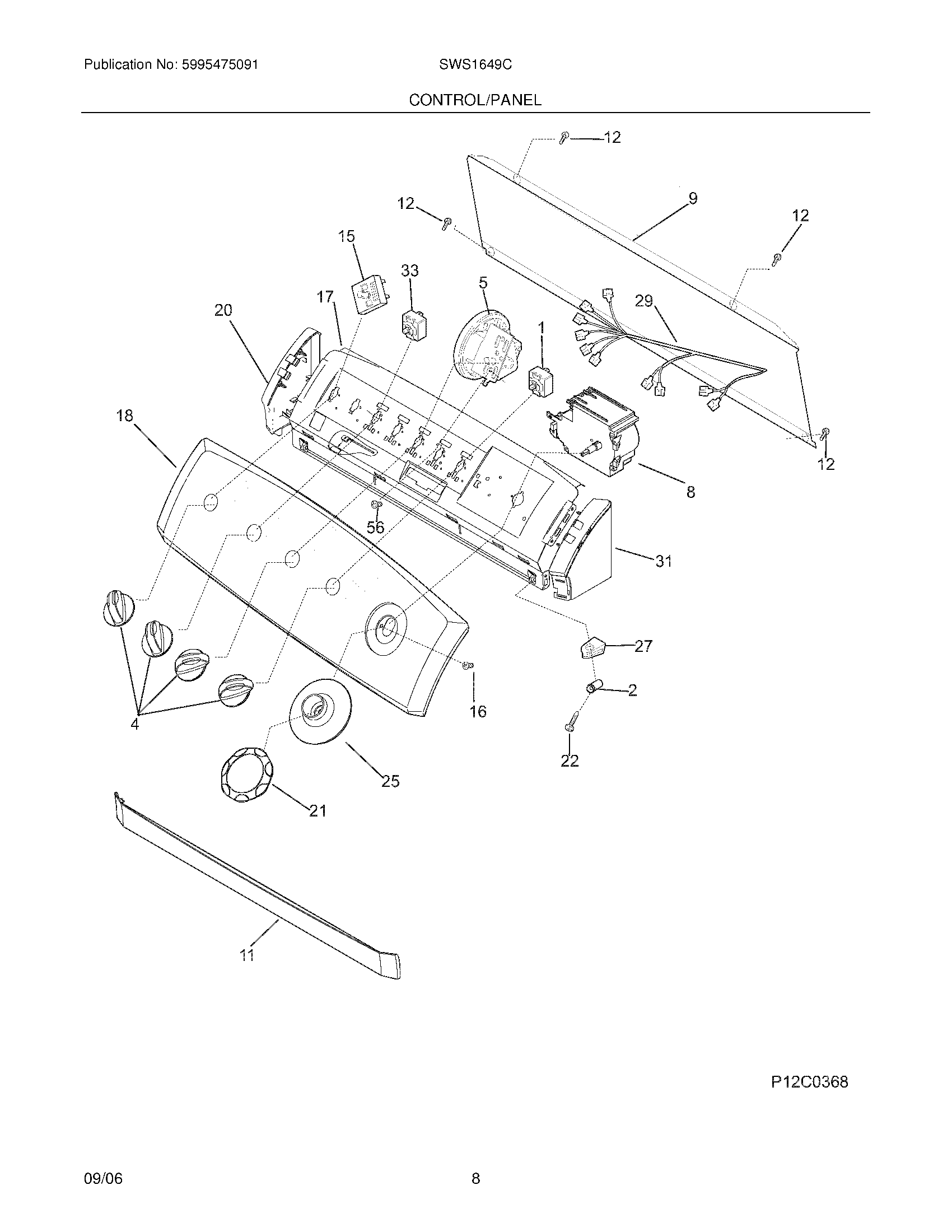

SWS1649CQ1 09 – CONTROL/PANELadmin2025-04-26T10:16:44+00:00SWS1649CQ1 09 – CONTROL/PANEL
Products
| Position | Product |
|---|
| 1 | WCI 134404900 |
| 2 | WCI 134096100 |
| 4 | WCI 134034911 |
| 5 | 134680100 Frigidaire Pressure Switch |
| 8 | WCI 131856400 |
| 9 | Panel,backsheet ,console |
| 11 | Closure,console trim ,bisque ,front |
| 15 | WCI 134409000 |
| 16 | 131168200 Frigidaire Dryer Screw |
| 17 | WCI 131993040 |
| 18 | WCI 134323300 |
| 20 | End Cap,bisque ,LH |
| 21 | Knob,timer ,bisque ,assy |
| 22 | WCI 131266330 |
| 25 | Pointer,timer knob ,bisque ,dark brown ind |
| 27 | CLIP-CONSOLE MTG |
| 29 | WCI 134546000 |
| 31 | End Cap,bisque ,RH |
| 33 | Switch,2 position |
| 56 | 131243800 Frigidaire Screw |
