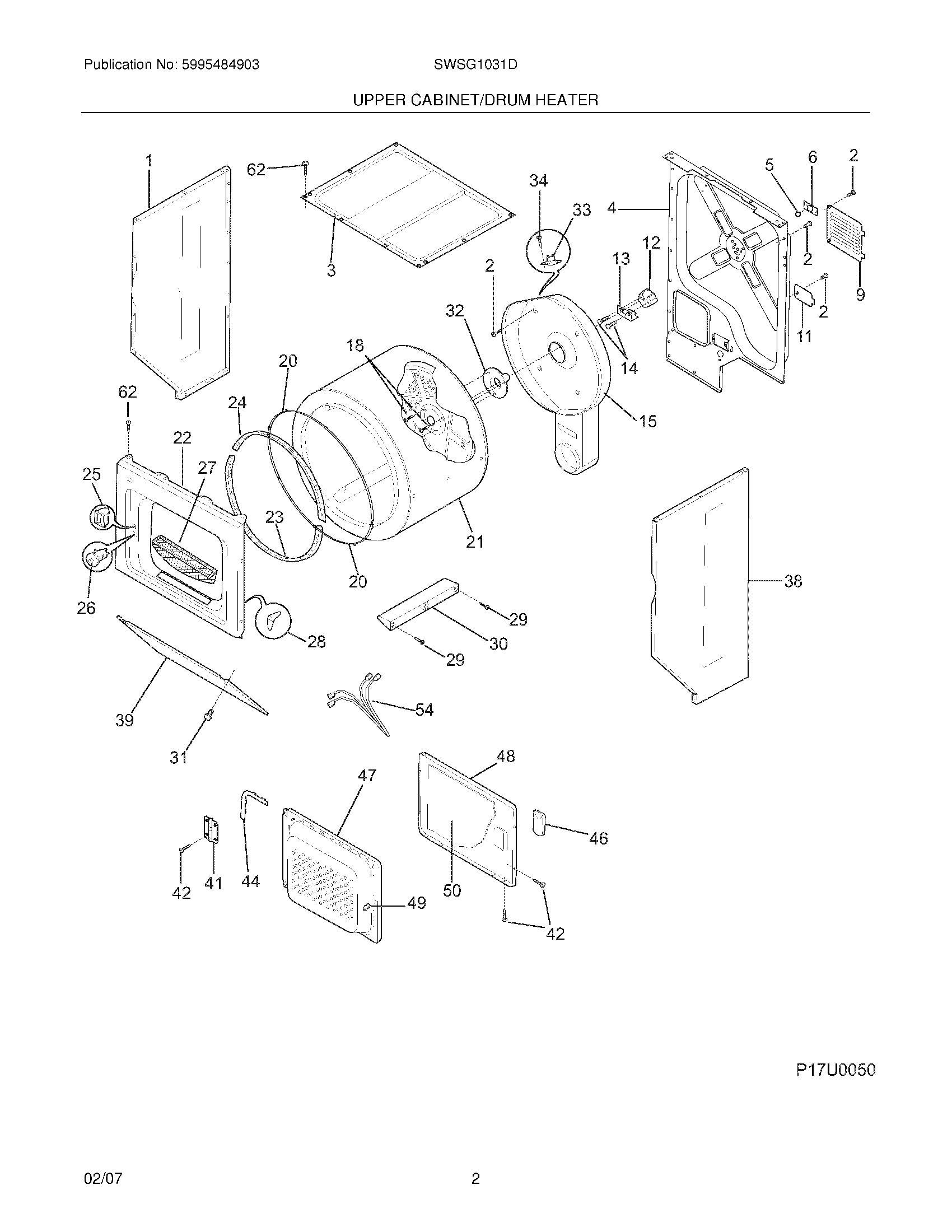

SWSG1031DQ1 03 – UPPER CABINET/DRUM HEATER

Products

Position	Product
NI	137576600 Frigidaire Dryer Hole Plug Light
1	WCI 131084712
3	131883301 Frigidaire Panel
4	WCI 134799902
5	5303281019 Frigidaire Ball Assembly
6	5303281020 Frigidaire Ball Clip
9	PANEL-MOTOR ACCESS
11	COVER-TERM BLOCK
12	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13	131724301 Frigidaire Dryer Drum Bearing Bracket
14	131205400 Frigidaire Screw
15	HEATER HOUSING & DUCT
18	131168200 Frigidaire Dryer Screw
20	137513300 Frigidaire Dryer Drum Glide
21	Drum,dryer ,painted ,service kit
22	WCI 131636239
23	5303937183 Frigidaire Dryer Lower Front Felt Seal
24	5303937182 Frigidaire Dryer Drum Upper Felt Seal with Adhesive
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	134813600 Frigidaire Dryer Door Switch
27	LINT FILTER
28	WCI 134440000
29	131382300 Frigidaire Screw-VANE
30	137552900 Frigidaire Vane
31	131202300 Frigidaire Screw
32	131777700 Frigidaire Dryer Bearing Drum
33	5304406099 Frigidaire Safety Thermostat
34	131243800 Frigidaire Screw
38	WCI 131084812
39	WCI 131084404
41	134222900 Frigidaire Dryer Door Hinge
42	134156200 Frigidaire Screw
44	137551901 Frigidaire Gasket
46	WCI 131789402
47	137365110 Frigidaire Panel
48	Door-outer bsq dryer & LC
49	5303207102 Frigidaire Door Strike
50	134535300 Frigidaire Insulator
54	WCI 134846300
62	131302800 Frigidaire Drum Vane Screw
