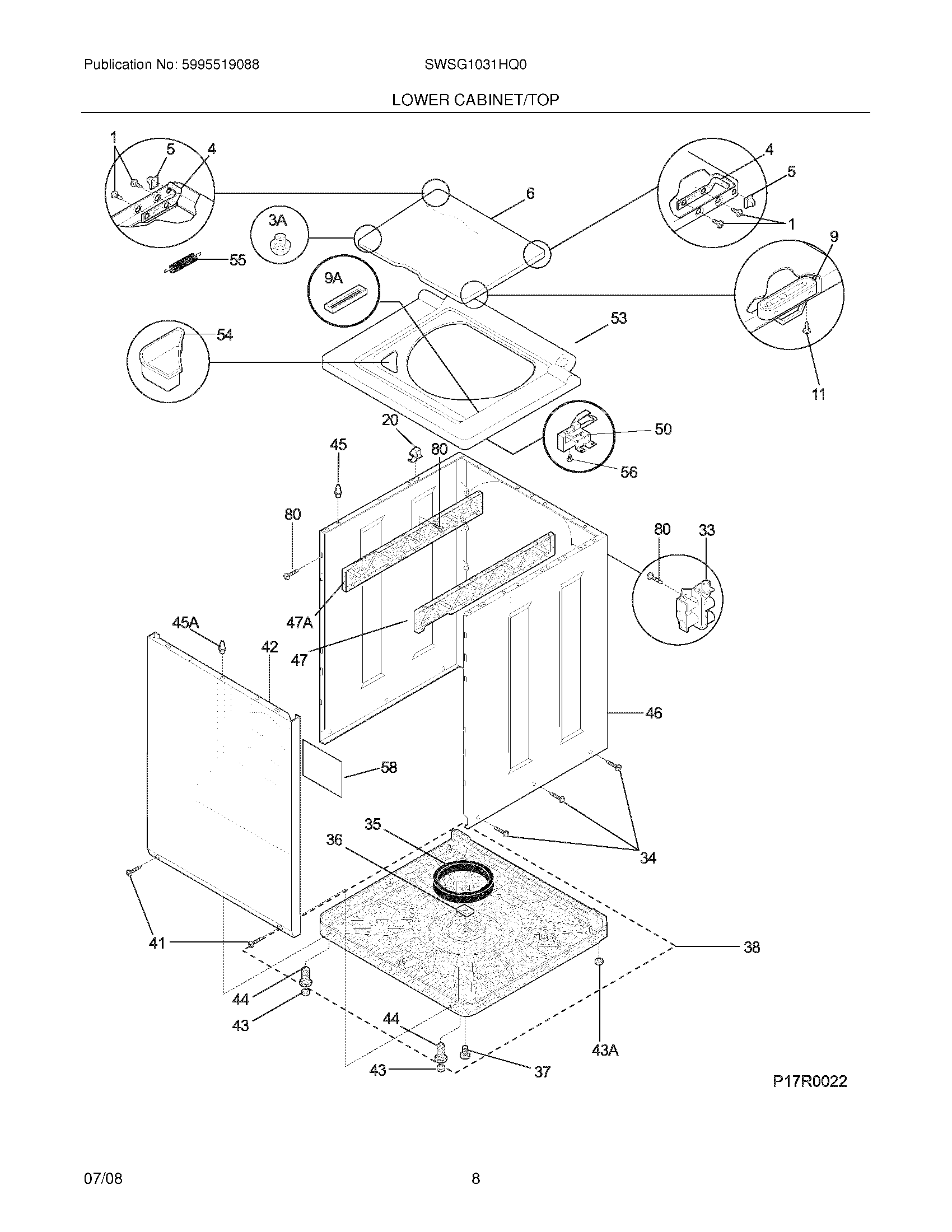

SWSG1031HQ0 09 – LOWER CABINET/TOP

SWSG1031HQ0 09 – LOWER CABINET/TOP

Written by

in

SWSG1031HQ0 09 – LOWER CABINET/TOP

Products

PositionProduct
1134203900 Frigidaire Scr 6-32X.337 Pph D
3A134075500 Frigidaire Bumper-LID
45304489657 Frigidaire Bar Hinge Kit
55303208743 Frigidaire Grommet
6WCI 5304417765
9131390000 Frigidaire Door Catch-Strike
9AWCI 134768500
113204368 Frigidaire Screw-Strike
203204374 Frigidaire Pin
33134190200 Frigidaire Washer Water Valve
34131205500 Frigidaire Screw
35SNUBBER RING
36SHIPPING BLOCK
37WCI 131658900
38WCI 5303311213
41131302800 Frigidaire Drum Vane Screw
42WCI 131104306
43WCI 131422100
43A131422200 Frigidaire P-1 Self Level Leg Pad
44134548800 Frigidaire Washer Leg Levelling
45A131346401 Frigidaire Pin
45WCI 131346400
46Cabinet Assy,bisque ,back and sides
47MARRIAGE BRACKET-RH
47AMARRIAGE BRACKET-LH
50Lid lock w/external sw
53WCI 131452550
54WCI 3204394
55134890500 Frigidaire Spring
56131243700 Frigidaire Screw
58WCI 131744202
80131168200 Frigidaire Dryer Screw
