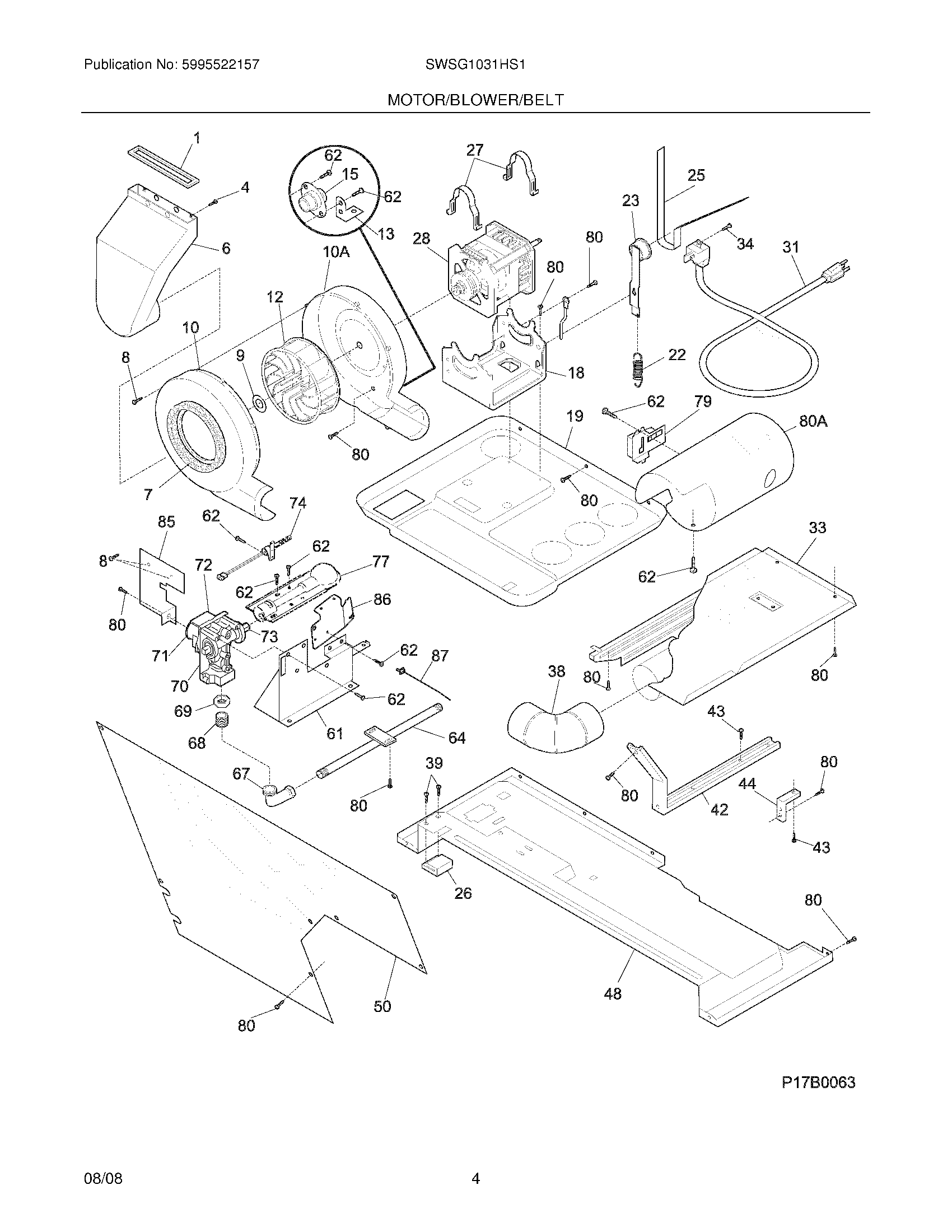

SWSG1031HS1 05 – MOTOR/BLOWER/BELT

Products

Position	Product
1	131295200 Frigidaire Seal
4	131168200 Frigidaire Dryer Screw
6	5304521121 Frigidaire Duct
7	3204490 Frigidaire Seal
8	SCREW (6)
9	5304488479 Frigidaire Washer Hose Clamp
10	134611700 Frigidaire Housing
10A	137551800 Frigidaire Housing
12	BLOWER WHEEL
13	WCI 134608400
15	WCI 134721400
18	CRADLE & STUD
19	WCI 134613501
22	3205241 Frigidaire Idler Spring
23	IDLER ARM ASSY
25	BELT-DRYER LC
26	BLOCK-SUPPORT
27	134242400 Frigidaire Washer Clamp Assembly
28	134196602 Frigidaire Washer Dryer Motor
31	134500500 Frigidaire Power Cord
33	SHIELD-ACCESS
34	134154100 Frigidaire Screw 10-32 x 0.375 Co
38	ELBOW
39	131205100 Frigidaire Screw
42	WCI 5304439185
43	SCREW 12-24 X .63 HEX HD
44	3204326 Frigidaire Bracket Assembly
48	137455500 Frigidaire Lower Pan Assembly
50	SAFETY COVER
61	WCI 5303309493
62	131243700 Frigidaire Screw
64	WCI 134145200
67	WCI 134769400
68	WCI 134185100
69	WCI 5308015194
70	WCI 134169200
71	5303931775 Frigidaire Dryer Coil Kit
73	5303207410 Frigidaire Orifice
74	5304517325 IGNITOR
77	134216600 Frigidaire Burner Assembly
79	5303281135 Frigidaire Gas Dryer Flame Sensor Radiant
80A	131712405 Frigidaire Tube
85	134287301 Frigidaire SHIELD
86	134264800 Frigidaire Plate
87	5304528020 Frigidaire Cable Tie
