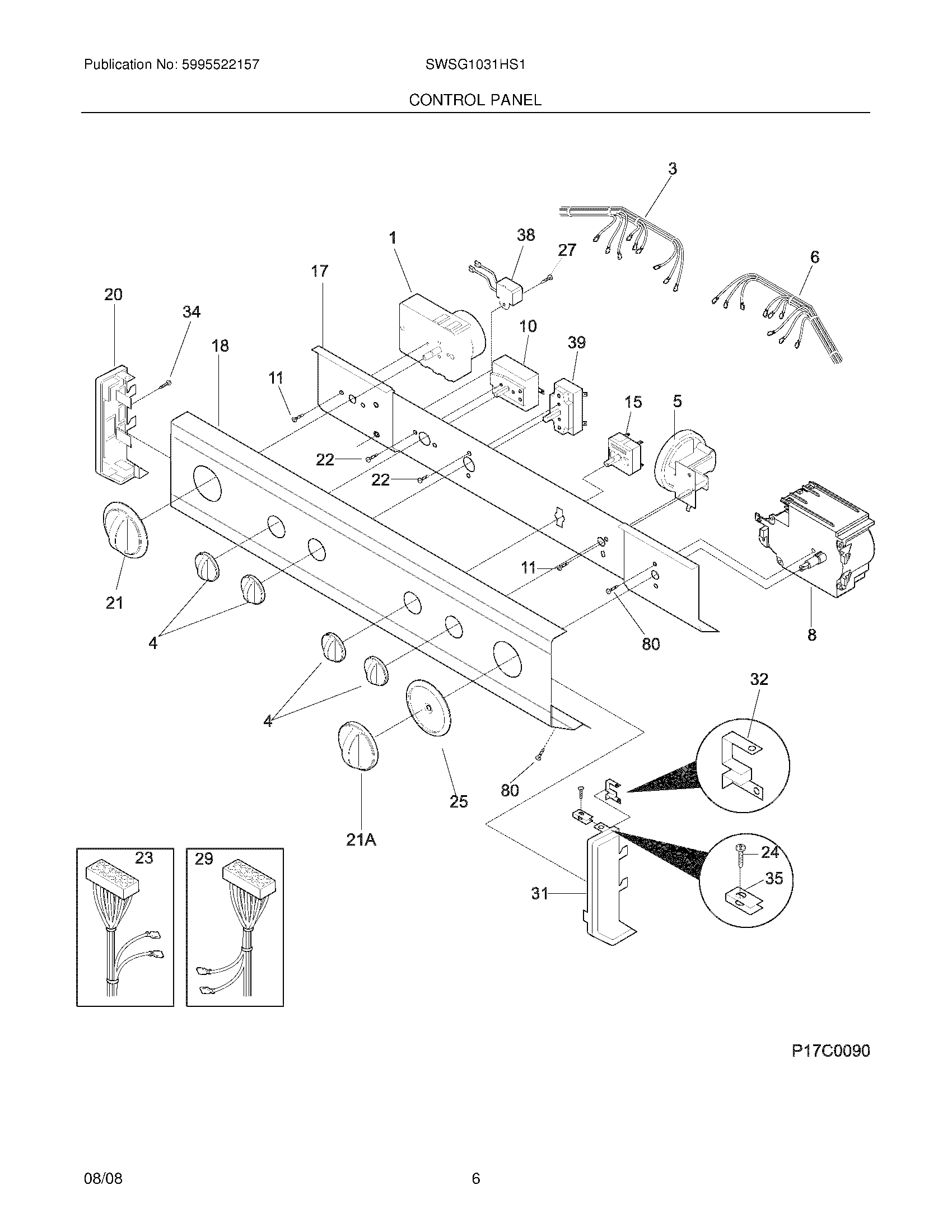

SWSG1031HS1 07 – CONTROL PANEL

SWSG1031HS1 07 – CONTROL PANEL

Written by

in

SWSG1031HS1 07 – CONTROL PANEL

Products

PositionProduct
NI134154100 Frigidaire Screw 10-32 x 0.375 Co
NI134101400 Frigidaire Dryer Kit Terminal Block
1131583801 Frigidaire Dryer P-1 Timer
3WCI 131703600
4134844470 Frigidaire Washer Rotary Knob
5134422700 Frigidaire Switch
6WCI 134542500
8WCI 134049600
10134399700 Frigidaire Washer Switch
11218359202 Frigidaire Refrigerator Screw
15WCI 134410100
17WCI 134263400
18WCI 137003000
20WCI 131288101
21AWCI 134043200
21134043000 Frigidaire Timer Control Knob
22WCI 3161259
23WCI 134605800
24134156200 Frigidaire Screw
25WCI 131976804
27131892100 Frigidaire Screw
29WCI 134689400
31WCI 131288211
32WCI 3204357
34131243700 Frigidaire Screw
35CLIP (8)
38WCI 5303286537
39WCI 134399800
80131168200 Frigidaire Dryer Screw
