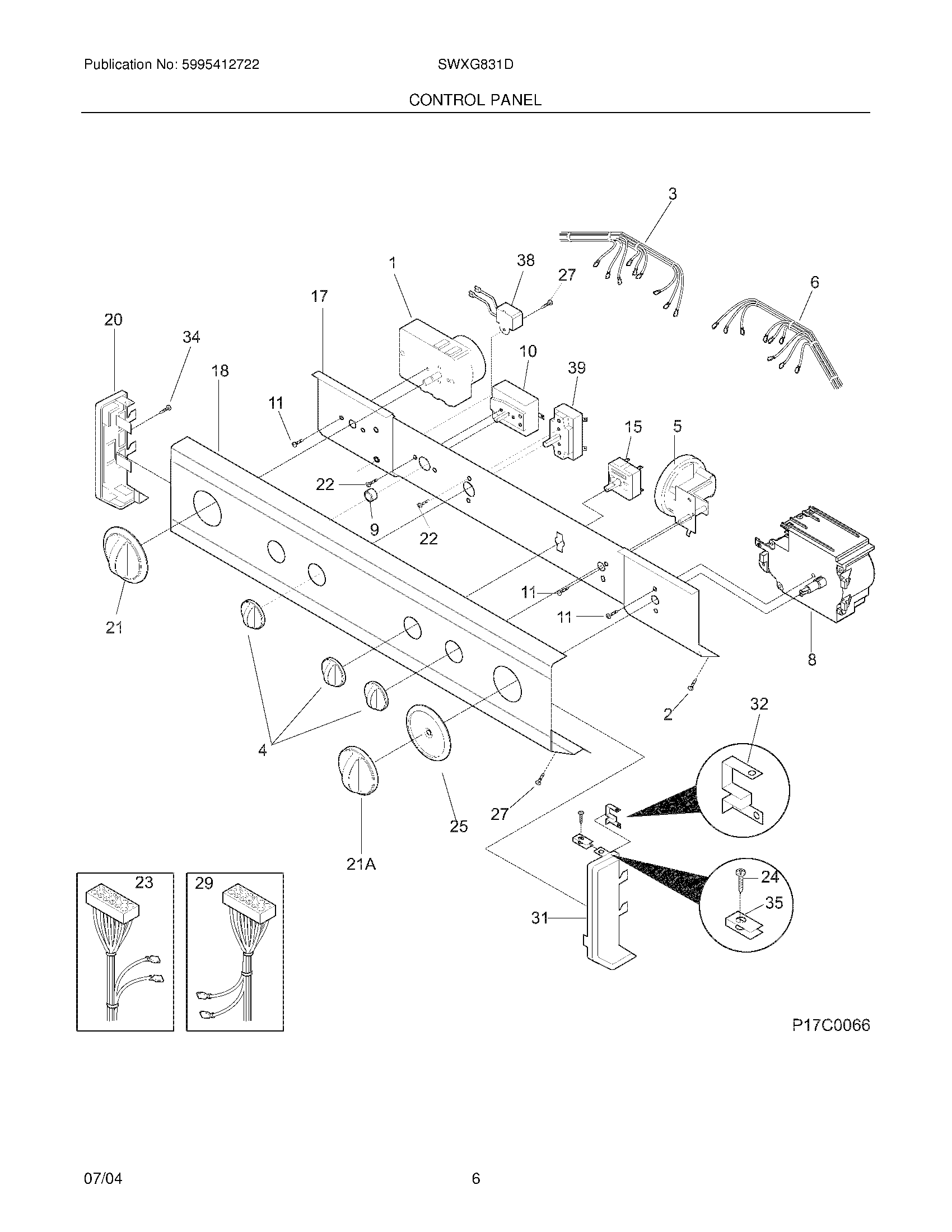

SWXG831DQ0 07 – CONTROL PANEL

Products

Position	Product
NI	134101400 Frigidaire Dryer Kit Terminal Block
NI	131209800 Frigidaire Clamp
NI	5303161300 Frigidaire Strap
1	TIMER
2	131168200 Frigidaire Dryer Screw
3	WCI 134066100
4	WCI 131873405
5	134422700 Frigidaire Switch
6	WCI 134122200
8	WASHER TIMER
9	Button,start switch ,bisque ,push type
10	WCI 131628900
11	218359202 Frigidaire Refrigerator Screw
15	WCI 131620800
17	WCI 131983410
18	WCI 134417100
20	WCI 131288104
21	WCI 131873305
21A	WCI 131977204
22	WCI 131311700
23	WCI 131848700
24	134156200 Frigidaire Screw
25	WCI 131976805
27	131892100 Frigidaire Screw
29	WCI 134113400
31	WCI 131288214
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303286537
39	Switch,rotary ,2 position
