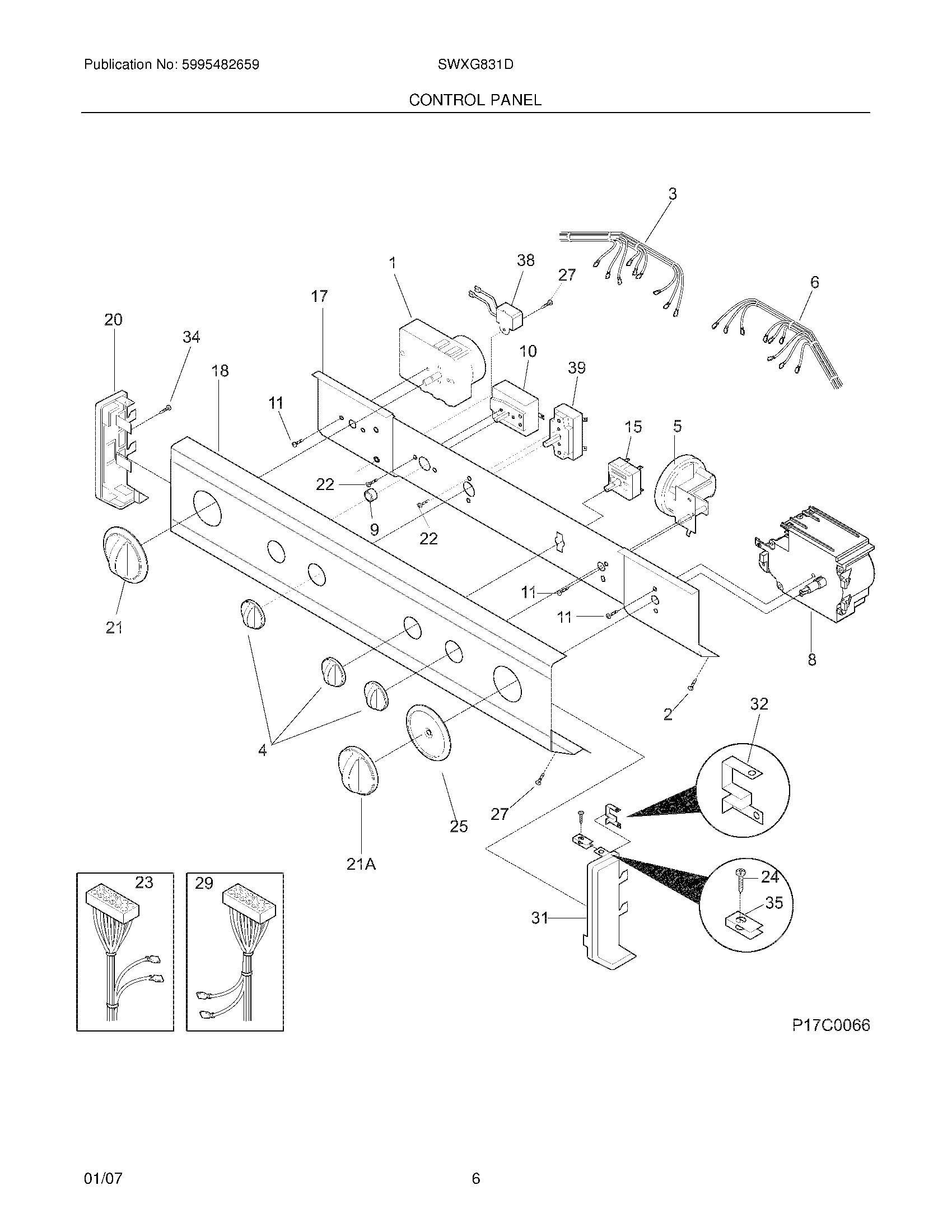

SWXG831DS1 07 – CONTROL PANEL

Products

Position	Product
NI	134154100 Frigidaire Screw 10-32 x 0.375 Co
NI	134101400 Frigidaire Dryer Kit Terminal Block
1	TIMER
2	131168200 Frigidaire Dryer Screw
3	WCI 134066100
4	131873401 Frigidaire Washer Control Knob
5	134422700 Frigidaire Switch
6	WCI 134542500
8	WASHER TIMER
9	WCI 131111501
10	WCI 131628900
11	218359202 Frigidaire Refrigerator Screw
15	WCI 134410100
17	WCI 134263400
18	WCI 134411000
20	WCI 131288101
21	131873304 Frigidaire Dryer Timer Knob White
21A	WCI 131977201
22	WCI 131311700
23	WCI 134605800
24	134156200 Frigidaire Screw
25	WCI 131976804
27	131892100 Frigidaire Screw
29	WCI 134689400
31	WCI 131288211
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303286537
39	WCI 134400000
