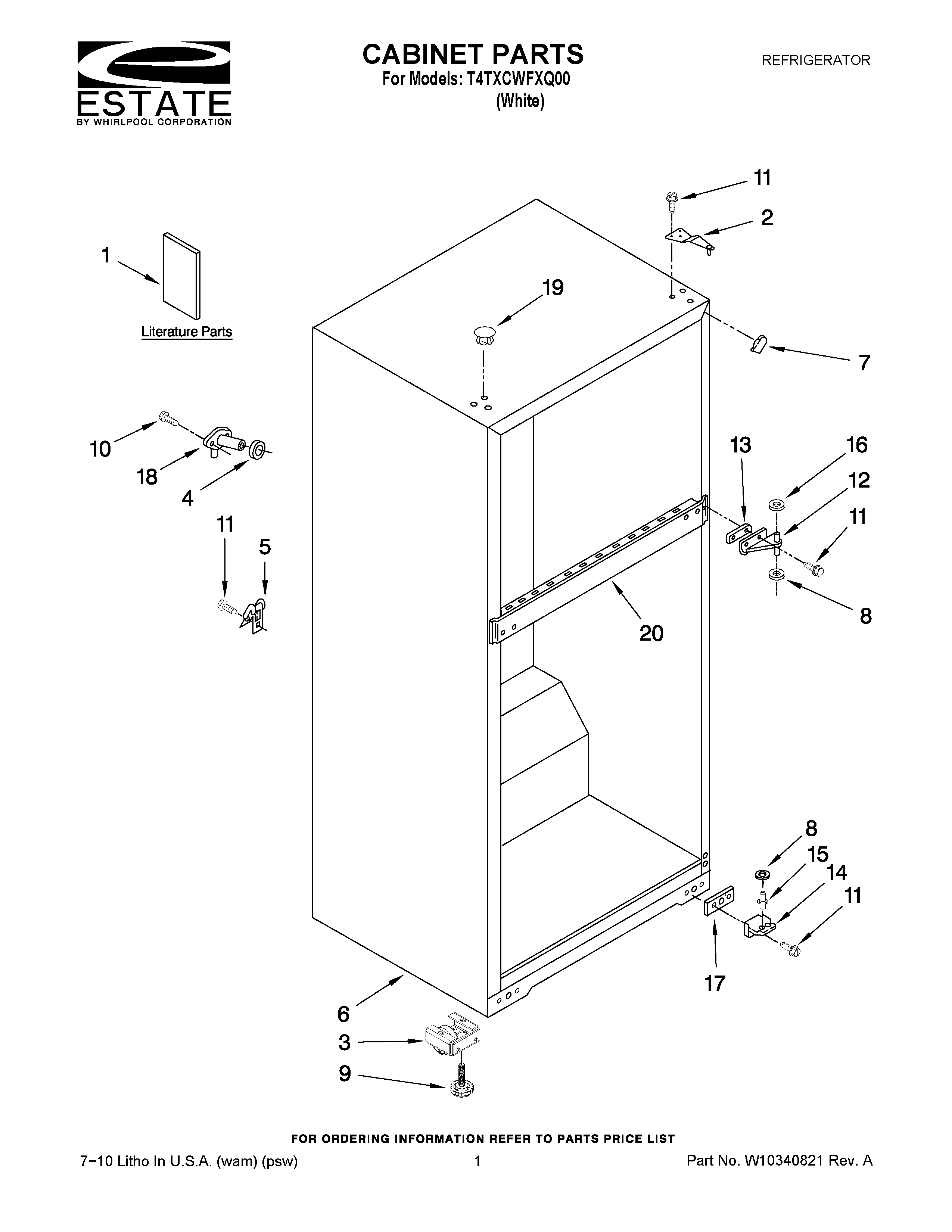

T4TXCWFXQ00 01 – CABINET PARTS

T4TXCWFXQ00 01 – CABINET PARTS

Written by

in

T4TXCWFXQ00 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1ENERGY LABEL
1Service & Wiring Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3WPW10142530 Whirlpool Refrigerator Cabinet Roller
4WP1106508 Whirlpool Refrigerator Gasket
5549193 Whirlpool Refrigerator Power Clamp
7W10859322 Whirlpool Refrigerator Filler
9WPW10133299 Whirlpool Refrigerator Screw
10WP488729 Whirlpool Refrigerator Door Screw
11WP489497 Whirlpool Screw
12WP2166037 Whirlpool Refrigerator Door Hinge
132166043 Whirlpool Refrigerator Shim
14WP2325482 Whirlpool Bottom Hinge
15WP2325483 Whirlpool Hinge Pin
16WP487802 Whirlpool Refrigerator Washer
17WP2201567 Whirlpool Hinge Shim
18WP2196157 Whirlpool Fill Tube
19WP2151652 Whirlpool Refrigerator Button Plug
20CABINET (NOT A SERVICEABLE PART)
