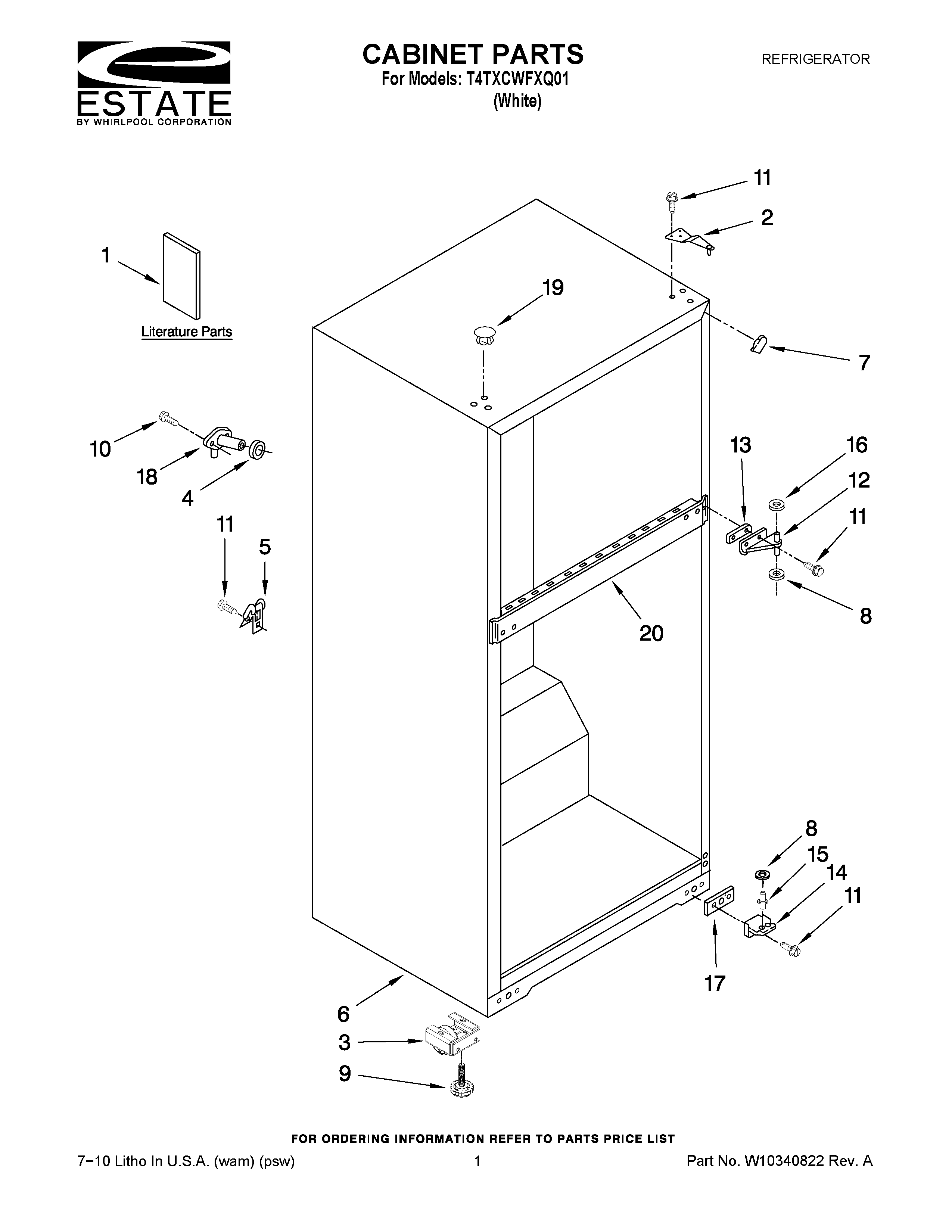

T4TXCWFXQ01 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	SERVICE & WIRING SHEET
1	ENERGY LABEL
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WPW10142530 Whirlpool Refrigerator Cabinet Roller
4	WP1106508 Whirlpool Refrigerator Gasket
5	549193 Whirlpool Refrigerator Power Clamp
7	W10859322 Whirlpool Refrigerator Filler
9	WPW10133299 Whirlpool Refrigerator Screw
10	WP488729 Whirlpool Refrigerator Door Screw
11	WP489497 Whirlpool Screw
12	WP2166037 Whirlpool Refrigerator Door Hinge
13	2166043 Whirlpool Refrigerator Shim
14	WP2325482 Whirlpool Bottom Hinge
15	WP2325483 Whirlpool Hinge Pin
16	WP487802 Whirlpool Refrigerator Washer
17	WP2201567 Whirlpool Hinge Shim
18	WP2196157 Whirlpool Fill Tube
19	WP2151652 Whirlpool Refrigerator Button Plug
20	CABINET (NOT A SERVICEABLE PART)
