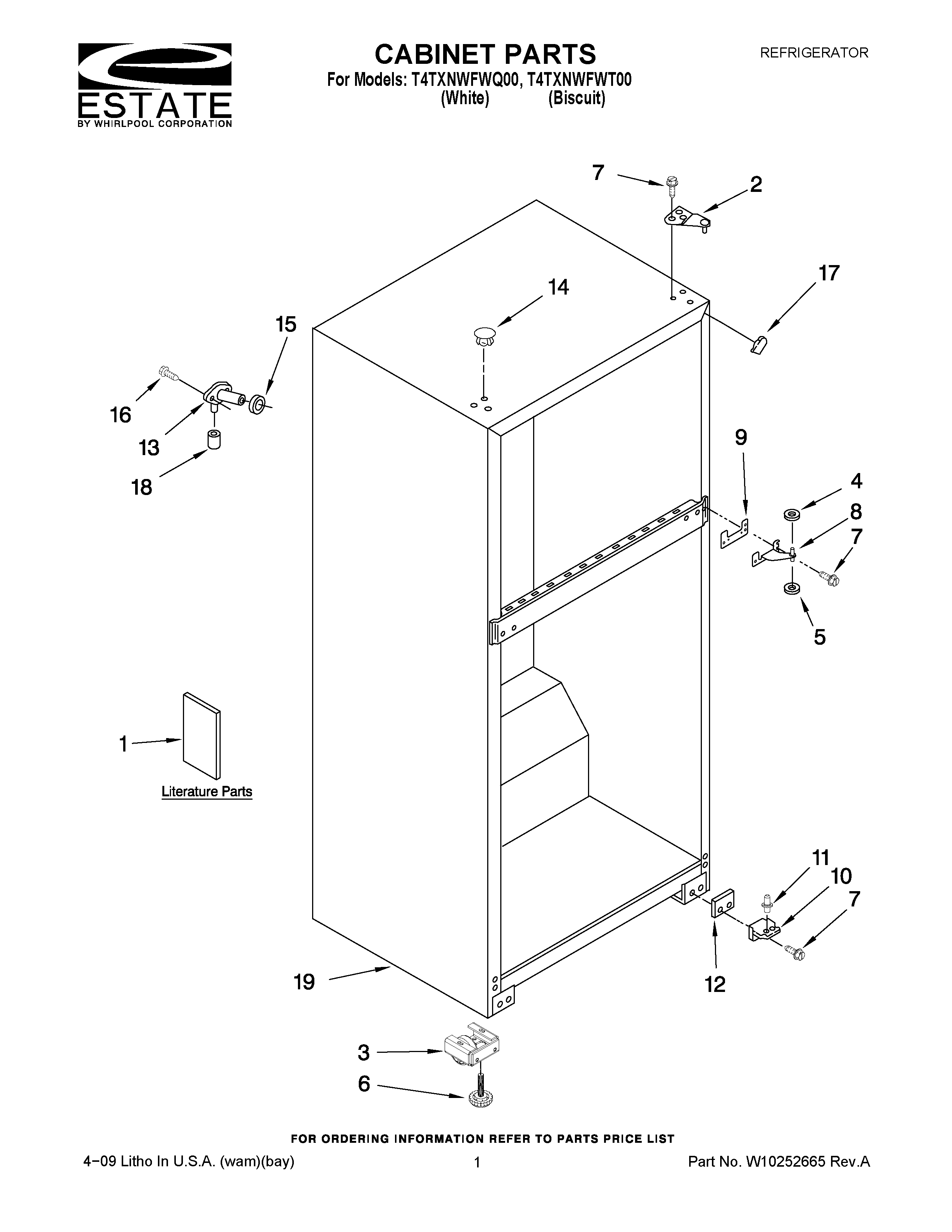

T4TXNWFWT00 01 – CABINET PARTS

T4TXNWFWT00 01 – CABINET PARTS

Written by

in

T4TXNWFWT00 01 – CABINET PARTS

Products

PositionProduct
1ENERGY LABEL
1Service & Wiring Sheet
1Use & Care Guide
2WP2261963 Whirlpool Refrigerator Door Hinge
3WPW10142530 Whirlpool Refrigerator Cabinet Roller
4WP487802 Whirlpool Refrigerator Washer
5WP487576 Whirlpool Washer
6WPW10133299 Whirlpool Refrigerator Screw
7WP489497 Whirlpool Screw
8WP2166037 Whirlpool Refrigerator Door Hinge
92166043 Whirlpool Refrigerator Shim
10WP2325482 Whirlpool Bottom Hinge
11WP2325483 Whirlpool Hinge Pin
12WP2201567 Whirlpool Hinge Shim
13WP2196157 Whirlpool Fill Tube
14Hole Plug (6) (Biscuit)
14WP2151652 Whirlpool Refrigerator Button Plug
15WP1106508 Whirlpool Refrigerator Gasket
16WP488729 Whirlpool Refrigerator Door Screw
17W10859322 Whirlpool Refrigerator Filler
172202282 Whirlpool Refrigerator Filler
18WP487996 Whirlpool Refrigerator Cap Tube
19Cabinet, (Not A Serviceable Part)
