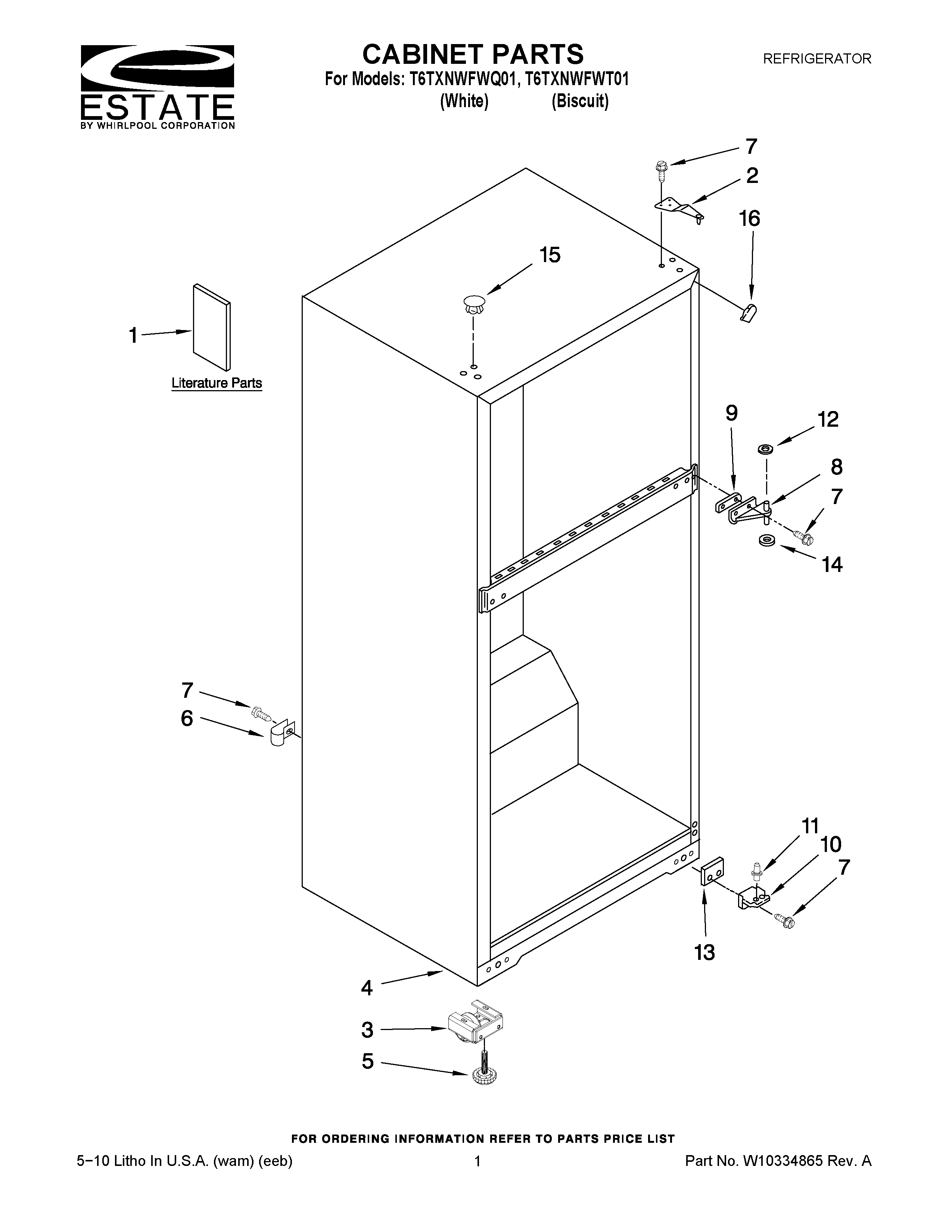

T6TXNWFWQ01 01 – CABINET PARTS

T6TXNWFWQ01 01 – CABINET PARTS

Written by

in

T6TXNWFWQ01 01 – CABINET PARTS

Products

PositionProduct
1ENERGY LABEL
1Use & Care Guide
1Service & Wiring Sheet
1DO-IT-YOURSELF MANUAL, REF./ FZR.
2WP2261963 Whirlpool Refrigerator Door Hinge
3WPW10142530 Whirlpool Refrigerator Cabinet Roller
4CABINET (NOT A SERVICEABLE PART)
5WPW10133299 Whirlpool Refrigerator Screw
6549193 Whirlpool Refrigerator Power Clamp
7WP489497 Whirlpool Screw
8WP2166037 Whirlpool Refrigerator Door Hinge
92166043 Whirlpool Refrigerator Shim
10WP2325482 Whirlpool Bottom Hinge
11WP2325483 Whirlpool Hinge Pin
12WP487576 Whirlpool Washer
13WP2201567 Whirlpool Hinge Shim
14WP489467 Whirlpool Hinge Shim
15Hole Plug (6) (Biscuit)
15WP2151652 Whirlpool Refrigerator Button Plug
16W10859322 Whirlpool Refrigerator Filler
162202282 Whirlpool Refrigerator Filler
