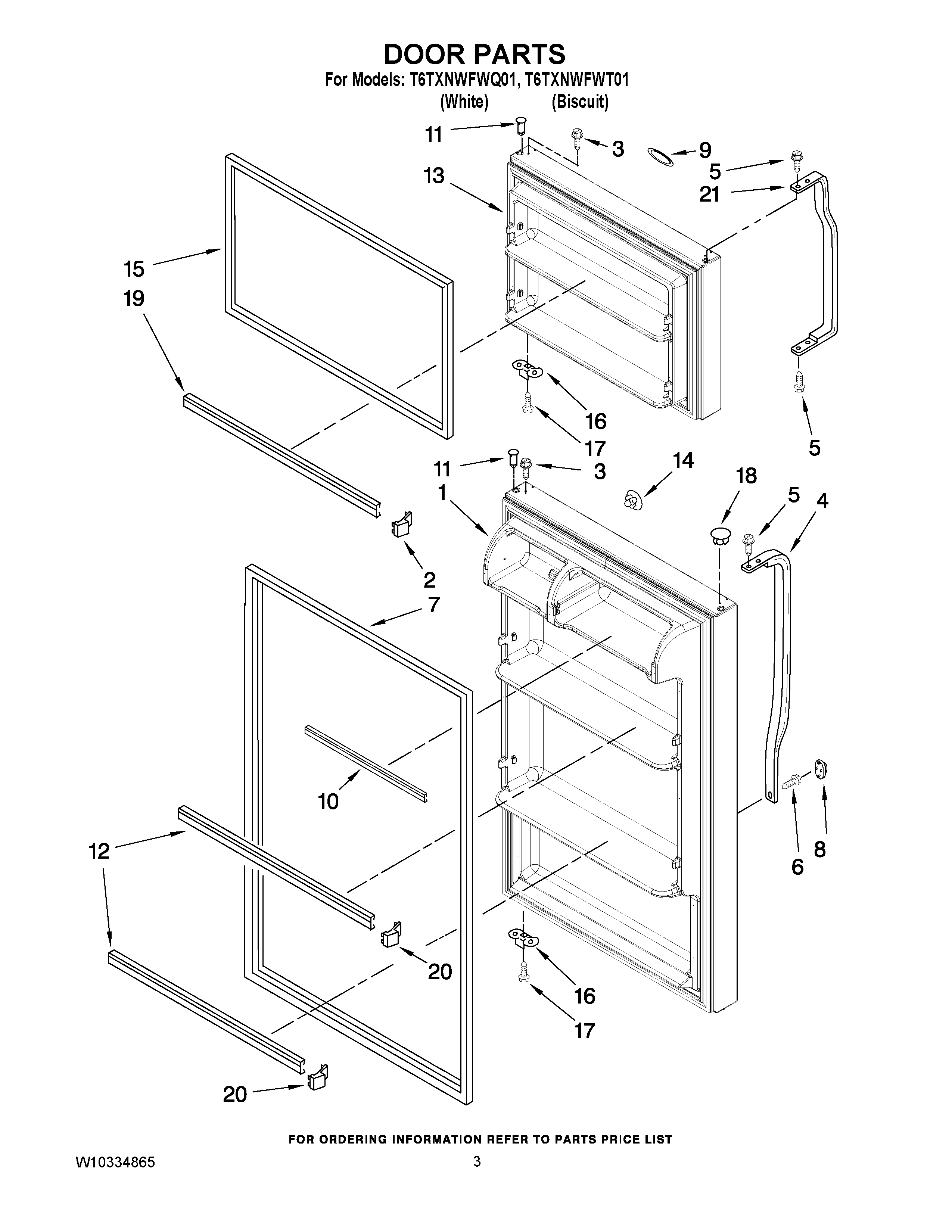

T6TXNWFWQ01 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ITEMNo. 9) (BISCUIT)
1	2316342W Whirlpool Refrigerator Door FIP White
2	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
3	WP8281206 Whirlpool Refrigerator Screw
4	WP2221946T Whirlpool Refrigerator Handle
4	HANDLE
5	WP489357 Whirlpool Recessed Screw
6	WP8281146 Whirlpool Screw
7	WP2319266T Whirlpool Refrigerator FIP Gasket
8	Cover, Screw (Biscuit)
8	WP2202819W Whirlpool Refrigerator Cover
9	Nameplate (Biscuit)
9	NAMEPLATE
10	W11129820 Whirlpool Refrigerator Door Trim
11	WP2183003 Whirlpool Thimble
12	WP2266738 Whirlpool Refrigerator Door Trim
13	2316343T Whirlpool Refrigerator Door Bin
13	Freezer Door (Includes Item 23) (White)
14	WP2189000 Whirlpool Refrigerator Handle Plug
14	WP2200936 Whirlpool Refrigerator Handle Plug
15	WP2319263T Whirlpool Refrigerator FIP Gasket
16	W11745278 Whirlpool Bracket
17	WP488921 Whirlpool Refrigerator Screw
18	WP2212649 Whirlpool Refrigerator Button Plug
18	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
19	WP2266727 Whirlpool Refrigerator Door Trim
20	ENDCAP
21	HANDLE
21	WP2215015 Whirlpool Refrigerator Handle
