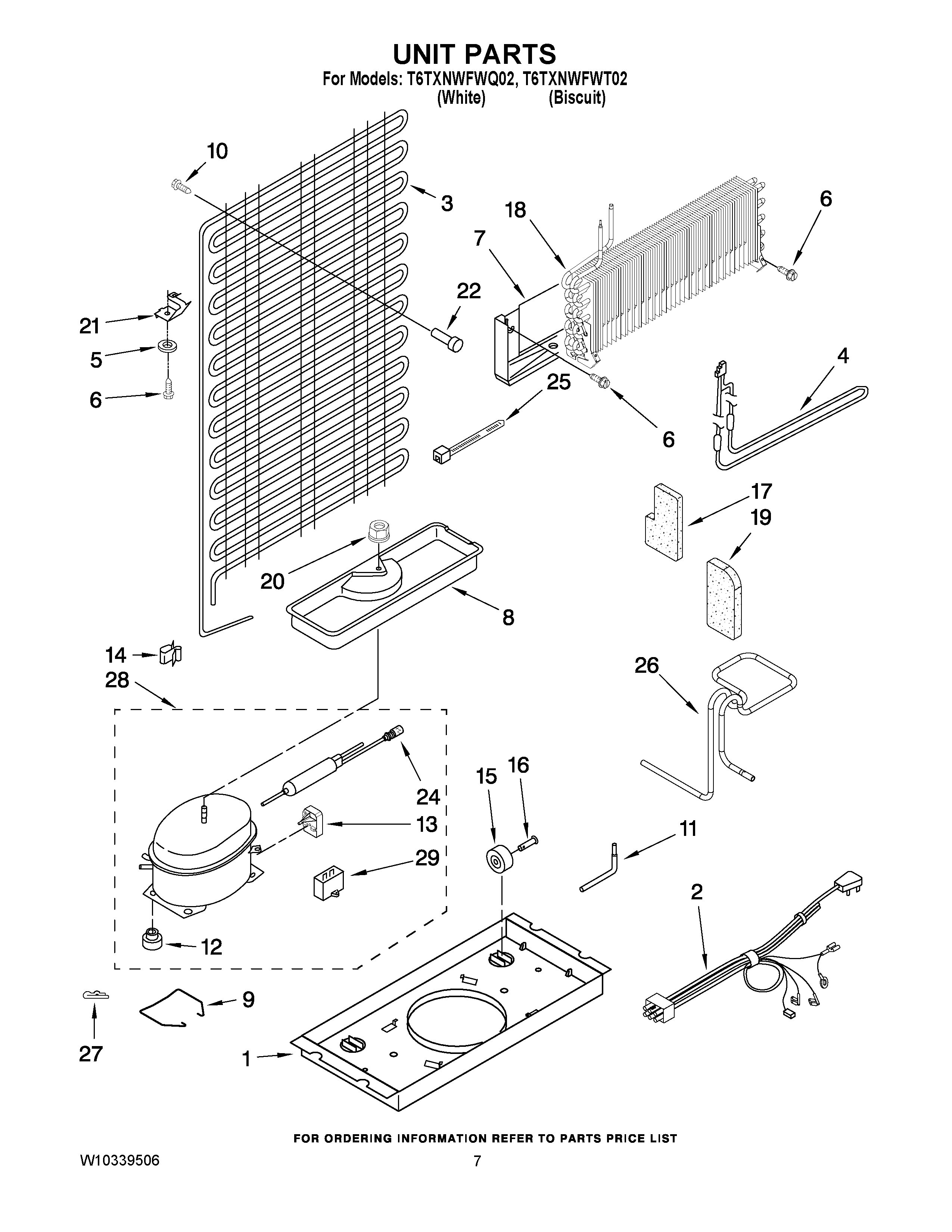

T6TXNWFWQ02 04 – UNIT PARTS

Products

Position	Product
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (1/2“)
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
1	WPW10222451 Whirlpool Refrigerator Support
2	W10151654 Whirlpool Refrigerator Wire Harness
3	WPW10219348 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	8526417 Whirlpool Washer
6	WP489442 Whirlpool Refrigerator Screw
7	Heat Shield
8	Tray, Evaporator
9	2212996 Whirlpool Refrigerator Retainer
10	Screw
11	W11676464 Whirlpool Tube
12	WPW10169124 Whirlpool Refrigerator Grommet
13	W10805623 Whirlpool Refrigerator Start Device
14	W10812038 Whirlpool Refrigerator Clip
15	WPW10475495 Whirlpool Roller Assembly
16	WP2264756 Whirlpool Refrigerator Rivet
17	8201619 Whirlpool Refrigerator Support Assembly
18	WP2263920 Whirlpool Refrigerator Evaporator
20	285002 Whirlpool Nut
21	4386951 Whirlpool Refrigerator Clip
22	2258452 Whirlpool Refrigerator Spacer
24	WPW10143759 Whirlpool Dryer Filter
24	W10843121 Whirlpool Refrigerator Tube
25	WPW10339879 Whirlpool Wire Tie
26	W10289688 Whirlpool Refrigerator Tube
27	Clip, Compressor
28	W10285060 Whirlpool Refrigerator Compressor
29	WPW10662129 Whirlpool Refrigerator Run Capacitor
