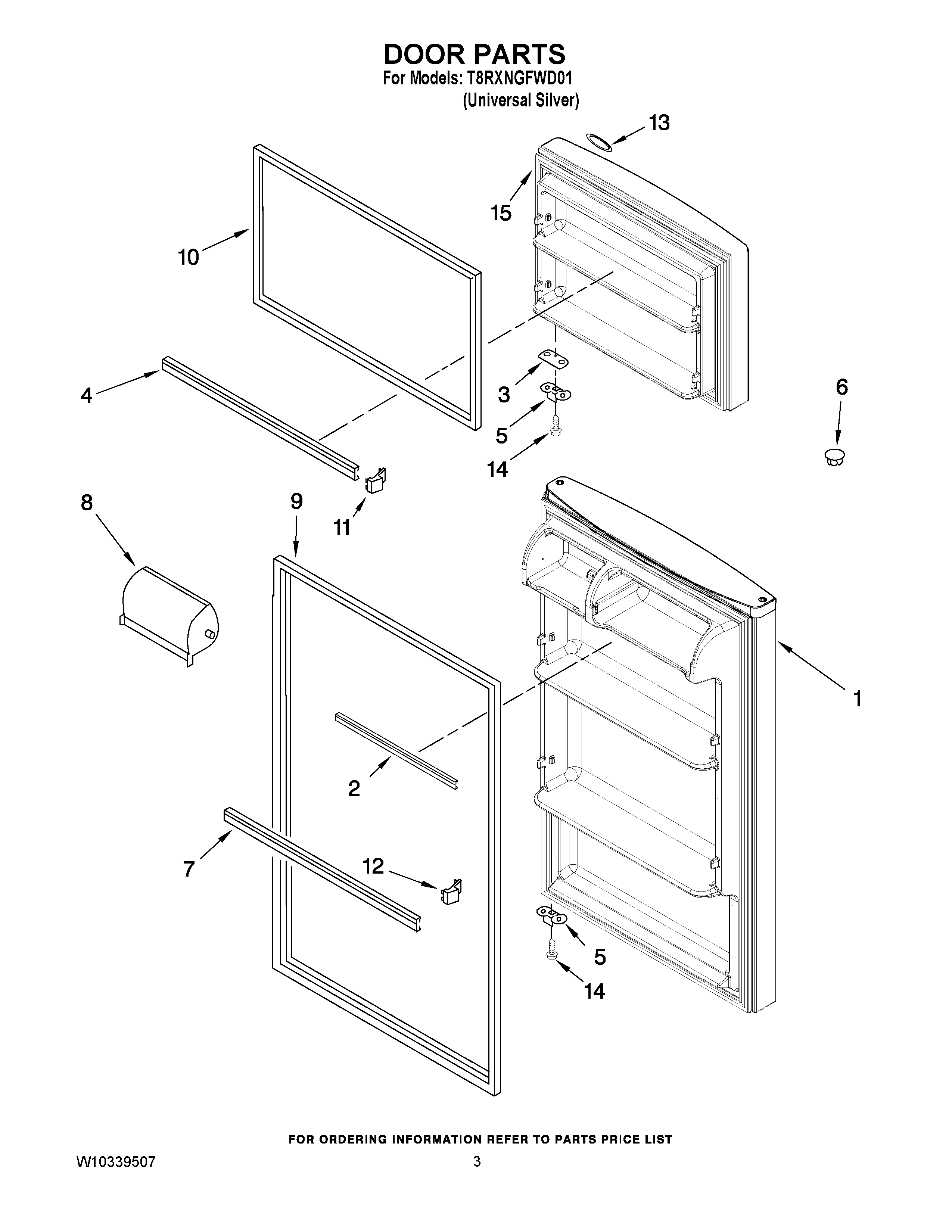

T8RXNGFWD01 02 – DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 9) (UNIVERSAL SILVER)
2W11129820 Whirlpool Refrigerator Door Trim
32258681B Whirlpool Refrigerator Shim
4WP2266727 Whirlpool Refrigerator Door Trim
5W11745278 Whirlpool Bracket
6WP2212651 Whirlpool Refrigerator Button Plug
7WP2266738 Whirlpool Refrigerator Door Trim
8DOOR-COMP
9WP2319264B Whirlpool Door Gasket
10WP2319263B Whirlpool Refrigerator Black Door Gasket
12WP2156003 Whirlpool Refrigerator Door Shelf End Cap
13WP2213265 Whirlpool Refrigerator Nameplate
14SCREW
15FREEZER DOOR (INCLUDES ITEM 16) (UNIVERSAL SILVER)
