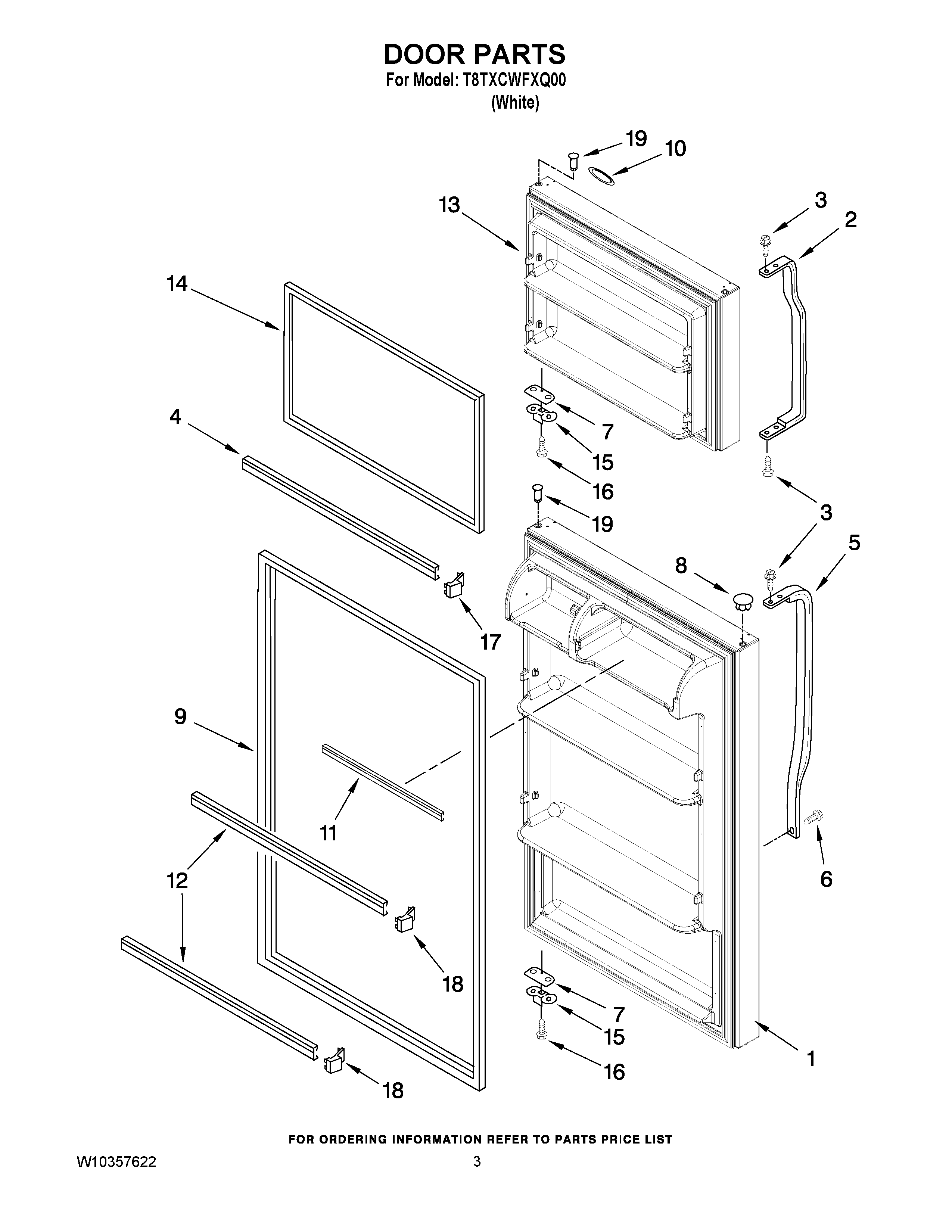

T8TXCWFXQ00 02 – DOOR PARTS

T8TXCWFXQ00 02 – DOOR PARTS

Written by

in

T8TXCWFXQ00 02 – DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR ASSEMBLY (INCLUDES ILLUS. 9) (WHITE)
2HANDLE
3WP489357 Whirlpool Recessed Screw
4WP2266727 Whirlpool Refrigerator Door Trim
5HANDLE
6WP8281206 Whirlpool Refrigerator Screw
7WP2258681W Whirlpool Refrigerator Shim
8WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
9WP2319264T Whirlpool Door Gasket
10NAMEPLATE
11W11129820 Whirlpool Refrigerator Door Trim
12WP2266738 Whirlpool Refrigerator Door Trim
13FREEZER DOOR INCLUDES (10 & 14) (WHITE)
14WP2319263T Whirlpool Refrigerator FIP Gasket
15W11745278 Whirlpool Bracket
16WP488921 Whirlpool Refrigerator Screw
17WP2156003 Whirlpool Refrigerator Door Shelf End Cap
18ENDCAP
19WP2183003 Whirlpool Thimble
