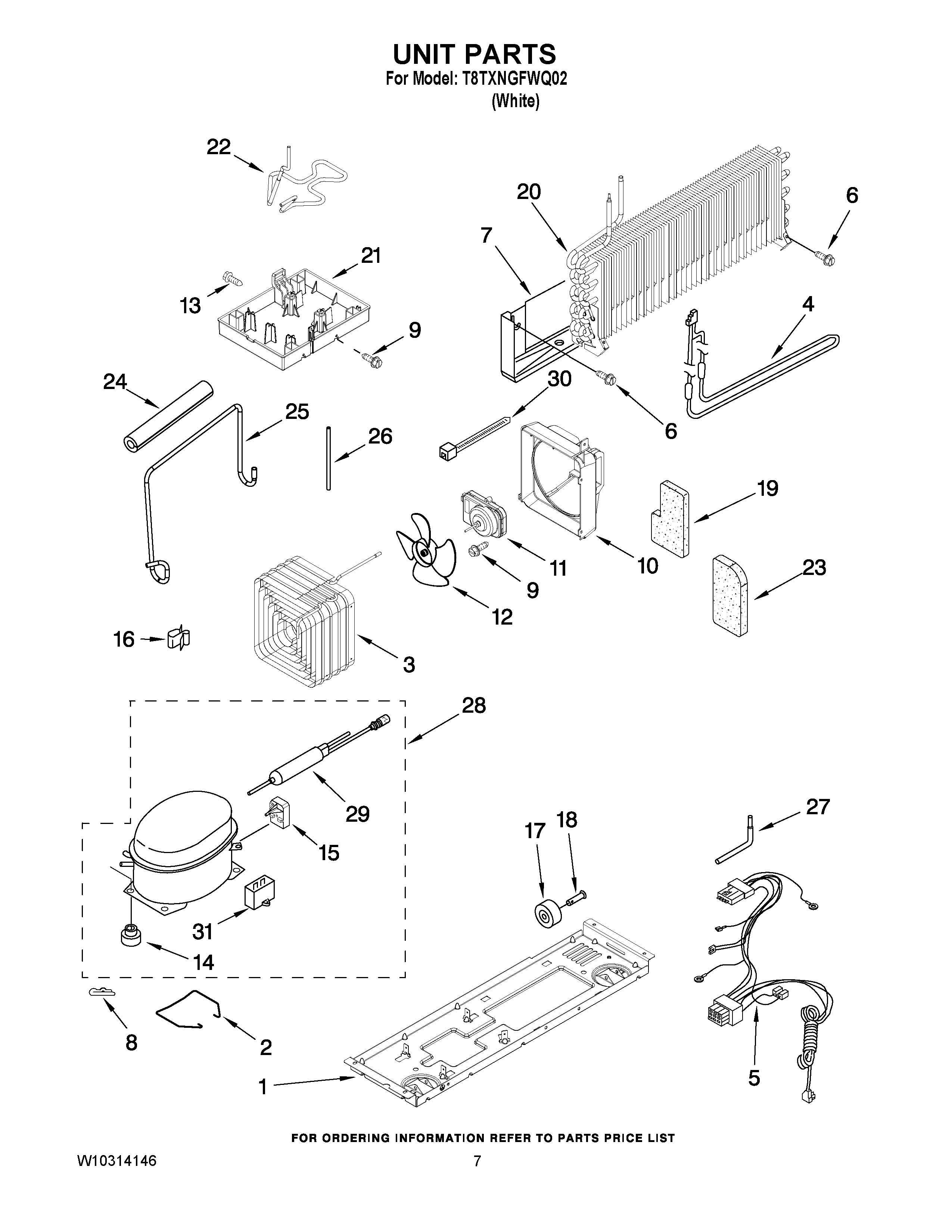

T8TXNGFWQ02 04 – UNIT PARTS

T8TXNGFWQ02 04 – UNIT PARTS

Written by

in

T8TXNGFWQ02 04 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10222450 Whirlpool Refrigerator Support
2	2264835 Whirlpool Clip
3	WP2264004 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	WPW10151677 Whirlpool Refrigerator Wire Harness
6	WP489442 Whirlpool Refrigerator Screw
7	Heat Shield
8	Clip, Compressor
9	WPW10171469 Whirlpool Refrigerator Screw
10	WP2263929 Whirlpool Refrigerator Air Baffle
11	W11578915 Whirlpool Condenser Motor
12	2264129 Whirlpool Refrigerator Fan Blade
13	WP489489 Whirlpool Screw
14	WP2163786 Whirlpool Refrigerator Grommet
15	2320151 Whirlpool Refrigerator Start Device
15	WP2320150 Whirlpool Refrigerator Start Device
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
21	WP2263928 Whirlpool Refrigerator Evaporator Tray
22	W10209728 Whirlpool Tube
24	2264838 Whirlpool Refrigerator Sleeve
25	W10209727 Whirlpool Refrigerator Extension Tube
26	2264278 Whirlpool Refrigerator Extension
27	W11676464 Whirlpool Tube
28	W10309988 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
31	WPW10662129 Whirlpool Refrigerator Run Capacitor
