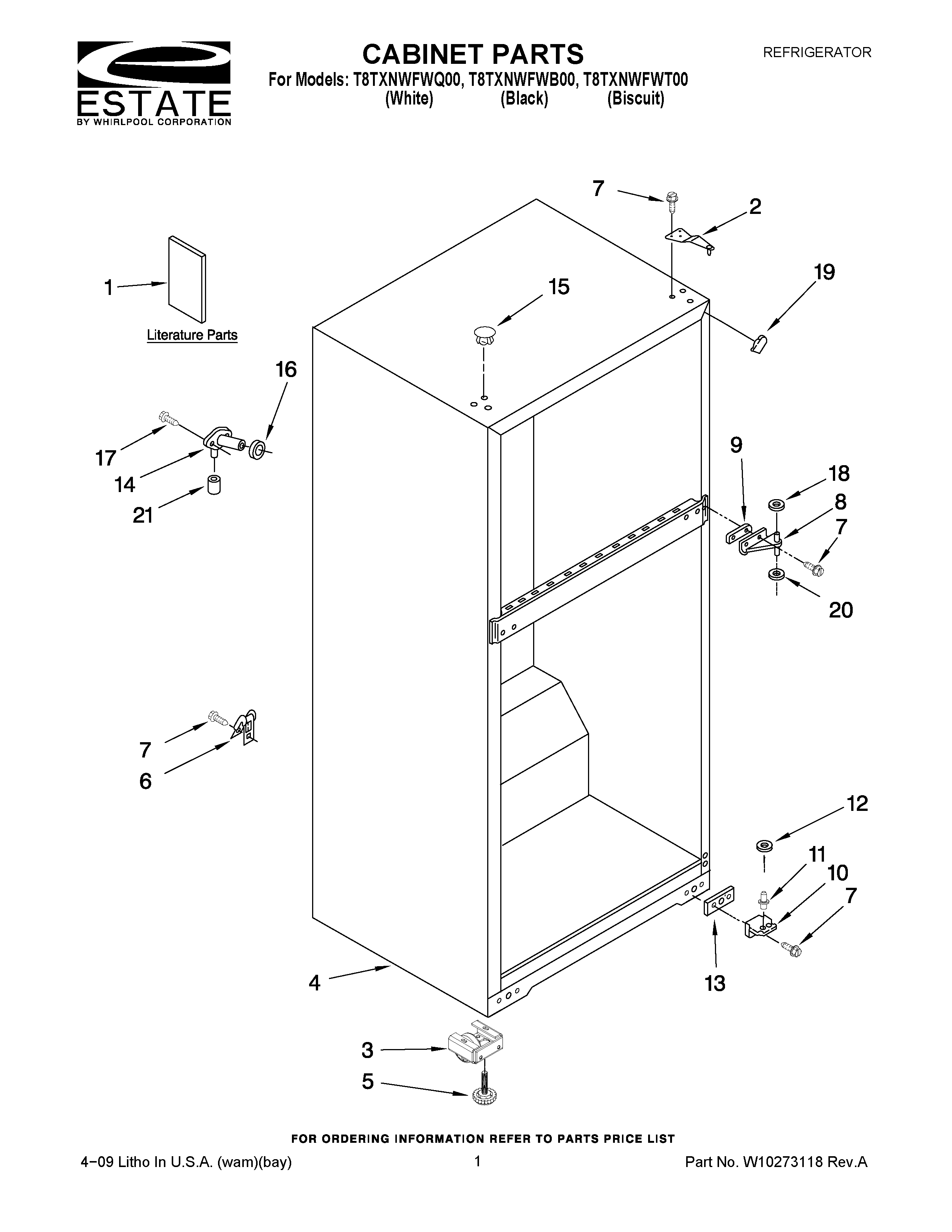

T8TXNWFWQ00 01 – CABINET PARTS

Products

Position	Product
1	ENERGY LABEL
1	Use & Care Guide
1	Service & Wiring Sheet
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
2	WP2261963 Whirlpool Refrigerator Door Hinge
4	Cabinet, (Not A Serviceable Part)
5	WPW10142530 Whirlpool Refrigerator Cabinet Roller
6	549193 Whirlpool Refrigerator Power Clamp
7	WP489497 Whirlpool Screw
8	WP2166037 Whirlpool Refrigerator Door Hinge
9	2166043 Whirlpool Refrigerator Shim
10	WP2325482 Whirlpool Bottom Hinge
11	WP2325483 Whirlpool Hinge Pin
13	WP2201567 Whirlpool Hinge Shim
14	WP2196157 Whirlpool Fill Tube
15	WP2151652 Whirlpool Refrigerator Button Plug
16	WP1106508 Whirlpool Refrigerator Gasket
17	WP488729 Whirlpool Refrigerator Door Screw
18	WP489467 Whirlpool Hinge Shim
19	W10859322 Whirlpool Refrigerator Filler
19	W11500943 Whirlpool Refrigerator Filler
19	2202282 Whirlpool Refrigerator Filler
20	WP487576 Whirlpool Washer
21	WP487996 Whirlpool Refrigerator Cap Tube
