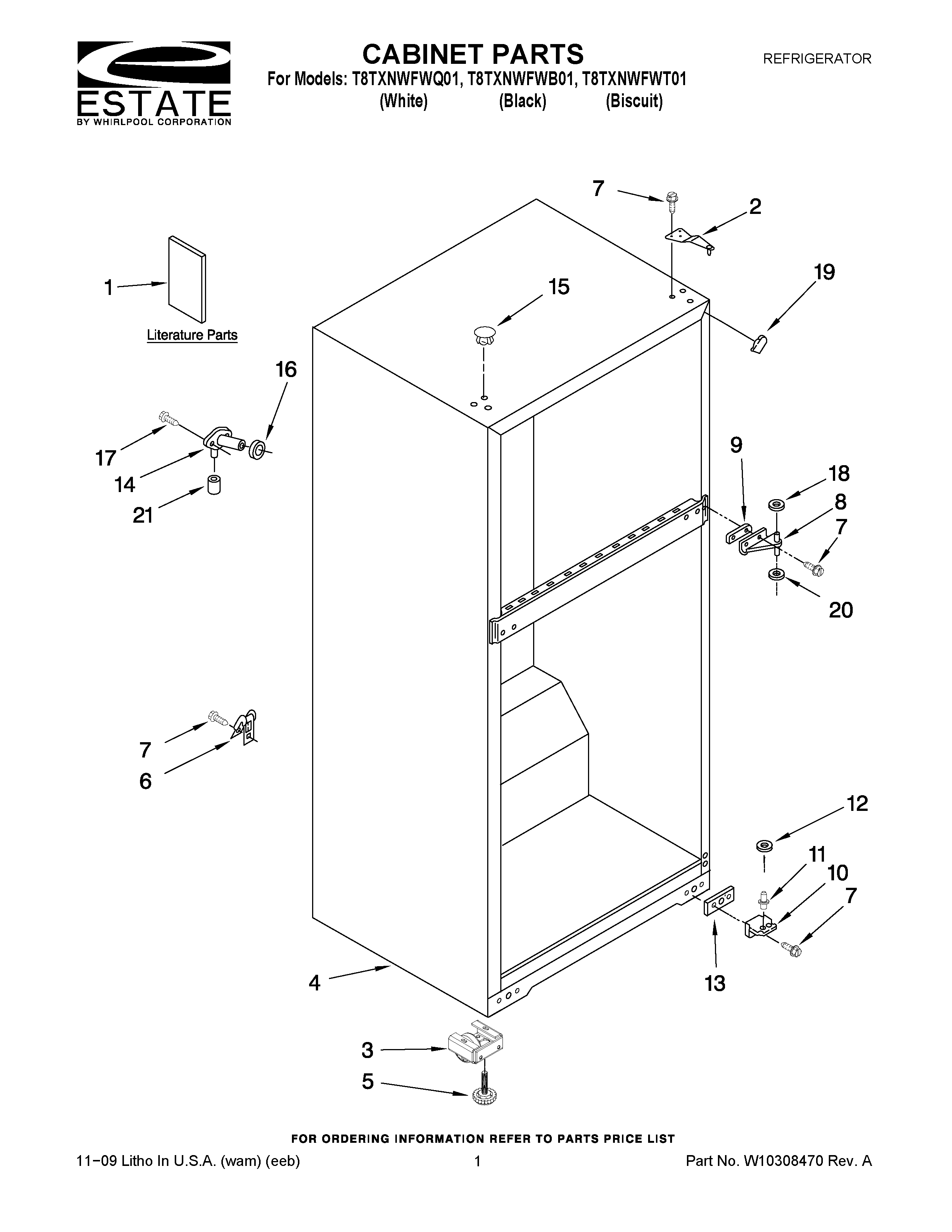

T8TXNWFWQ01 01 – CABINET PARTS

Products

PositionProduct
1ENERGY LABEL
1Use & Care Guide
1SERVICE & WIRING SHEET
1DO-IT-YOURSELF MANUAL, REF./ FZR.
2WP2261963 Whirlpool Refrigerator Door Hinge
3WPW10142530 Whirlpool Refrigerator Cabinet Roller
4CABINET (NOT A SERVICEABLE PART)
5WPW10133299 Whirlpool Refrigerator Screw
6549193 Whirlpool Refrigerator Power Clamp
7WP489497 Whirlpool Screw
8WP2166037 Whirlpool Refrigerator Door Hinge
92166043 Whirlpool Refrigerator Shim
10WP2325482 Whirlpool Bottom Hinge
11WP2325483 Whirlpool Hinge Pin
13WP2201567 Whirlpool Hinge Shim
14WP2196157 Whirlpool Fill Tube
15Hole Plug (6) (Biscuit)
15WP2183998 Whirlpool Refrigerator Button Plug
15WP2151652 Whirlpool Refrigerator Button Plug
16WP1106508 Whirlpool Refrigerator Gasket
17WP488729 Whirlpool Refrigerator Door Screw
18WP489467 Whirlpool Hinge Shim
19W10859322 Whirlpool Refrigerator Filler
192202282 Whirlpool Refrigerator Filler
19W11500943 Whirlpool Refrigerator Filler
20WP487576 Whirlpool Washer
21WP487996 Whirlpool Refrigerator Cap Tube
