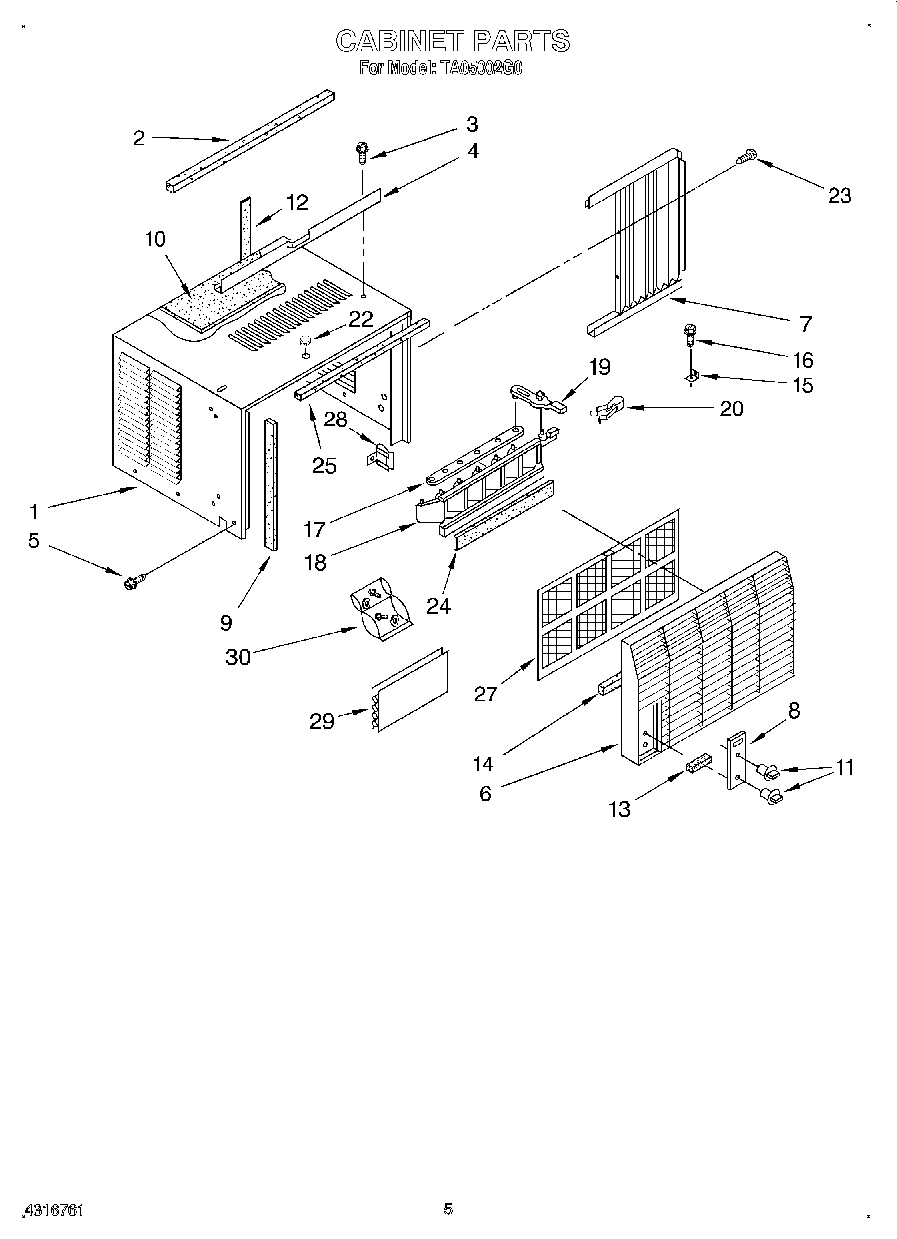

TA05002G0 03 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3WP308685 Whirlpool Microwave Screw
4Channel, Top
5WP489069 Whirlpool Compactor Screw
6Front, Cabinet Assembly
7Curtain (L.S.)
7Curtain (R.S.)
8Escutcheon
9WP854334 Whirlpool Air Conditioner Sealing Strip
10Insulation, Top
11Knob, Control (2)
12Seal, Rear Grille
13Spacer, Escutcheon Plate (3)
15Bracket
16Screw, Wood 8-15 x .750
17Link, Louver (2)
18Louver, Vertical
19Handle, Louver
20Detent Spring (2)
22Cover, Hole
23Screw, 8-18 x 3/8
24Seal, Vertical Louver
25Seal
27Filter
28Clip, Vertical Louver
29212643 Whirlpool Refrigerator Permagum Sealer
30Bag, Accessory
