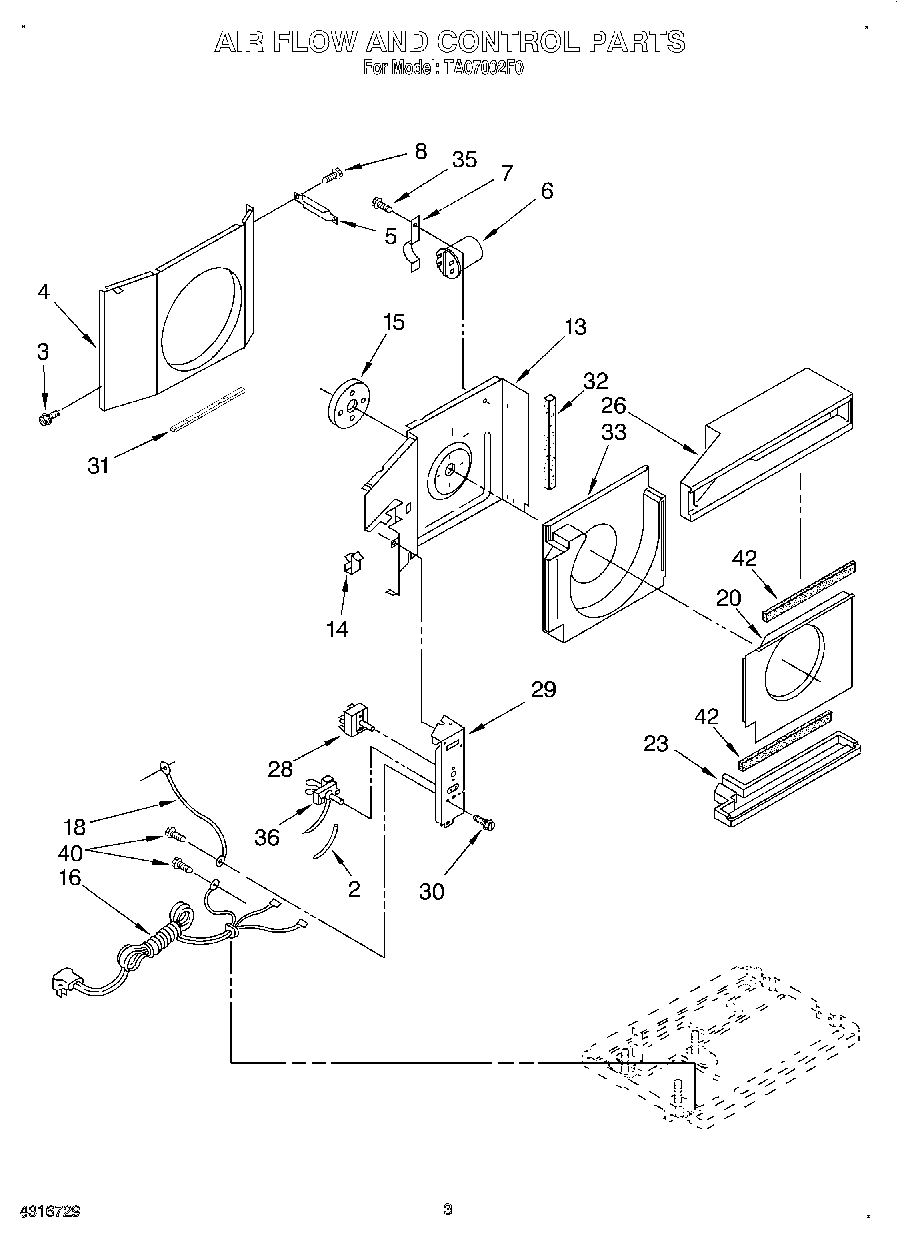

TA07002F0 02 – AIR FLOW AND CONTROL

TA07002F0 02 – AIR FLOW AND CONTROL

Written by

in

TA07002F0 02 – AIR FLOW AND CONTROL

Products

PositionProduct
2Insulation, Sleeve
3WP489069 Whirlpool Compactor Screw
4Shroud, Condenser
5Support, Unit
6Capacitor
7Bracket, Capacitor
8WP1163283 Whirlpool Air Conditioner Screw
13Wall, Dividing
14Clamp, Wiring
15Insulation, Motor
16Cord, Appliance
18Wire, Ground
20Shroud, Evaporator
23Pan, Evaporator
26Hood, Air Housing
28Switch, Rotary
29Panel, Control
30Screw, 6-32 x .175
32WP854334 Whirlpool Air Conditioner Sealing Strip
33Housing, Air
35Screw, 8 x 3/8
36Control, Temperature
40Screw 8-18 x .295
42Seal (2)
