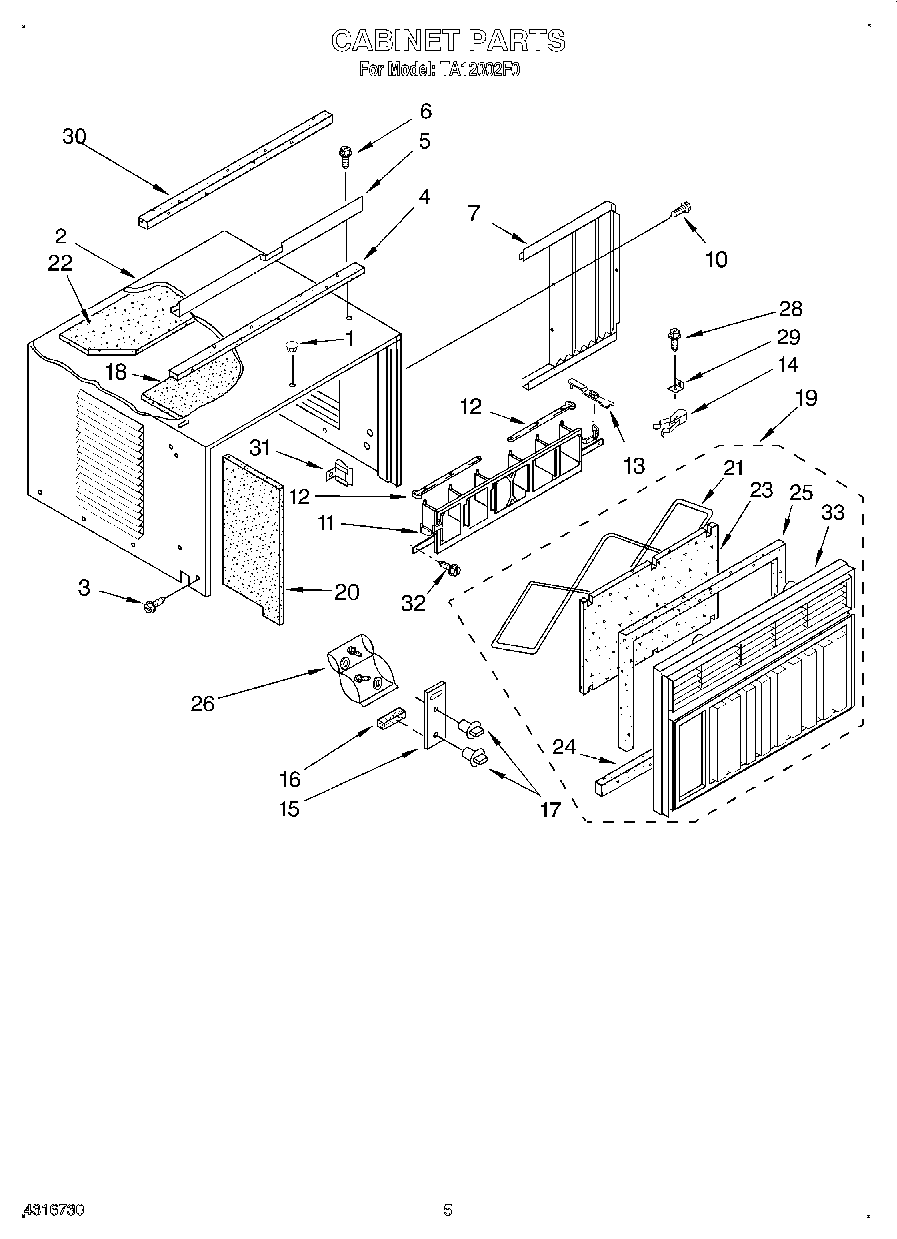

TA12002F0 03 – CABINET

Products

Position	Product
1	Cover, Hole
2	Cabinet
3	WP489069 Whirlpool Compactor Screw
4	Strip, Seal
5	Channel, Top
6	WP308685 Whirlpool Microwave Screw
7	Housing, Curtain R.S.(Includes No.8)
7	Housing, Curtain L.S. (Includes No.8)
10	Screw, 8-18 x 3/8
11	Louver, Vertical
12	Link, Vertical Louver (2)
13	Handle, Vertical Louver (2)
14	Spring, Detent (2)
15	Plate, Escutcheon
16	Spacer, Escutcheon Plate (3)
17	Knob, Control (2)
18	Insul. Cabinet Top
19	Front, Complete
20	Insul. Cabinet (Right, Side)
20	Insul. Cabinet (Left Side)
21	Retainer, Filter
22	Insul. Cabinet
23	Filter
24	Seal, Front
25	Seal, Top & Sides
26	Bag, Accessory
28	Screw, Wood 8-15 x .750
29	Bracket
30	Gasket, Meeting Rail
31	Clip, Vertical Louver
32	Screw 8-18 x .295
33	Front, Cabinet
