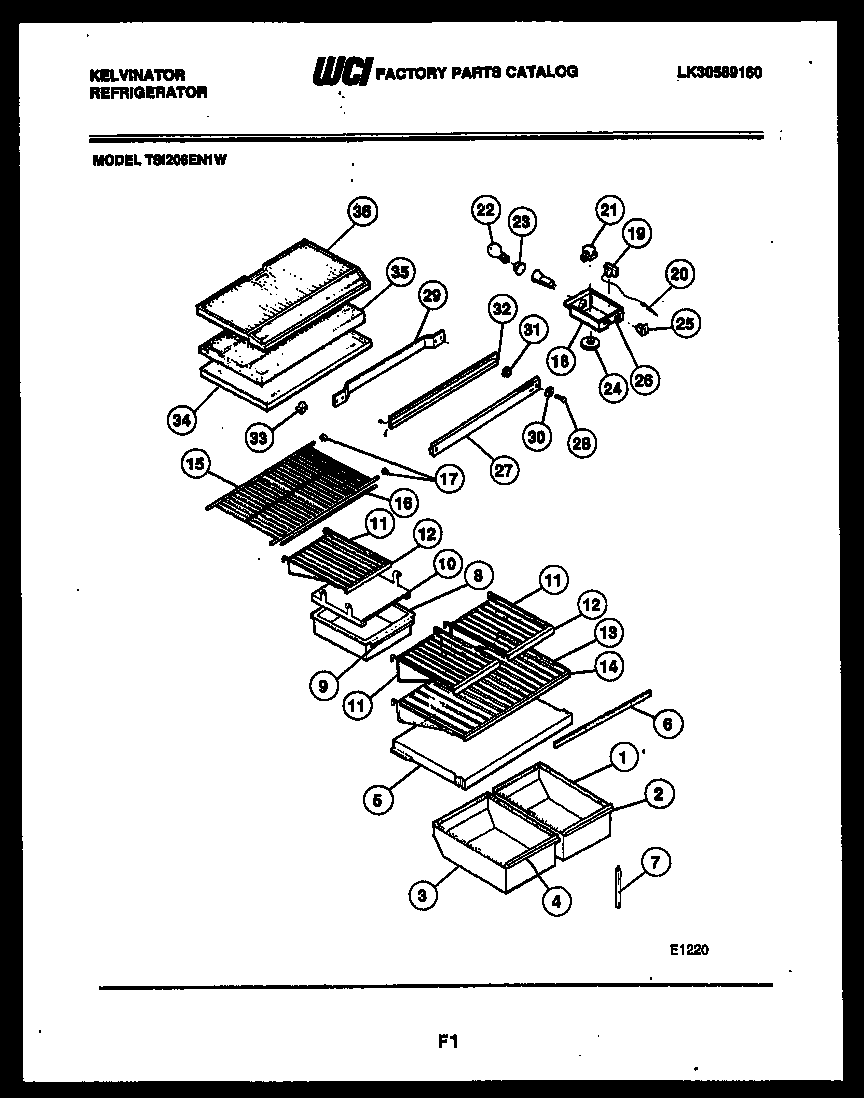

TAK140EN0T 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI 3916132
2	SCREW, BRACKET MOUNTING (4)
3	WASHER (2)
4	WCI G187921
5	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
6	CLAMP, MULLION MOUNTING
7	BOTTOM ( FREEZER )
8	DIVIDER-COMPARTMENT
8A	HARNESS, WIRING
9	TOP-REFRIGERATOR
9A	SCREW (5)
10	DEFLECTOR AIR
11	WCI G162178
12	5309918806 Frigidaire Refrigerator Light Switch Door
13B	5304455650 Frigidaire Refrigerator Screw
13A	LABEL
13	CONTROL BOX
14	KNOB
15	SWITCH SLIDE
16	TUBE
17A	WCI G107080
17	CONTROL-COLD
18	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
18A	5304455649 Frigidaire Refrigerator Screw
19	SOCKET LIGHT
20	316538904 Frigidaire Oven Lamp Light
21	215667501 Frigidaire Refrigerator Ice Tray Primary
22	WCI G172172-01
23	COVER
24	SUPPORT, CRISPER COVER
25	WCI 3205393
