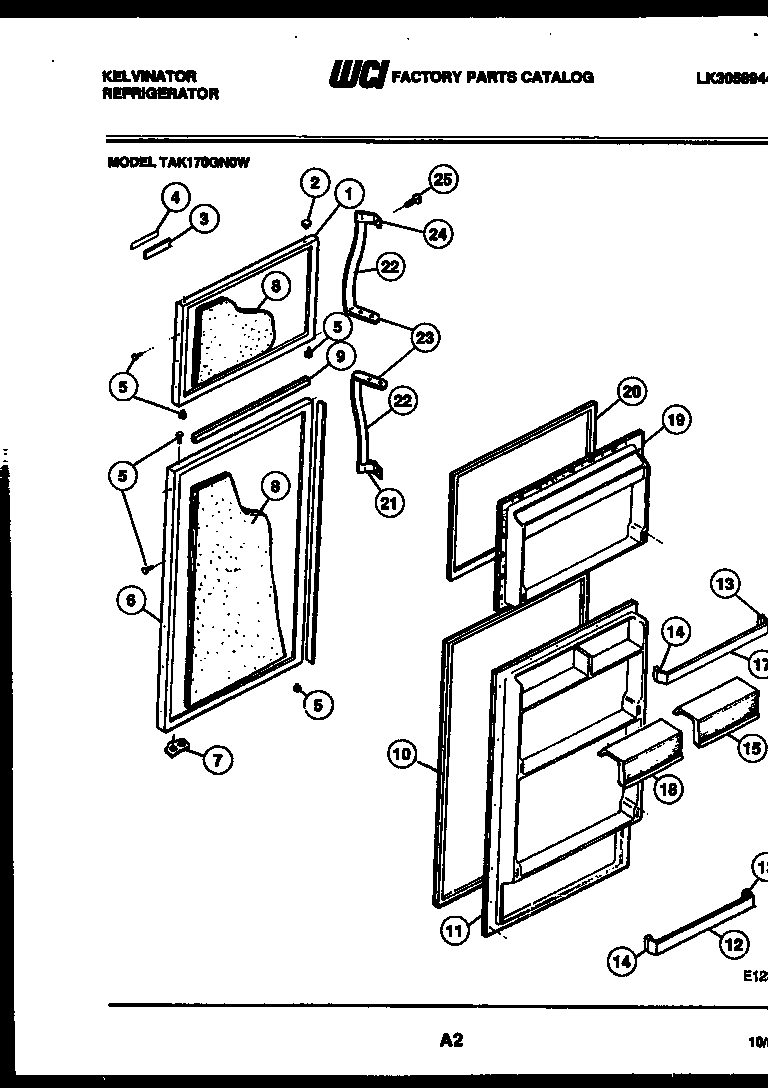

TAK170GN0F 02 – DOOR PARTS

Products

Position	Product
1	WCI 3916296
2	WCI G169332-10
3	NAMEPLATE FRAME
3A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
4	LABEL-NAMEPLATE
5	WCI G162977-10
6	REFR DOOR-COFFEE
6A	BEARING, HINGE (3)
7A	STOP, DOOR. PC & FC (2)
8	WCI G89643
9	WCI G189468-12
10	218730603 Frigidaire Door Gasket
11	INNER PANEL
12	WCI 5303206793
13	SUPPORT RS (3)
14	SUPT, RACK, LH PC (2)
15	WCI 5303206791
16A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
16	TRIM, SHELF
17	DOOR RACK-FRZR
18	WCI 5303206790
19	INNER PANEL-FRZR
19A	5304455651 Frigidaire Refrigerator Screw
20	GASKET-FREEZER
21	WCI G189451-01
22A	TRIM INSERT-GRIP (2) (NON-ILLUSTRATED)
22	WCI 3201377
23	END-HANDLE (2)
24	WCI G189452-01
25	WCI G185566
