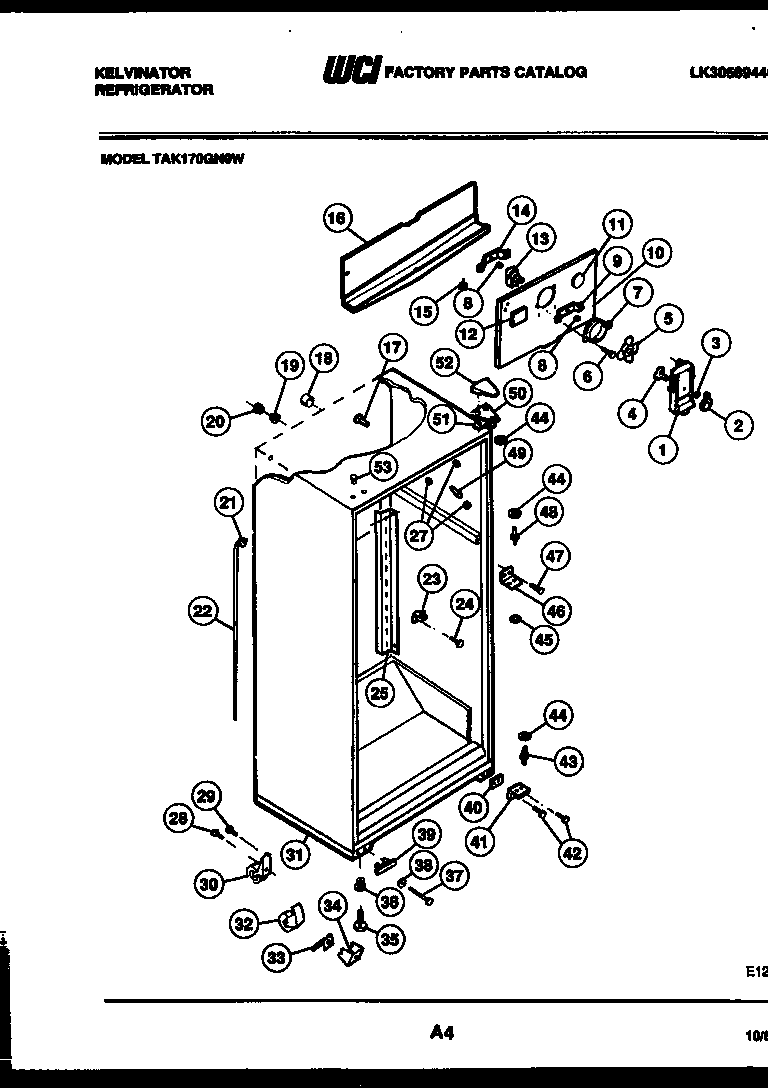

TAK170GN0W 03 – CABINET PARTS

Products

PositionProduct
*93341BUTTON, LINER
1A5304455650 Frigidaire Refrigerator Screw
1WCI G163061-86
2KNOB-DAMPER
3NUT, DAMPER MOUNTING
4DAMPER FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING, FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI G185302
10COVER-COIL
10ANUT, ORIFICE (2)
11PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12BUTTON DECORATIVE PLUG
13WCI G177301
14WCI G185303
15A5304455651 Frigidaire Refrigerator Screw
15WCI G164571
16TROUGH-DRAIN
17WCI G163669
18TUBE, INSULATION (2)
19WCI G174733
20WCI G174734
21RING, SEAL (NON-ILLUSTRATED)
22TUBE, DRAIN
23SPOUT DRAIN TUBE
24PIN PUSH SPOUT (2)
25A5304455852 Frigidaire Refrigerator Screw
25CHANNEL, SHELF (2)
275304509705 Frigidaire Refrigerator Grommet
27A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
28BOLT ROLLER (2)
30ROLLER, REAR (2)
31CABINET BASE
32ROLLER FRONT, ADJUSTABLE (2)
33SPRING-ROLLER (2)
34SUPPORT, ROLLER (2)
35LEG-LEVELING (2)
36NUT, ANCHOR (2)
37BOLT-ROLLER (2)
38WASHER
39WCI G166912
40SHIM, HINGE
40ATAPPING, PLATE (2)
41BRACKET-HINGE
435303001321 Frigidaire Refrigerator Lower Hinge Pin
44WCI G103903
45WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
46BRACKET, HINGE CENTER
47SCREW, BRACKET MOUNTING (4)
47AWASHER (2)
48WCI G142220
49WCI G179684-01
50BRACKET, TOP HINGE
50A241710601 Frigidaire Refrigerator Screw
51WCI G183861
52COVER HINGE, WHITE
53WCI G174747–01
