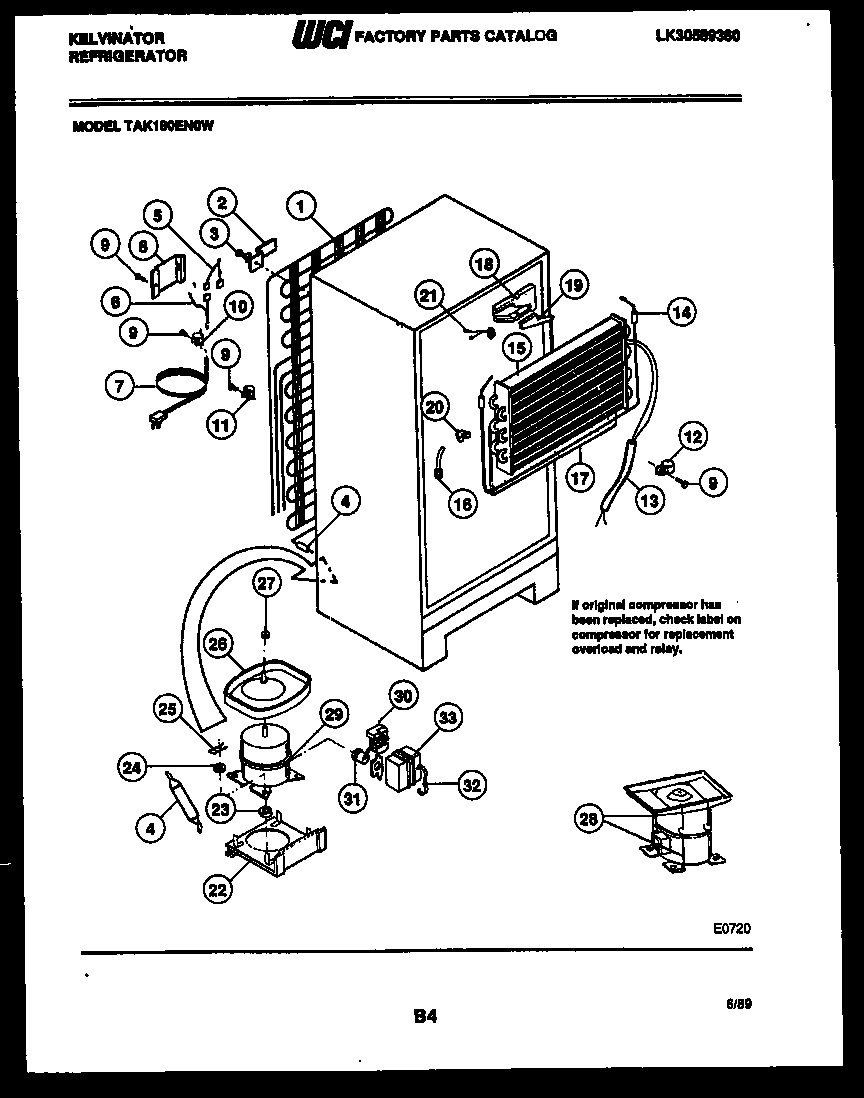

TAK180EN0W 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*86645	WCI G189437
*86644	HOT TUBE REPAIR KIT
1	WCI G162739
2	BRACKET-CONDENSER MOUNTING (4)
3A	WASHER
3	5308000039 Frigidaire Refrigerator Screw
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	HARNESS, WIRING
6	HARNESS-COMPRESSOR
7	CORD, SERVICE
8	WCI G183584
9	5304455651 Frigidaire Refrigerator Screw
10	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
11	240396801 Frigidaire Refrigerator Tube Clamp
13	HEAT-EXCH
14	5317842502 Frigidaire Defrost Heater
15	EVAPORATOR
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	WCI G169024-04
18	BLOCK, EVAPORATOR, RH
19	PLUG, EVAPORATOR INSULATION BLOCK, R H
20	BLOCK, LEFT SIDE
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	PLATE
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WASHER, COMPRESSOR MOUNTING (4)
25	CLIP, COMPRESSOR MOUNTING (4)
26A	DEFROST PAN
26	DEFROST PAN & NUT
26B	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27	NUT, LOCK
28	PAN RETAINER KIT-SERVICE
29	COMPRESSOR WITH ELECTRICALS
30	WCI G182225-12
31	WCI G185797
32	STRAP-COVER
33	WCI G185792
