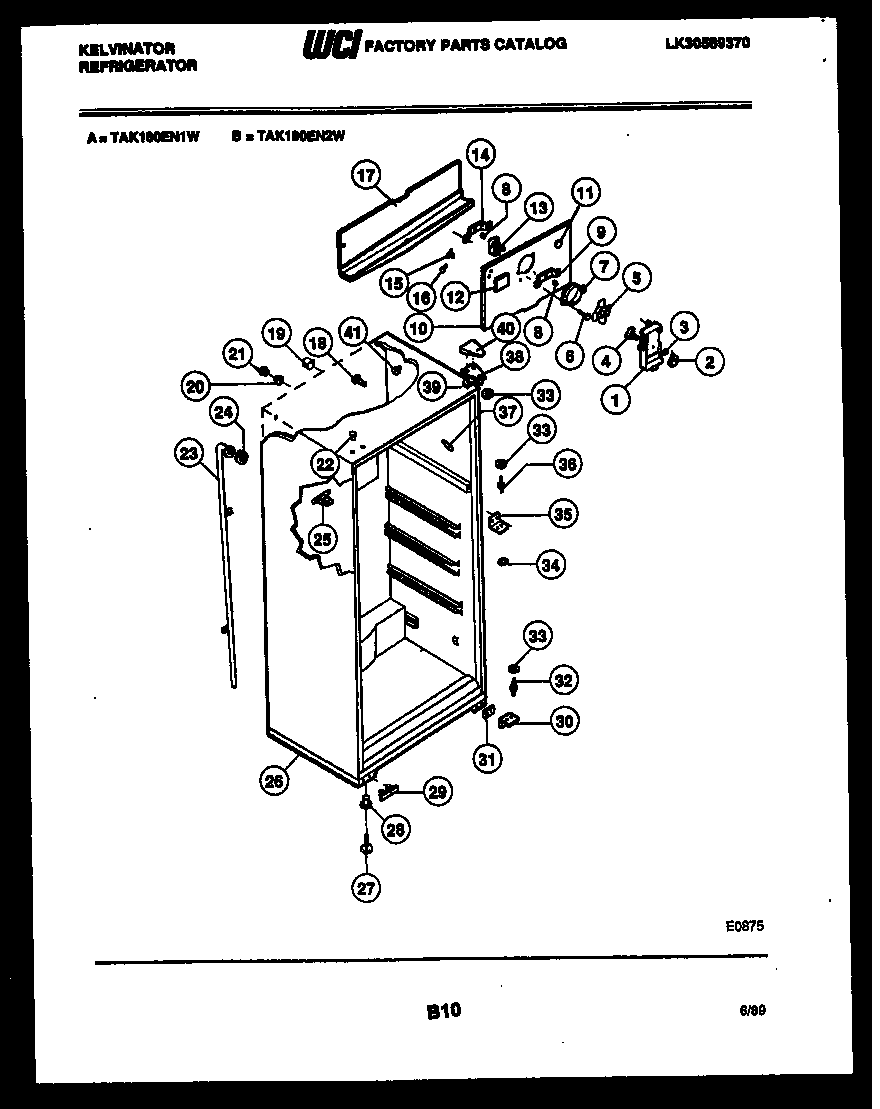

TAK180EN2W 03 – CABINET PARTS

TAK180EN2W 03 – CABINET PARTS

Written by

in

TAK180EN2W 03 – CABINET PARTS

Products

PositionProduct
*873145304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*87315BUTTON, LINER
1WCI 3015421
2KNOB-DAMPER CONTROL
3NUT, DAMPER MOUNTING
4DAMPER FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING, FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI G185302
10A5304455650 Frigidaire Refrigerator Screw
10BNUT, ORIFICE (2)
10WCI G177529
11PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12BUTTON DECORATIVE PLUG
135300158289 Frigidaire Evaporator Fan Motor
14WCI G185303
15WCI G164571
165304455651 Frigidaire Refrigerator Screw
17WCI G177534
18WCI G163669
19TUBE, INSULATION (2)
20WCI G174733
21WCI G174734
22WCI G174747–01
23TUBE, DRAIN
24RING, SEAL (NON-ILLUSTRATED)
25APIN PUSH SPOUT (2)
25SPOUT DRAIN TUBE
26WCI G490004-02
27LEG-LEVELING (2)
28NUT, ANCHOR (2)
29WCI G166912
30BRACKET-HINGE
31SHIM, HINGE
31ATAPPING, PLATE (2)
325303001321 Frigidaire Refrigerator Lower Hinge Pin
33WCI G103903
34WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
35BRACKET, HINGE CENTER
35ASCREW, BRACKET MOUNTING (4)
36WCI G142220
37WCI 3202336
38A241710601 Frigidaire Refrigerator Screw
38BRACKET, TOP HINGE
38BTAPPING PLATE (2)
39WCI G183861
40COVER HINGE, WHITE
415304509705 Frigidaire Refrigerator Grommet
