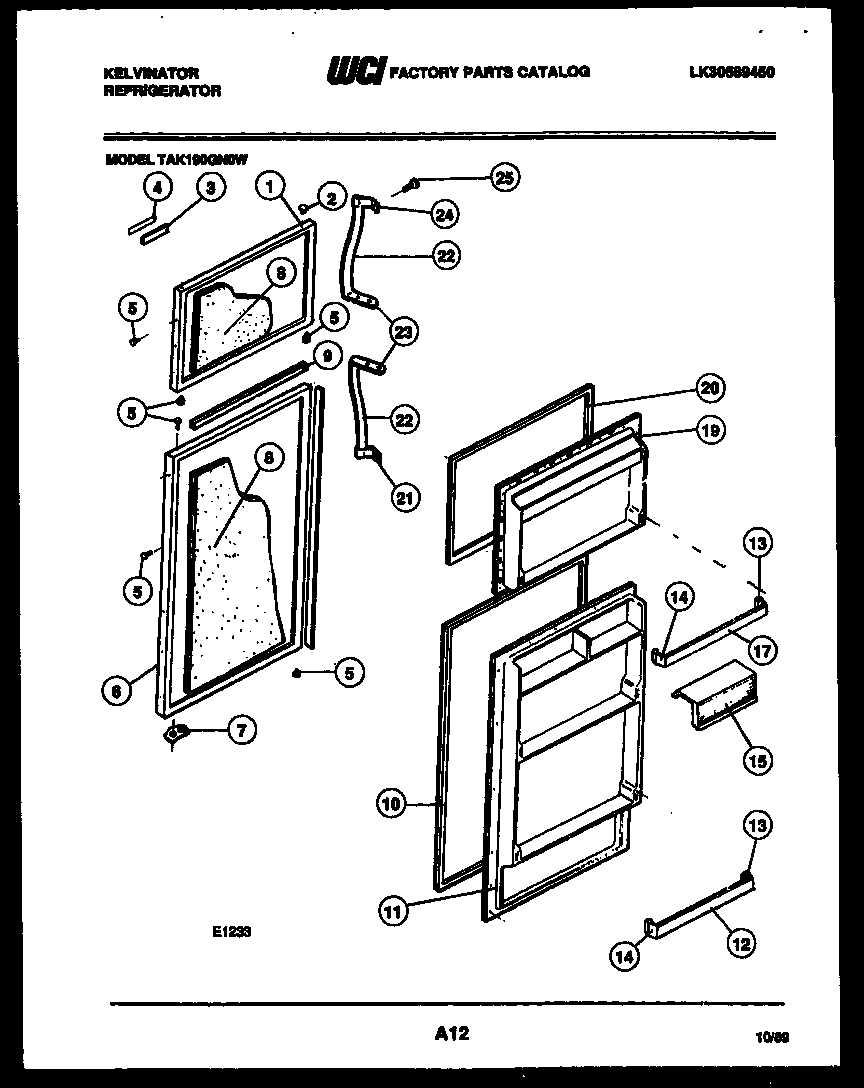

TAK190GN0D 02 – DOOR PARTS

Products

Position	Product
1	WCI 3916272
2	WCI G169332-11
3A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
3	NAMEPLATE FRAME
4	LABEL-NAMEPLATE
5	WCI G162977-11
6A	BEARING, HINGE (3)
6	WCI 3916377
7A	STOP, DOOR. PC & FC (2)
8	WCI G89643
9	TRIM-REFRIGERATOR DOOR
10	GASKET
11	WCI 5303206569
12	WCI 5303206798
13	SUPPORT RS (3)
14	SUPPORT LS (3)
15	WCI 5303206790
17	WCI 5303206797
19A	5304455651 Frigidaire Refrigerator Screw
19	PANEL-INNER DOOR, FRZR
20	GASKET
21	WCI G189451-01
22	WCI 3201377
22A	TRIM INSERT-GRIP (2) (NON-ILLUSTRATED)
23	END-HANDLE (2)
24	WCI G189452-01
25	WCI G185566
