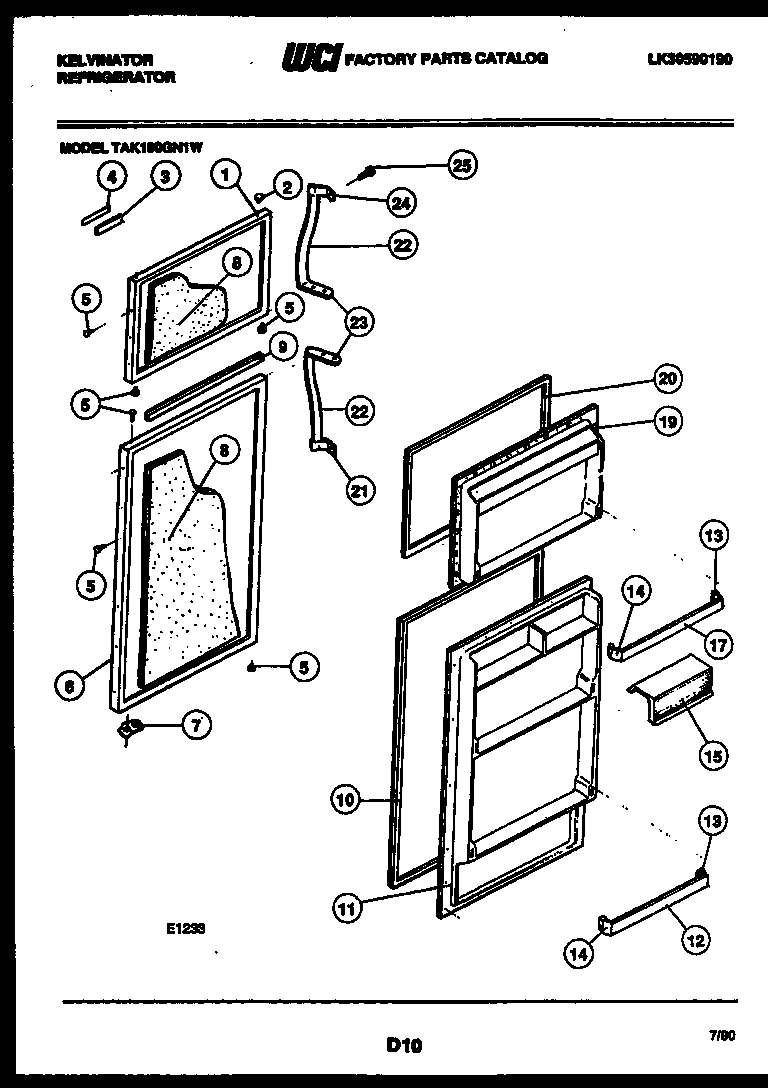

TAK190GN1D 02 – DOOR PARTSadmin2025-04-26T10:17:50+00:00TAK190GN1D 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | WCI 3916272 |
| 2 | PLUG-BUTTON, ALMOND, HINGE BRG HOLE |
| 3A | TAPE, ADHESIVE, 60`` LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC |
| 3 | NAMEPLATE FRAME |
| 4 | LABEL-NAMEPLATE |
| 5 | PLUG-BUTTON, ALMOND, HANDLE/DR STOP |
| 6A | BEARING-HINGE |
| 6 | REFR DOOR-ALMOND |
| 7A | WCI 5308000255 |
| 8 | INSULATION-BULK (NON-ILLUSTRATED) |
| 9 | TRIM-REFRIGERATOR DOOR |
| 10 | GASKET-REFRIG DOOR |
| 11 | WCI 5303206569 |
| 12 | WCI 3016559 |
| 13 | WCI 5303007295 |
| 14 | WCI 5303007297 |
| 15 | WCI 5303206790 |
| 17 | WCI 5303206797 |
| 19 | PANEL-INNER DOOR, FRZR |
| 19A | 218843801 Frigidaire Refrigerator Screw |
| 20 | WCI 5303001486 |
| 21 | HANDLE, END-BOTTOM |
| 22A | TRIM INSERT-GRIP (2) |
| 22 | WCI 5303201377 |
| 23 | WCI 5318945301 |
| 24 | HANDLE END-TOP |
| 25 | WCI 5308011745 |
