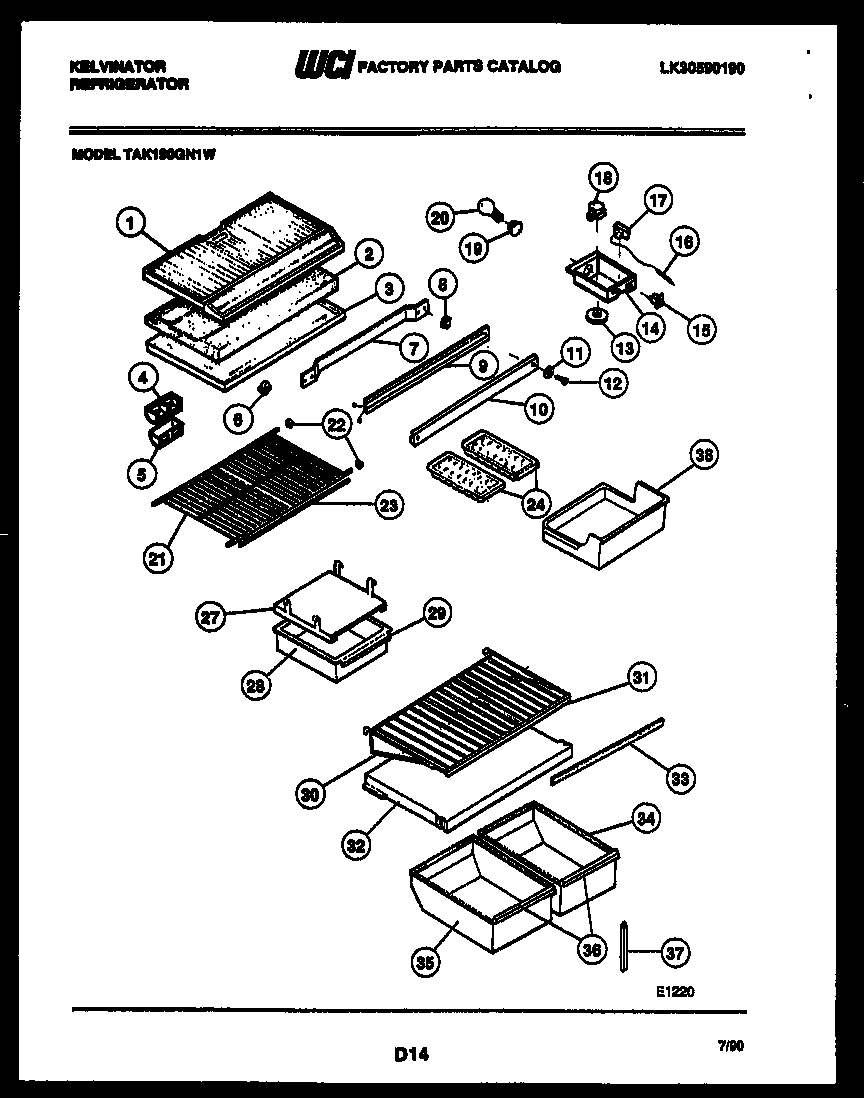

TAK190GN1D 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI 5303001505
2	DIVIDER, STYROFOAM
2A	HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
3	TOP PANEL-REFR, W/SNAP BUSHING
3A	WCI 5303001380
4	DEFLECTOR-AIR
5	COVER – AIR DEFLECTOR
6	5309918806 Frigidaire Refrigerator Light Switch Door
7	WCI 5308010008
8	SPACER-MULLION MTG, STEEL
9	WCI 5303210351
10	WCI 5303200370
11	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
12	WCI 5308012258
13	WCI 5308010011
14	WCI 5317672203
14A	LABEL
14B	5304455650 Frigidaire Refrigerator Screw
15	SWITCH-ENERGY SAVER, SLIDE TYPE
16	TUBE
17A	WCI 5303001260
17	WCI 5303200810
18A	5304455649 Frigidaire Refrigerator Screw
18	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
19	SOCKET-LIGHT/LAMP
20	316538904 Frigidaire Oven Lamp Light
21	WCI 5303206583
22	END CAP-SHELF,PROTECTOR
23	WCI 3201186
24	215667501 Frigidaire Refrigerator Ice Tray Primary
27	WCI 5308000263
28	PAN-MEAT
29	WCI G161013-67
30	WCI 5317739006
31	WCI 3201128
32	COVER-CRISPER
33	GASKET COVER (NON-ILLUSTRATED)
34	PAN-CRISPER
35	PAN-CRISPER
36	TRIM (2)
37	SUPPORT-CRISPER CVR, ADJUSTABLE
38	WCI G161015-17
