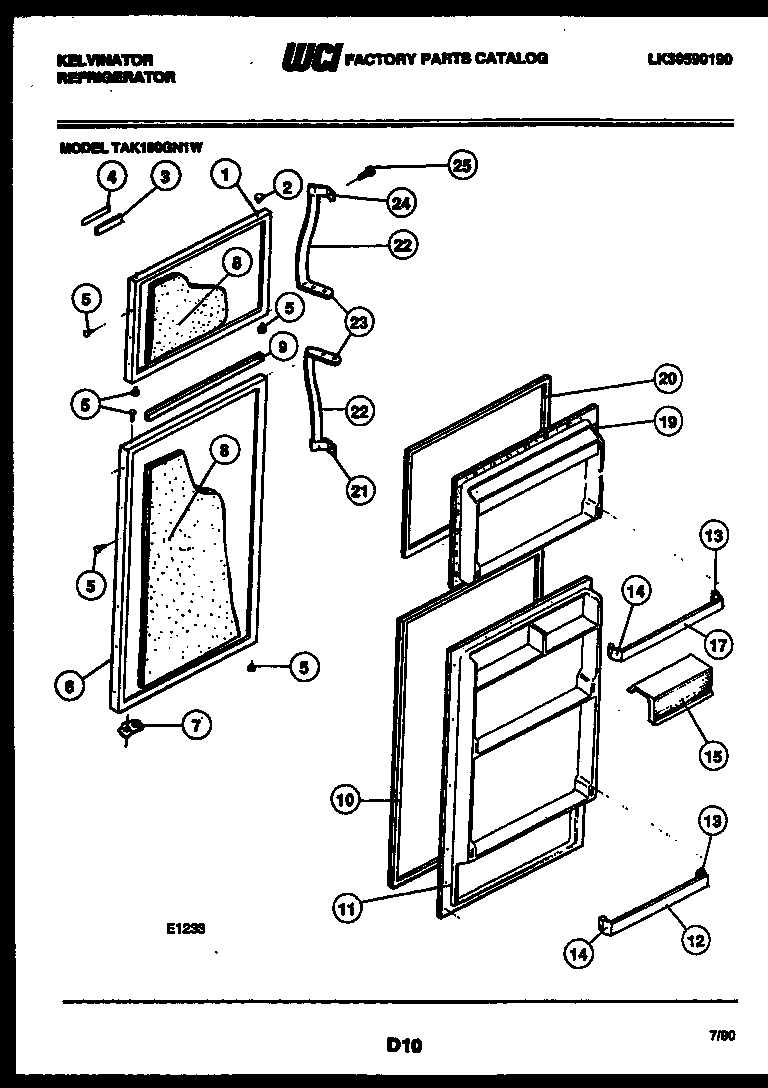

TAK190GN1W 02 – DOOR PARTS

Products

Position	Product
1	WCI 3916268
2	PLUG-BUTTON, WHITE, HINGE BRG HOLE
3A	TAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
3	NAMEPLATE FRAME
4	LABEL-NAMEPLATE
5	240494001 Frigidaire Refrigerator Plug Button
6	REFR DOOR (WHITE)
6A	BEARING-HINGE
7A	WCI 5308000255
8	INSULATION-BULK (NON-ILLUSTRATED)
9	TRIM-REFRIGERATOR DOOR
10	GASKET-REFRIG DOOR
11	WCI 5303206569
12	WCI 3016559
13	WCI 5303007295
14	WCI 5303007297
15	WCI 5303206790
17	WCI 5303206797
19	PANEL-INNER DOOR, FRZR
19A	218843801 Frigidaire Refrigerator Screw
20	WCI 5303001486
21	HANDLE, END-BOTTOM
22A	TRIM INSERT-GRIP (2)
22	WCI 5303201377
23	WCI 5318945301
24	HANDLE END-TOP
25	WCI 5308011745
