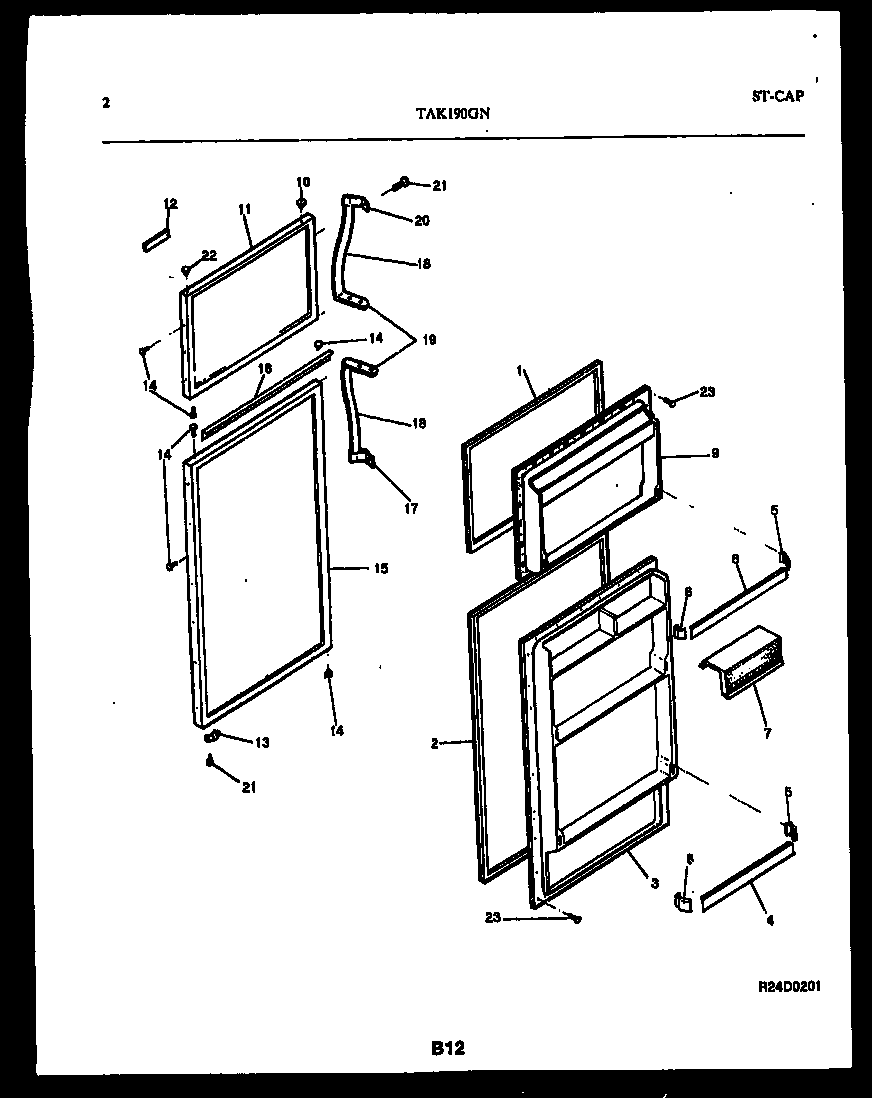

TAK190GN2D 02 – DOOR PARTS

TAK190GN2D 02 – DOOR PARTS

Written by

in

TAK190GN2D 02 – DOOR PARTS

Products

PositionProduct
*18540INSULATION-BULK (NON-ILLUSTRATED)
1WCI 5303001486
2GASKET-REFRIG DOOR
3WCI 5303206569
4WCI 3016559
5WCI 5303007295
6WCI 5303007297
7WCI 5303206790
8WCI 5303206797
9PANEL-INNER DOOR, FRZR
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 3916272
12NAMEPLATE-ASSY
13DOOR STOP, REFR SECTION
13AWCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15REFR DOOR-ALMOND
16TRIM-REFRIGERATOR DOOR
17HANDLE, END-BOTTOM
18WCI 5303201377
18ATRIM INSERT-GRIP (2)
19WCI 5318945301
20HANDLE END-TOP
21WCI 5308011745
22BEARING-HINGE
235304455651 Frigidaire Refrigerator Screw
