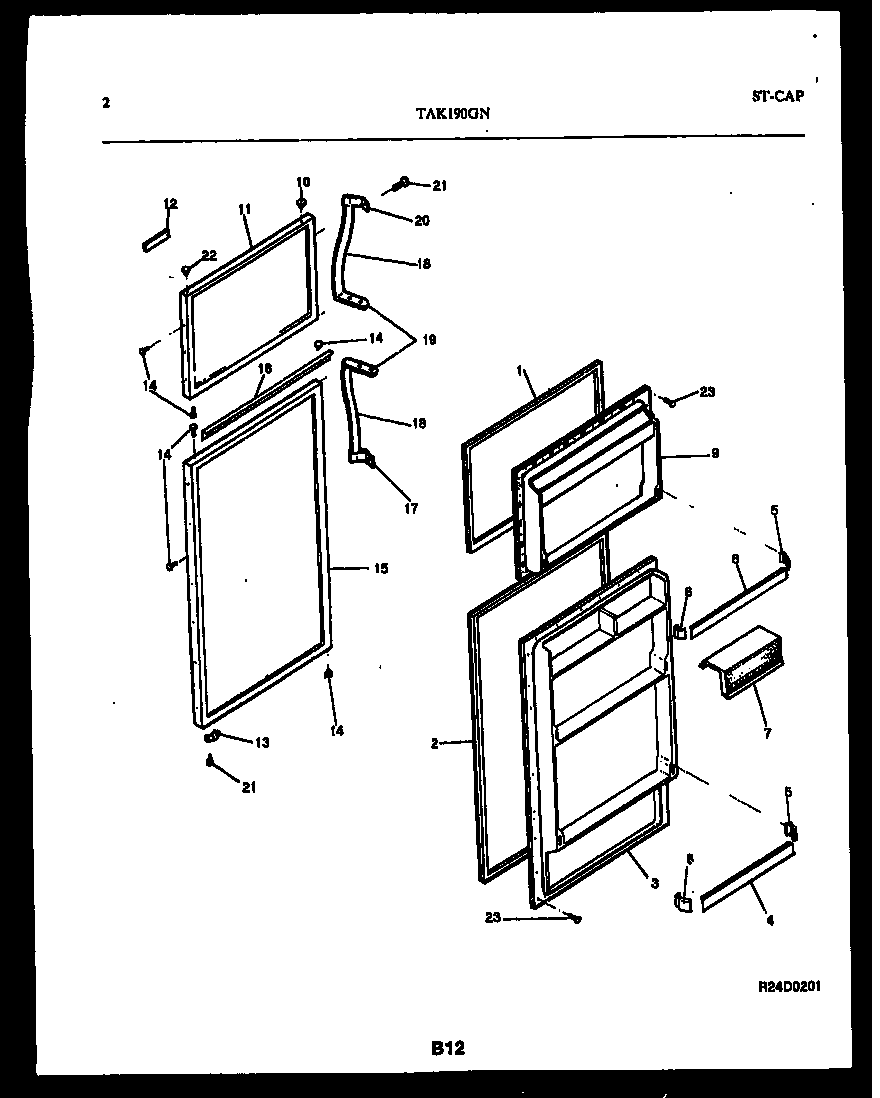

TAK190GN2T 02 – DOOR PARTS

Products

Position	Product
*18540	INSULATION-BULK (NON-ILLUSTRATED)
1	WCI 5303001486
2	GASKET-REFRIG DOOR
3	WCI 5303206569
4	WCI 3016559
5	WCI 5303007295
6	WCI 5303007297
7	WCI 5303206790
8	WCI 5303206797
9	PANEL-INNER DOOR, FRZR
10	BUTTON-WHEAT
11	WCI 3916270
12	NAMEPLATE-ASSY
13A	WCI 5308000255
13	DOOR STOP, REFR SECTION
14	BUTTON-WHEAT
15	REFR DOOR (WHEAT)
16	TRIM-REFRIGERATOR DOOR
17	HANDLE, END-BOTTOM
18A	TRIM INSERT-GRIP (2)
18	WCI 5303201377
19	WCI 5318945301
20	HANDLE END-TOP
21	WCI 5308011745
22	BEARING-HINGE
23	5304455651 Frigidaire Refrigerator Screw
