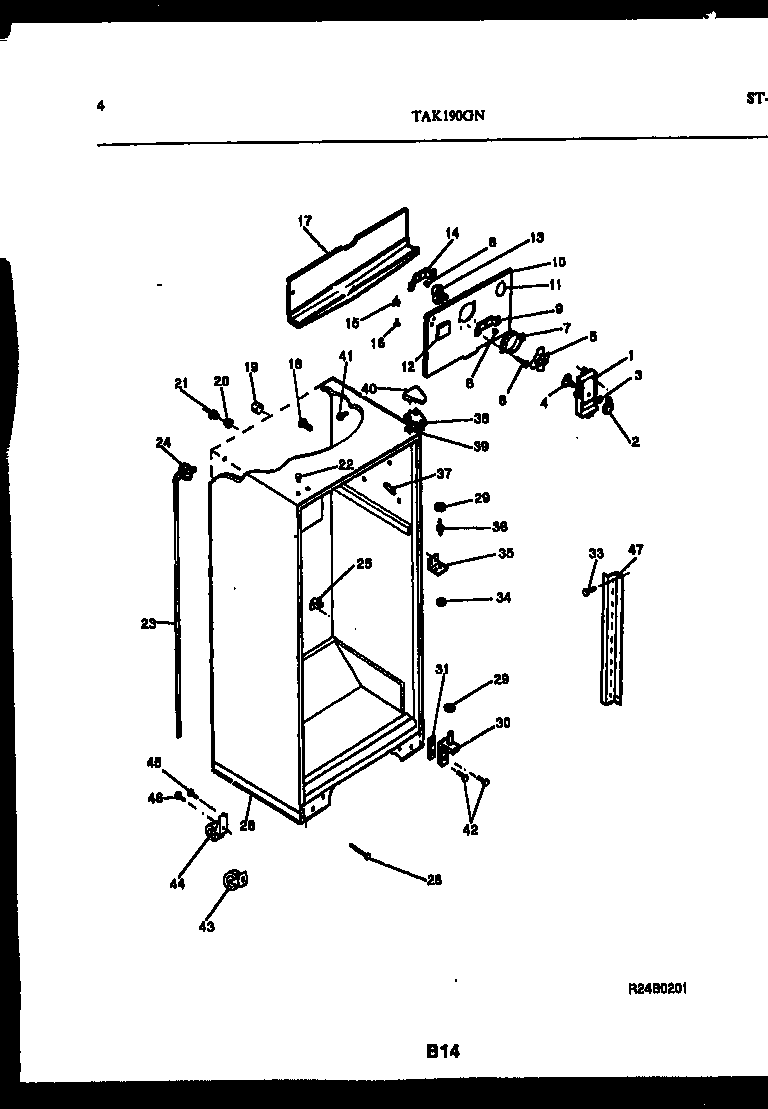

TAK190GN2T 03 – CABINET PARTS

Products

Position	Product
*18544	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
*18544	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
1	WCI 5303271191
1A	5304455650 Frigidaire Refrigerator Screw
2	WCI 5308000081
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	5304455651 Frigidaire Refrigerator Screw
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303001226
10A	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10	WCI 5308009771
11	5303208309 Frigidaire Refrigerator Plug Hole
12	BUTTON – DECORATIVE PLUG
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
15	WCI 5308000107
17	WCI 5303001470
18	SUPPORT-COIL COVER
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	BUTTON-HINGE-WHEAT
23	WCI 5303210377
24	WCI 5303207353
25A	WCI 5303001361
25	WCI 5308000056
26	WCI 5303212487
28	WCI 5303212598
30	BRACKET-LOWER HINGE, W/ HINGE PIN
