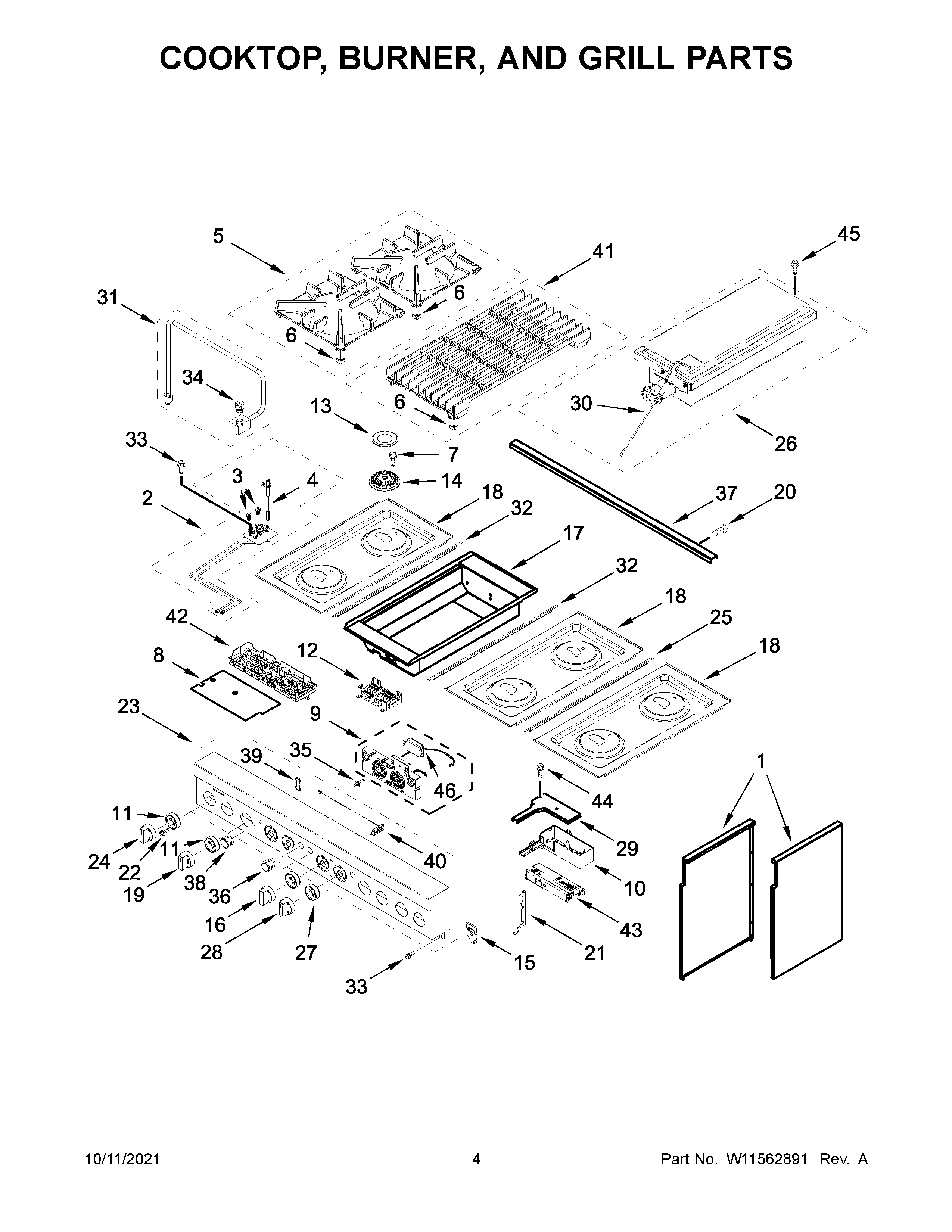

TANKMAN50 03 – COOKTOP, BURNER, AND GRILL PARTS

TANKMAN50 03 – COOKTOP, BURNER, AND GRILL PARTS

Written by

in

TANKMAN50 03 – COOKTOP, BURNER, AND GRILL PARTS

Products

PositionProduct
1PANEL, CABINET SIDE (LEFT)
1APANEL, CABINET SIDE (RIGHT)
2AW11319746 Whirlpool Orifice Holder
2EASSEMBLY, ORIFICE HOLDER (RIGHT REAR)
2DASSEMBLY, ORIFICE HOLDER (RIGHT FRONT)
2W11319741 Whirlpool Orifice Holder
2BASSEMBLY, ORIFICE HOLDER (RIGHT CENTER FRONT)
2CASSEMBLY, ORIFICE HOLDER (RIGHT CENTER REAR)
3DW10892429 Whirlpool Orifice Spud
3CW11661909 Whirlpool Range Orifice Spud
3W11643164 Whirlpool Orifice Spud
3AW10892418 Whirlpool Range Orifice Spud
3BW10892440 Whirlpool Spud Orifice
4AW11238756 Whirlpool Surface Igniter
4W11573760 Whirlpool Surface Igniter
5W11515370 Whirlpool Burner Grate
6W11550692 Whirlpool Bumper
7SCREW
8W11320149 Whirlpool Insulator
9W11492266 Whirlpool Electronic Control Board + Core
10COVER, WIFI OUTER
11BEZEL-KNOB
12W11317945 Whirlpool Electronic Control Board + Core
13W11319224 Whirlpool Burner Cap
14AW11319673 Whirlpool Burner Head
14W11319683 Whirlpool Burner Head
15W11318207 Whirlpool Clip Assembly
16KNOB, OVEN MODE (SMOKE & BRASS FINISH)
17ASSEMBLY, GRILL BOX
18W11316696 Whirlpool Cooktop
18BW11328972 Whirlpool Cooktop
18AW11316697 Whirlpool Range Cooktop
19WPL W11326206
20SCREW
21AW10130759 Whirlpool Mounting Bracket
21W10130760 Whirlpool Bracket Mounting
22W11509770 Whirlpool Screw
23WPL W11327386
24WPL W11326207
25W10271524 Whirlpool Trim Top
26W11328568 Whirlpool Burner Grille
27WPL W11241911
28WPL W11326205
29WPL W11205794
30WPL W11174598
31WPL W11419278
32W10291193 Whirlpool Trim Top
33SCREW
34WPL W11419282
35WP3400814 Whirlpool Screw
36WPL W11327367
37WPL W11327392
38WPL W11327364
39WPL W10896369
40WPL W11326201
41W11515378 Whirlpool Grille Grate
42W11328373 Whirlpool Electronic Control Board + Core
43W11234290 Whirlpool Electronic Control Board
44WPL 7101P62460
45WP3196557 Whirlpool Screw
46W11123146 Whirlpool Speaker
