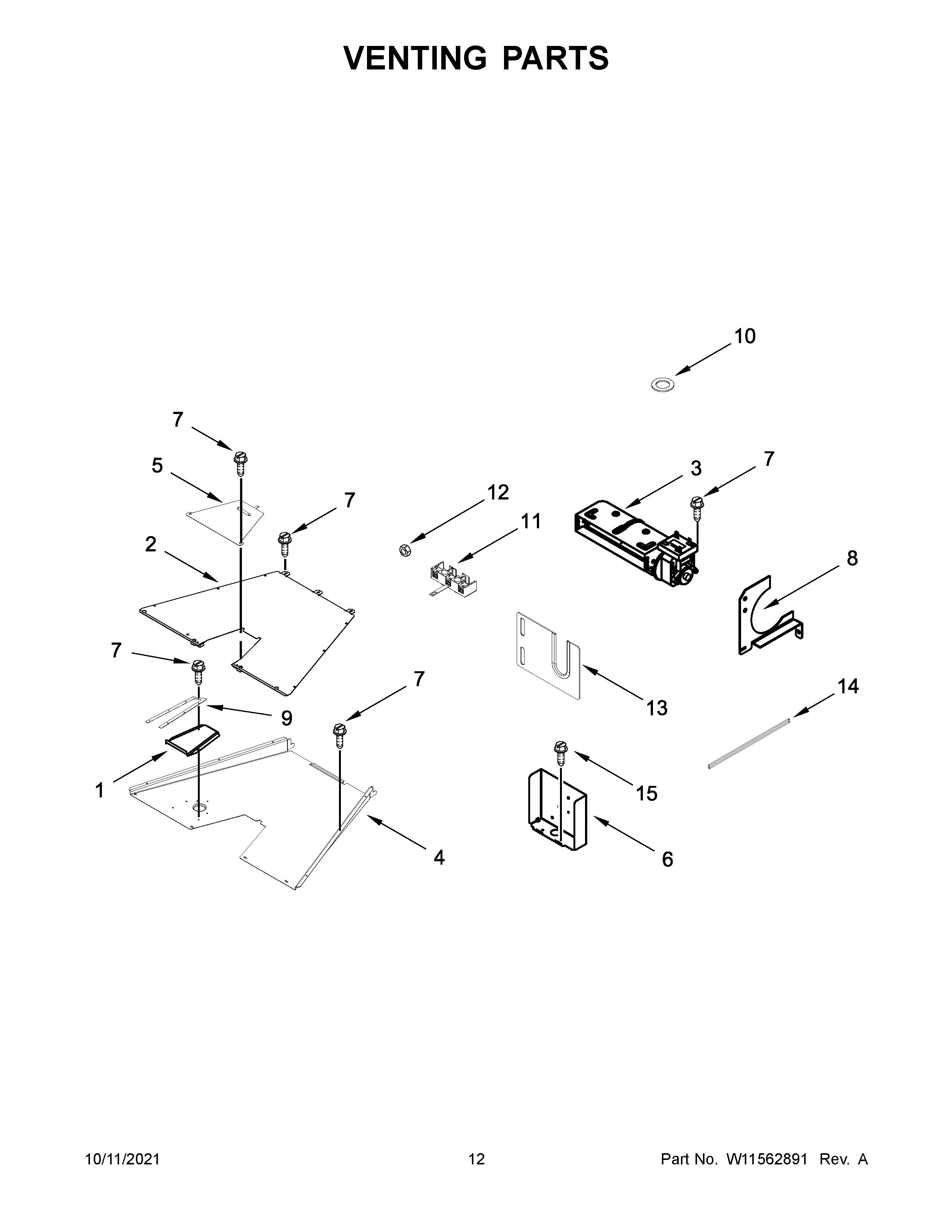

TANKMAN50 07 – VENTING PARTSadmin2025-04-26T11:20:35+00:00TANKMAN50 07 – VENTING PARTS
Products
| Position | Product |
|---|
| 1 | SLOPE, EXHAUST VENT (30") |
| 1A | SLOPE, EXHAUST VENT (18") |
| 2A | VENT, COOLING TOP (18 IN) |
| 2 | VENT, COOLING TOP (30 IN) |
| 3 | W11248652 Whirlpool Blower |
| 4A | VENT, COOLING BOTTOM (18 IN) |
| 4 | VENT, COOLING BOTTOM (30 IN) |
| 5 | PLATE, COOLING LATCH |
| 6 | BOX, TERMINAL |
| 7 | SCREW |
| 8 | BRACKET, BLOWER MOUNT |
| 9 | W10270397 Whirlpool Vent Seal |
| 9A | W10270402 Whirlpool Seal Assembly |
| 10 | SEAL, CHIMNEY |
| 11 | WP9761958 Whirlpool Range Terminal Block |
| 12 | WP112432 Whirlpool Nut Assembly |
| 13 | COVER, CHANNEL |
| 14 | W11175143 Whirlpool Gasket |
| 15 | W11169708 Whirlpool Screw |
